产品名称： Low Pim 4.3/10 Female Flange Connector With Extended Pin
产品名称： Model Number: 4.3/10-KFD

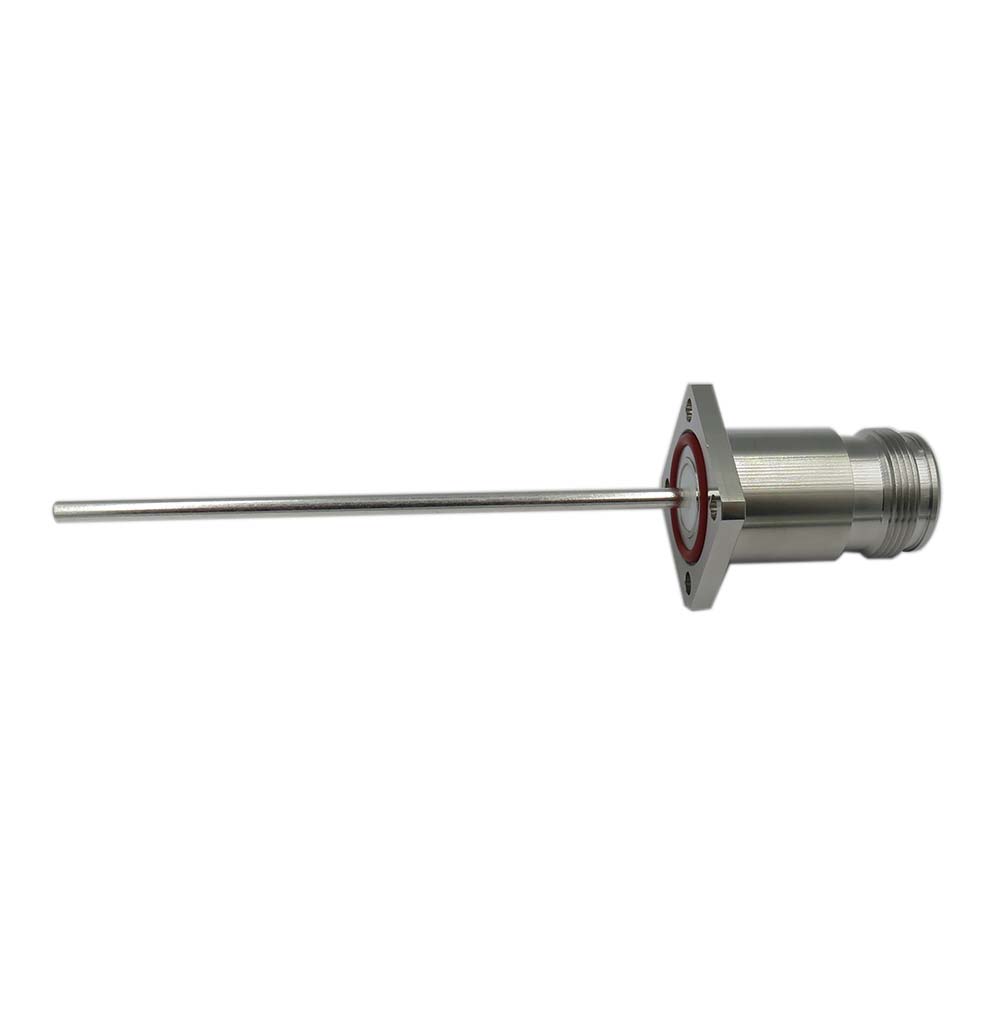

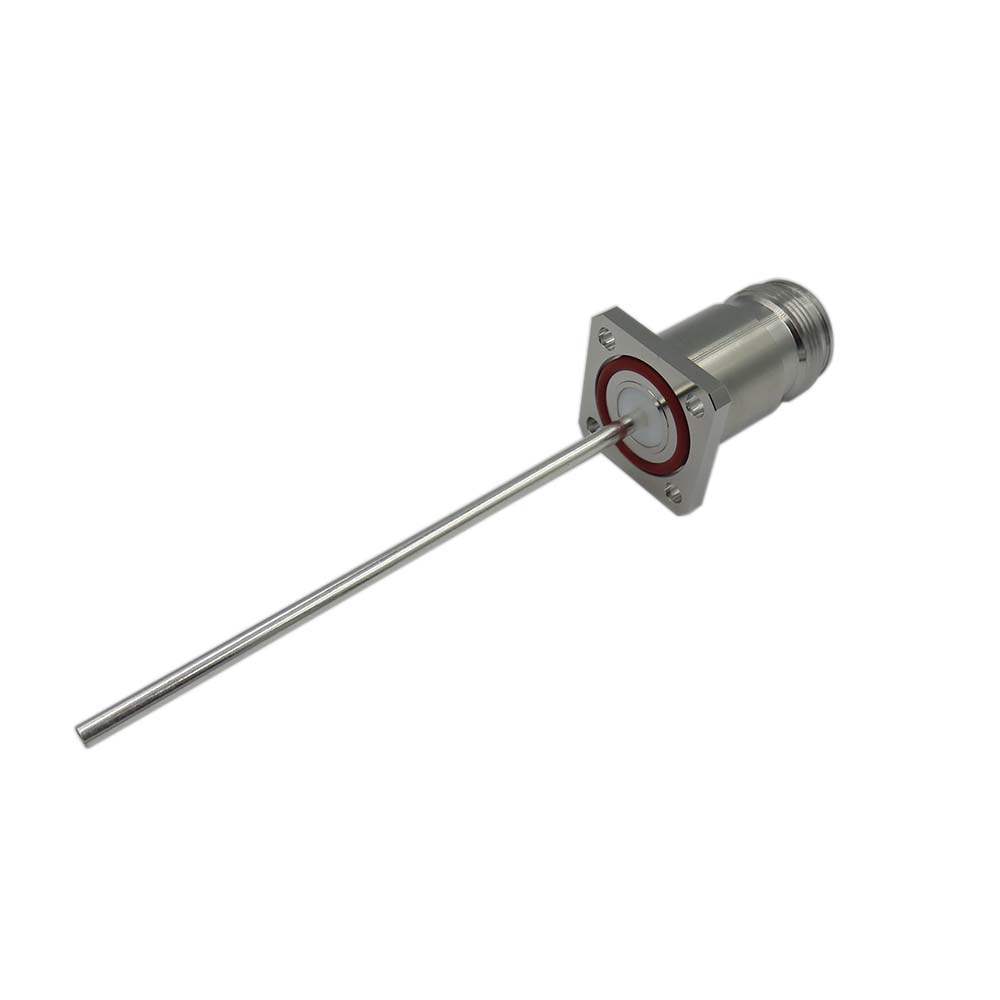

Low Pim 4.3/10 Female Flange Connector With Extended Pin

Model No.	4.3/10-KFD
Interface	IEC61169-54
Electrical
Characteristic Impedance	50ohm
Typical Frequency Range	DC-6GHz
VSWR	≤1.15@DC-6GHz
Intermodulation 3rd order	≤ -160dBc@2×20W
Insertion Loss	≤0.05dB√f(GHz)dB
Dielectric Withstanding Voltage	≥2500V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center contact ≤1mΩ	Outer contact ≤1mΩ
Working voltage	500 V r.m.s
Power handing	500 W @2GHz/90℃
Mechanical
Durability	Mating cycles ≥100
Material and Plating
Parts Name	Material	Plating
Body	Brass	Tri-alloy
Insulator	PTFE	—
Center conductor	Beryllium copper	Ag
Resilient contact	Phosphor copper	Ag
Gasket	Silicone rubber	—
Environmental
Temperature Range	-45℃～+85℃
Weatherproof Rate	IP68
RoHS(2002/95/EC)	Compliant Yes
