  • 产品名称： Waterproof Low Pim 4.3/10 Male Right Angle Connector For RG401(.250") Cable
  • 产品名称： Model Number: 4.3/10-JWB5

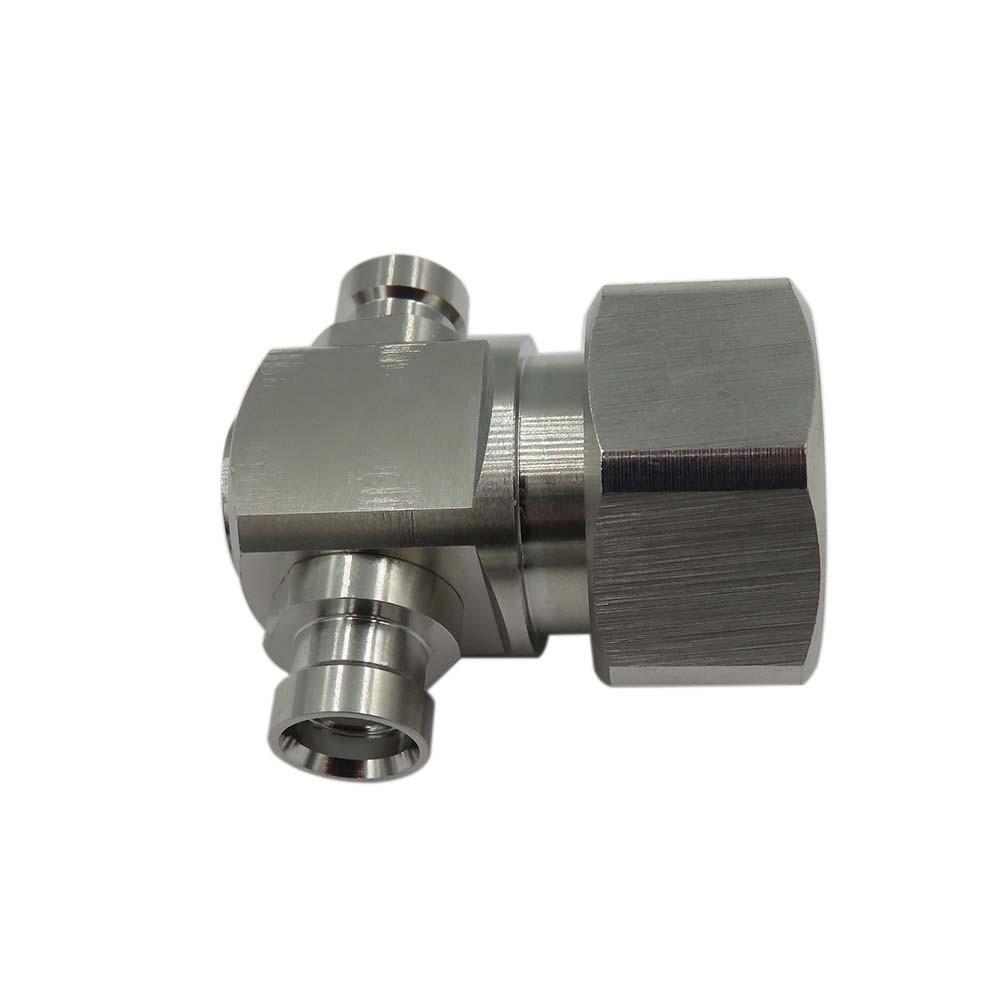

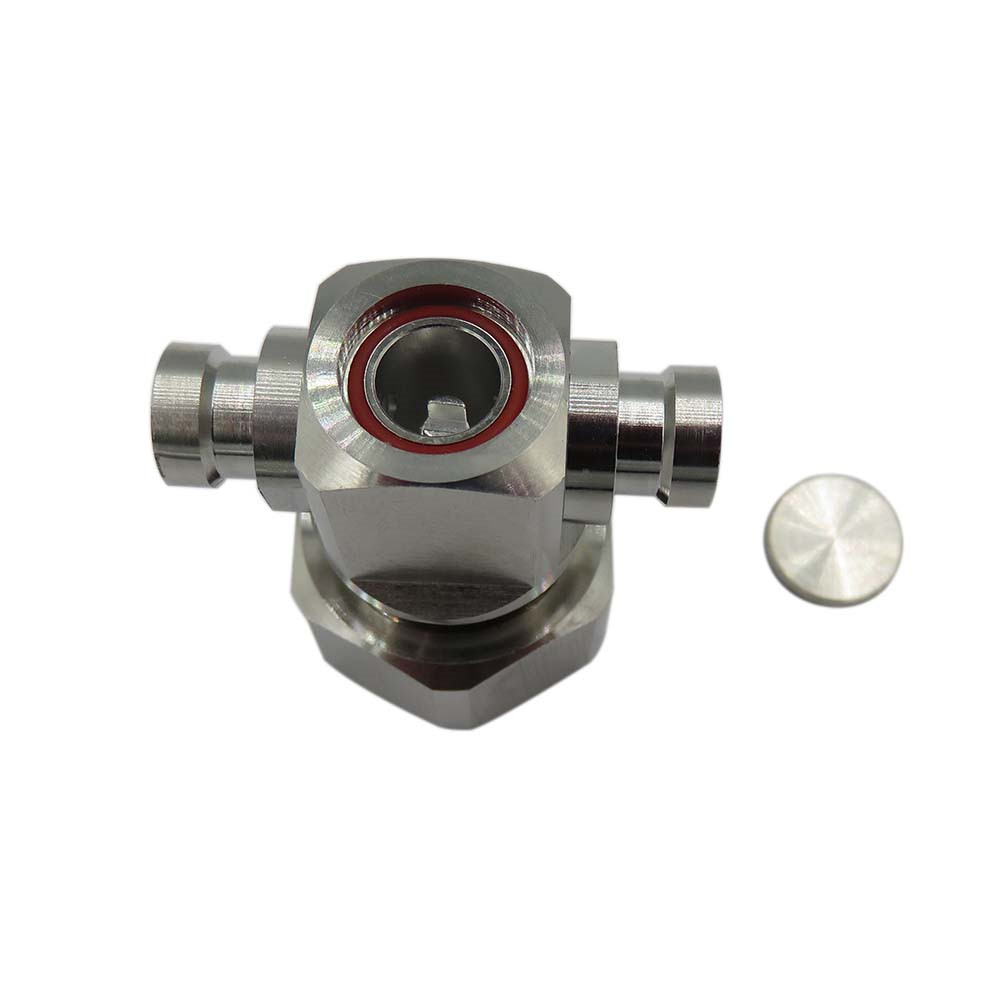

           Waterproof Low Pim 4.3/10 Male Right Angle Connector For RG401(.250") Cable
Model No. 4.3/10-JWB5
Interface IEC61169-54
Electrical
Characteristic Impedance 50ohm
Typical Frequency Range DC-6GHz
VSWR ≤1.2@DC-6GHz
Intermodulation 3rd order ≤ -160dBc@2×20W
Insertion Loss ≤0.05dB√f(GHz)dB
Dielectric Withstanding Voltage ≥2500V RMS,50Hz,at sea level
Dielectric Resistance ≥5000MΩ
Contact Resistance Center contact ≤1mΩ Outer contact ≤1mΩ
Working voltage 500 V r.m.s
Power handing 500 W @2GHz/90℃
Mechanical
Durability Mating cycles ≥100
Material and Plating
Parts Name Material Plating
Body Brass Tri-alloy
Coupling nut Brass Tri-alloy
Insulator PTFE —
Center conductor Phosphor copper Ag
Resilient contact Phosphor copper Ag
Gasket Silicone rubber —
Environmental
Temperature Range -45℃～+85℃
Weatherproof Rate IP68
RoHS Compliant  Yes
