  • 产品名称： 4.3/10 Female Panel Connector For Power Splitter
  • 产品名称： Model Number: 4.3/10-KY-6.9PS

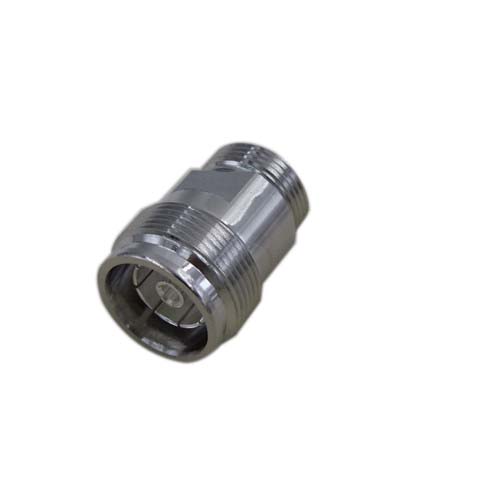

                                           4.3/10 Female Panel Connector For Power Splitter

Model No.  4.3/10-KY-6.9PS
Interface  IEC61169-54
Electrical
Characteristic Impedance   50ohm
Typical Frequency Range                                           DC-12GHz
VSWR            ≤1.10@DC-3GHz; ≤1.20@3-4.2GHz; ≤1.30@4.2-6GHz
Intermodulation 3rd order      ≤ -163dBc@2×20W
Insertion Loss  ≤0.05dB√f(GHz)dB
Dielectric Withstanding Voltage  ≥2500V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center contact ≤1mΩ  Outer contact ≤1mΩ
Working voltage    500 V r.m.s
Power handing    500 W @2GHz/90℃
Mechanical
Durability   Mating cycles ≥500
Material and Plating
Parts Name  Material  Plating
Body  Brass  Tri-alloy
Insulator   PTFE —
Center conductor   Phosphor bronze   Ag
Outer contact     Phosphor bronze   Ag
Environmental
Temperature Range   -45℃～+85℃
Weatherproof Rate       IP67
RoHS(2002/95/EC)    Compliant Yes
