  • 产品名称： Waterproof N Type Male Right Angle Crimp Connector For RG58 Cable D
  • 产品名称： Model Number: N-C-JW3D

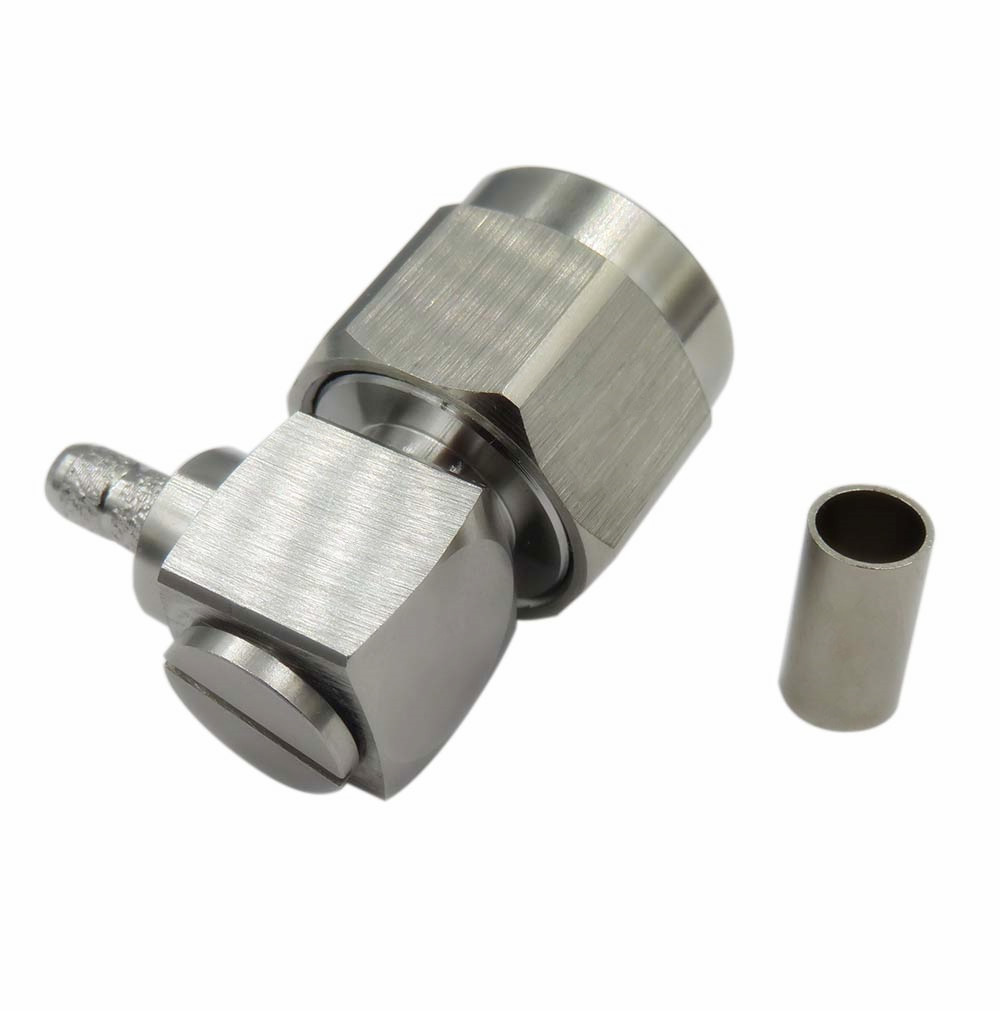

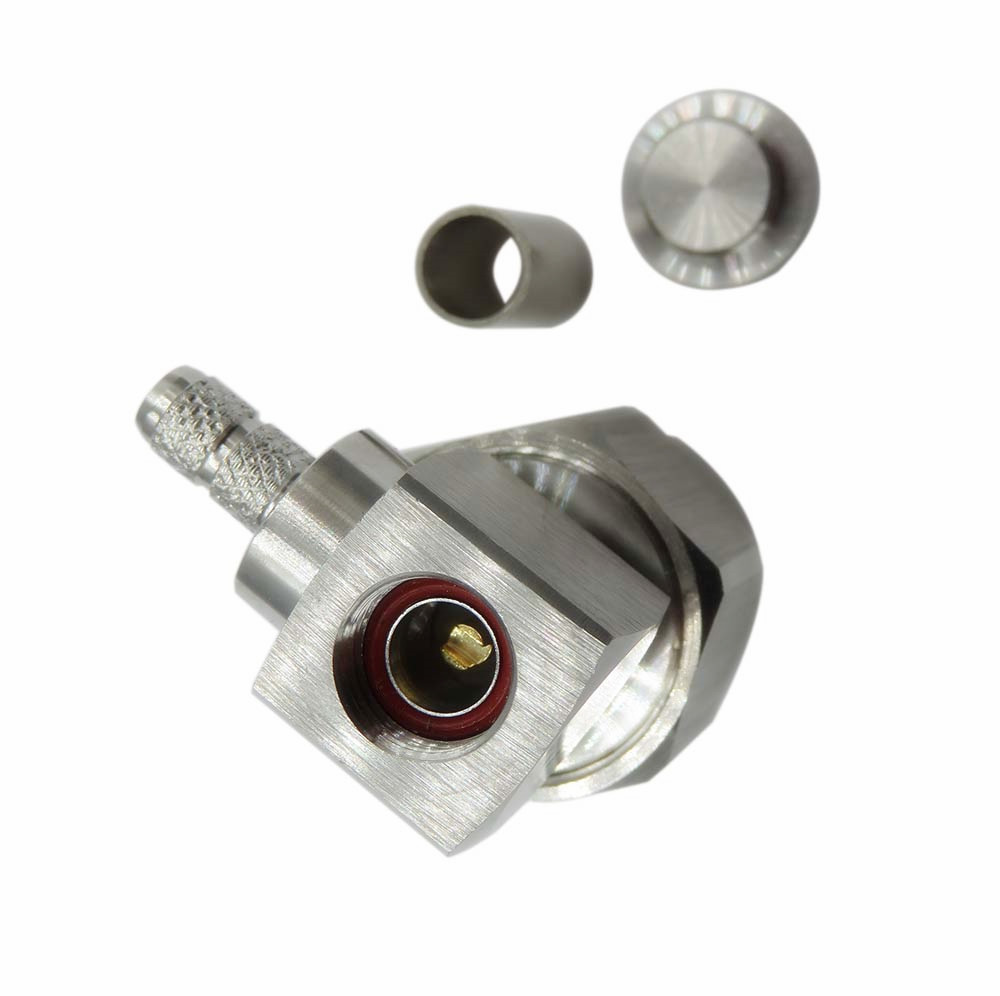

Waterproof N Type Male Right Angle Crimp Connector For RG58 Cable D

(Contact attachment:Inner:soldering ;Outer:crimp)

Model No. N-C-JW3D
Interface IEC 60169-16
Electrical
Characteristic Impedance 50ohm
Frequency Range DC-11GHz
VSWR

≤1.25@DC-3GHz；≤1.35@3-6GHz；

Dielectric Withstanding Voltage ≥2500V RMS,50Hz,at sea level
Working Vlotage ≤1000V RMS,50Hz,at sea level
Dielectric Resistance ≥5000MΩ
Contact Resistance Center Contact ≤1mΩ Outer Contact ≤0.25 mΩ
Mating —
Mechanical
Durability Mating cycles ≥500
Material and Plating
Parts Name Material Plating
Body Brass Tri-alloy
Insulator PTFE —
Center conductor Brass Au
Coupling Nut Brass Tri-alloy
Sealing cap Brass Tri-alloy
Gasket Silicone Rubber —
Ferrule Annealed copper Ni
Environmental
Operating Temperature ﹣40℃-+85 ℃
Weatherproof Rate IP68
RoHS Compliant Yes
