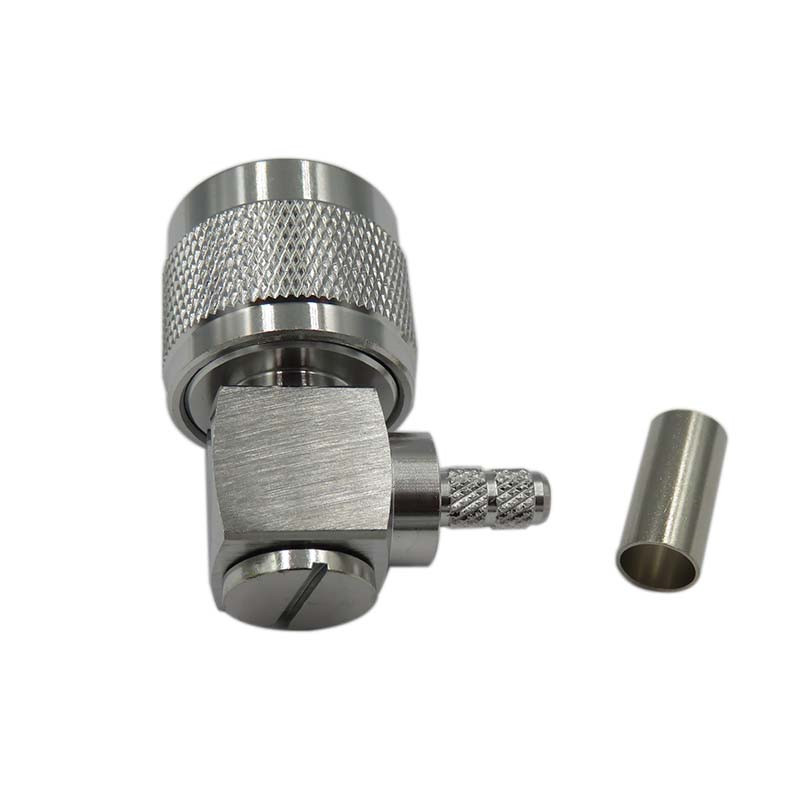

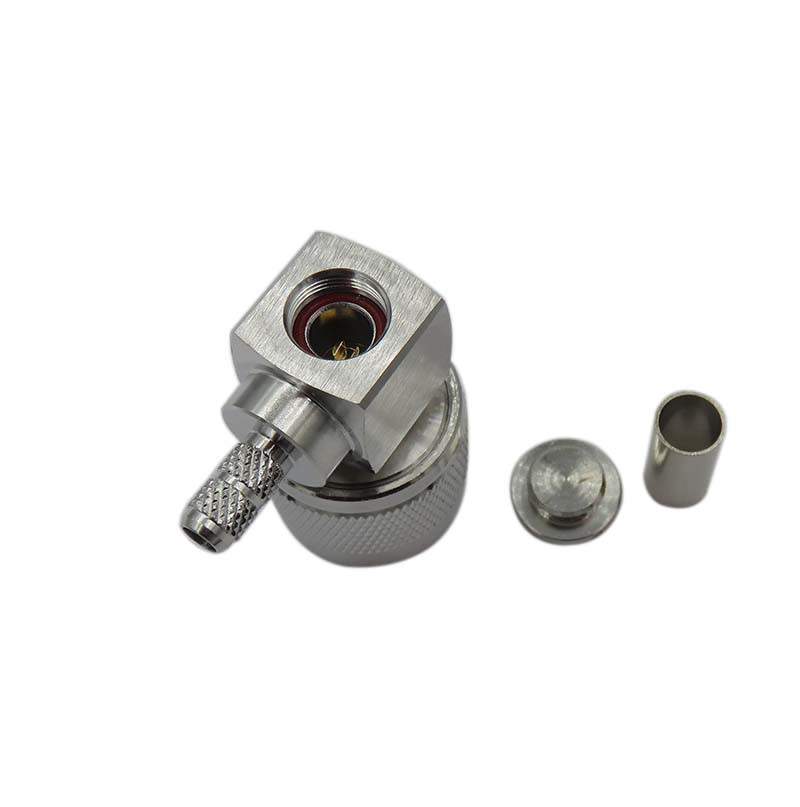

        Waterproof N Type Male Right Angle Crimp Connector For RG58 Cable

               (Contact attachment:Inner:soldering ;Outer:crimp)

Model No.  N-C-JW3C
Interface  IEC 60169-16
Electrical
Characteristic Impedance   50ohm
Frequency Range                                            DC-11GHz
VSWR

≤1.25@DC-3GHz；≤1.35@3-6GHz；

Dielectric Withstanding Voltage ≥2500V RMS,50Hz,at sea level
Working Vlotage  ≤1000V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center Contact ≤1mΩ   Outer Contact ≤0.25 mΩ
Mating  —
Mechanical
Durability   Mating cycles  ≥500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Ni
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Au
Coupling Nut   Brass   Ni
Sealing cap   Brass     Ni
Gasket   Silicone Rubber   —
Ferrule  Annealed copper     Ni
Environmental
Operating Temperature ﹣40℃-+85  ℃
Weatherproof Rate       IP68
RoHS Compliant    Yes
Note:  It can be suited to LMR195,CNT195,RG142 or other equivalent cables.
