  • 产品名称： 2600mm RG402(.141") Jumper Cable Assembly With N Female Flange Connectors On Both Sides
  • 产品名称： Model Number: RG402-NKFB3-NKFB3-2.6M

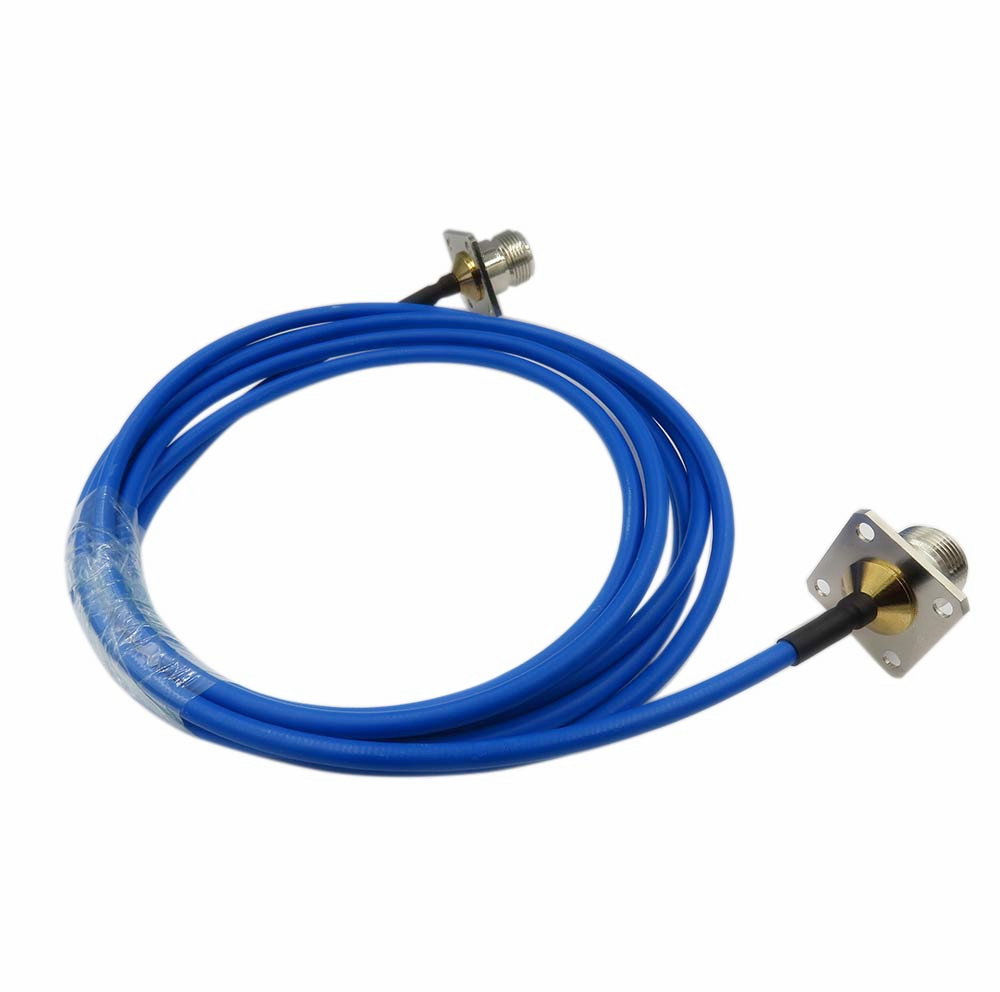

2600mm RG402(.141") Jumper Cable Assembly With N Female Flange Connectors On Both Sides

Model No. RG402-NKFB3-NKFB3-2.6M
Connectors Interface IEC 60169-16
Characteristic Impedance 50 ohm
Tipical Frequency Range DC-6GHz
VSWR ≤1.15@DC-3GHz;≤1.25@3-6GHz;
Dielectric Withstanding Voltage ≥2500V RMS,50Hz,at sea level
Working Voltage ≤1000V RMS,50Hz,at sea level
Dielectric Resistance ≥5000MΩ
Durability ≥500 cycles
Material and Plating (Connectors)
Parts Name Material Plating
Body Brass Ni
Insulator PTFE —
Center conductor Phosphor Bronze Au
Shrinkable tube PE —
Operating Temperature -45 ℃-+85  ℃
Weatherproof Rate IP67
RoHs Compliant Yes
