产品名称： 3000mm RG316 Coaxial Cable Assembly With SMA Male Connectors On Both Sides
产品名称： Model Number:RG316-SMAM-SMAM-3M

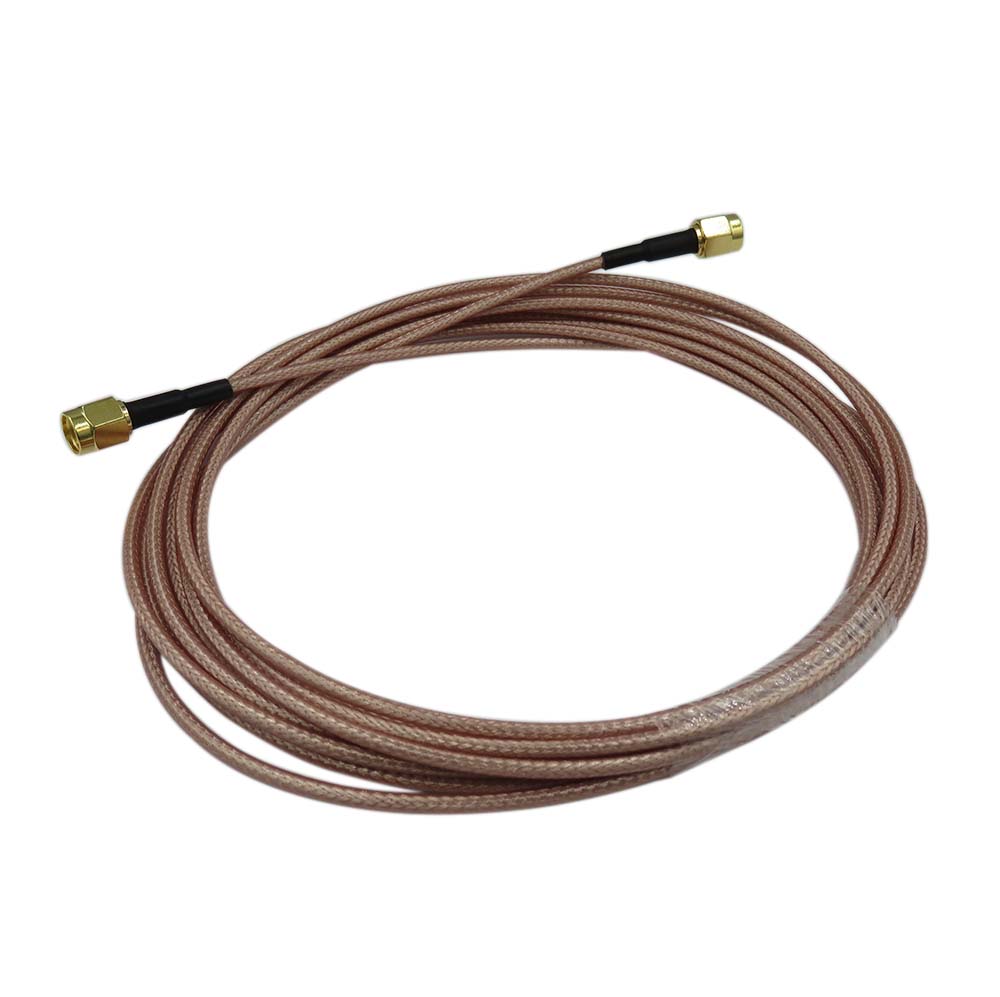

3000mm RG316 Coaxial Cable Assembly With SMA Male Connectors On Both Sides

Model No.	RG316-SMAM-SMAM-3M
Connector Type	SMA male crimp connector for RG316 cable
Connector Type	SMA male crimp connector for RG316 cable
Cable Type(Name)	RG316 Cable
Cable Length	3000mm (Customized Length Available)
Connectors Interface	IEC 60169-15
Characteristic Impedance	50 ohm
Tipical Frequency Range	DC-3GHz
VSWR	≤1.25@DC-3GHz
Insertion Loss	≤5.8dB@3GHz
Durability	≥500 cycles
Material and Plating (Connectors)
Parts Name	Material	Plating
Body	Brass	Au
Insulator	PTFE	—
Center conductor	Brass	Au
Coupling Nut	Brass	Au
Ferrule	Annealed copper	Ni
Gasket	Silicone Rubber	—
Shrinkable tube	PE	—
Operating Temperature	-40℃-+85 ℃
Weatherproof Rate	IP67
RoHs Compliant	Yes
