Location：Home>>Product >> RF Cable Assembly >> RG series cable assembly

产品名称： 700mm RG316D Coaxial Cable Assembly With SMA Male Right Angle Connectors On Both Sides
产品名称： Model Number:RG316D-SMAMR-SMAMR-70CM

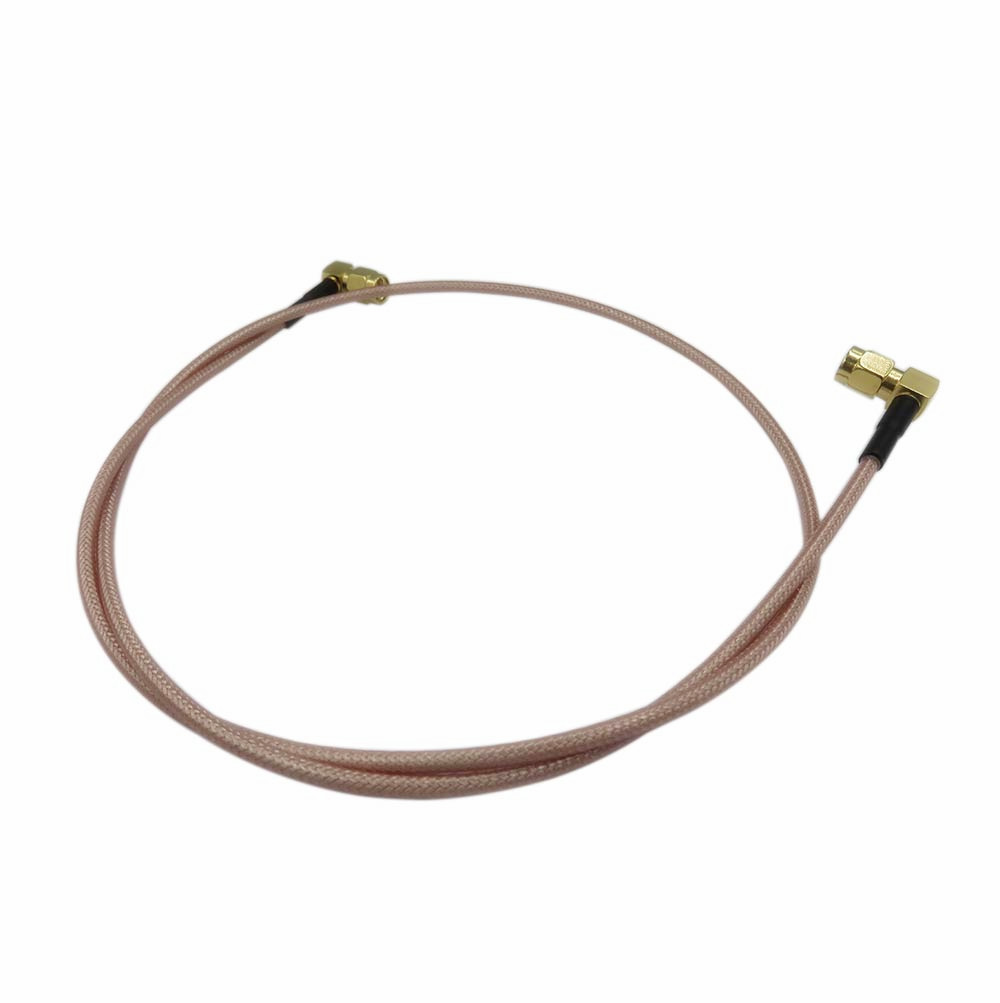

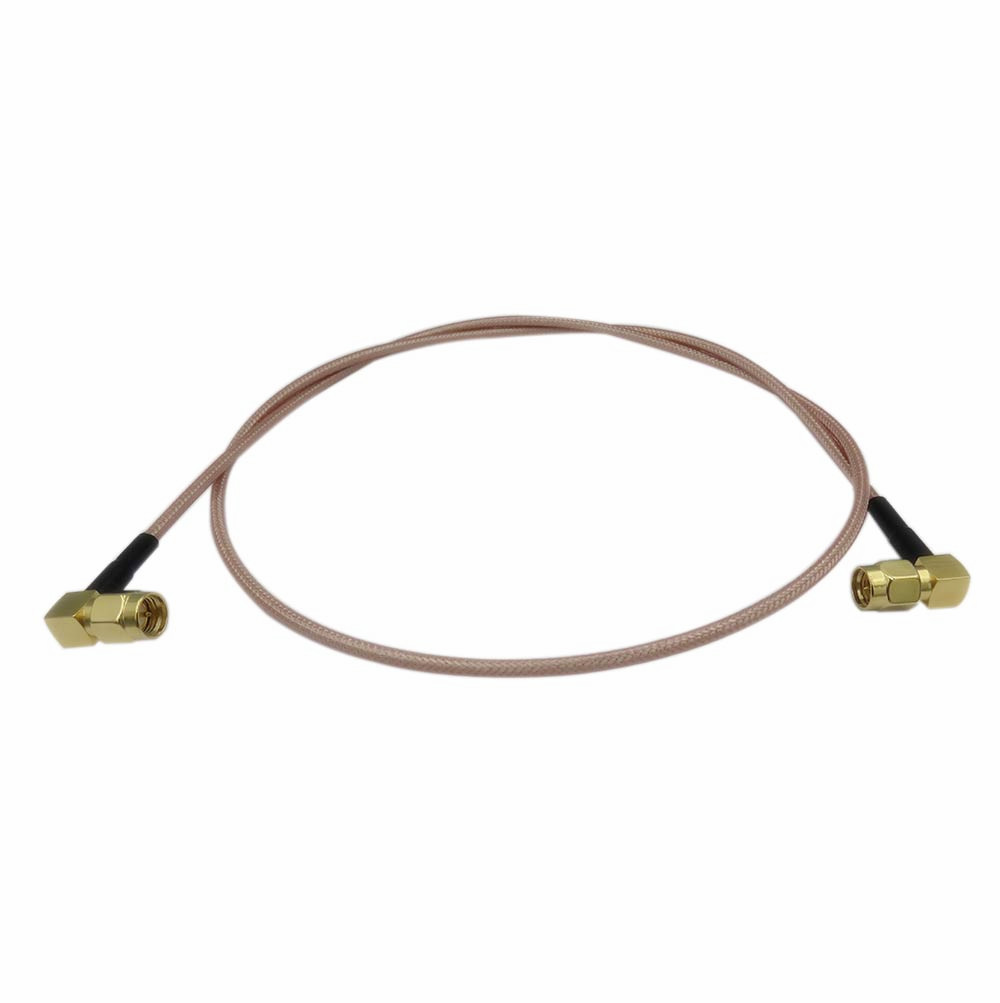

700mm RG316D Coaxial Cable Assembly With SMA Male Right Angle Connectors On Both Sides

Model No.	RG316D-SMAMR-SMAMR-70CM
Cable Type(Name)	RG316D Cable
Connectors Interface	IEC 60169-15
Characteristic Impedance	50 ohm
Tipical Frequency Range	DC-3GHz
VSWR	≤1.25@DC-3GHz
Insertion Loss	≤1.2dB@3GHz
Durability	≥500 cycles
Material and Plating (Connectors)
Parts Name	Material	Plating
Body	Brass	Au
Insulator	PTFE	—
Center conductor	Brass	Au
Coupling Nut	Brass	Au
Ferrule	Annealed copper	Ni
Gasket	Silicone Rubber	—
Shrinkable tube	PE	—
Operating Temperature	-40℃-+85 ℃
Weatherproof Rate	IP67
RoHs Compliant	Yes
