产品名称： 350mm RG316D Coaxial Cable Assembly With SMA Male And SMA Female Bulkhead Connectors
产品名称： Model Number: RG316D-SMAM-SMAFB-35CM

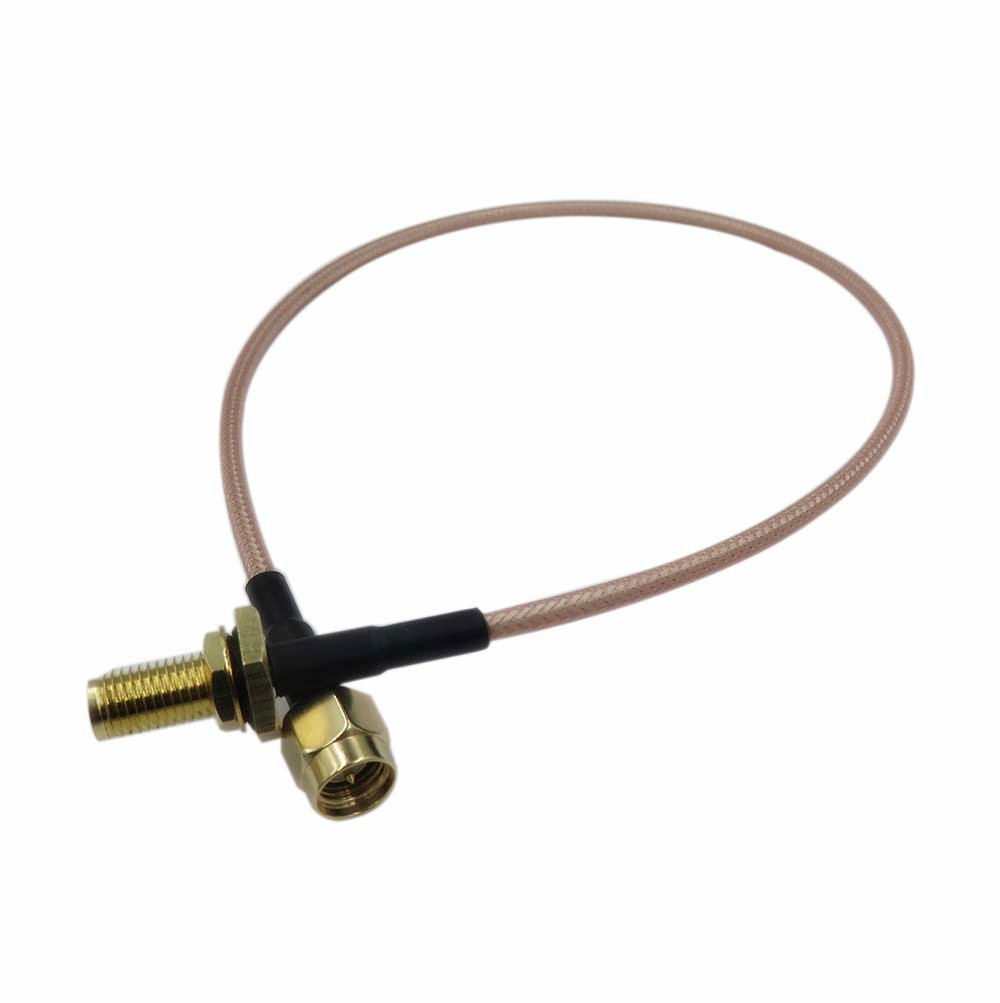

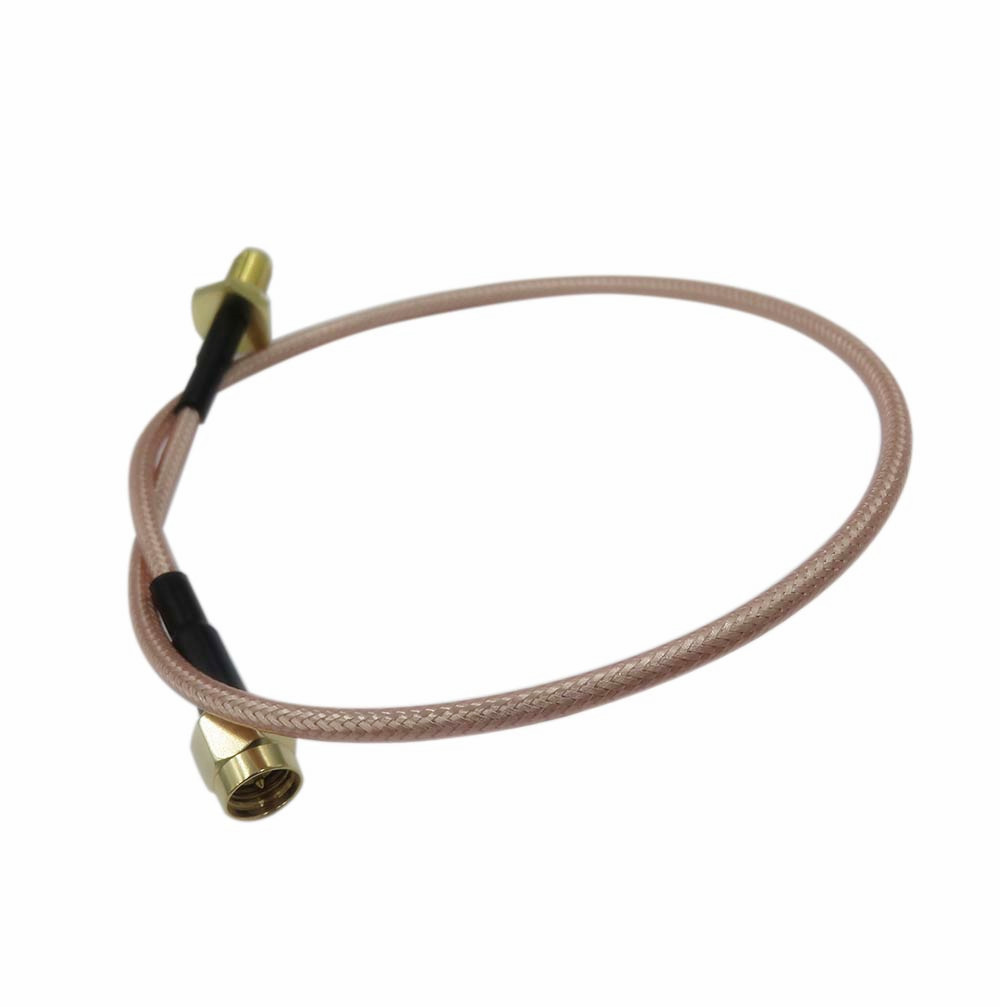

350mm RG316D Coaxial Cable Assembly With SMA Male And SMA Female Bulkhead Connectors

Model No.	RG316D-SMAM-SMAFB-35CM
Cable Type(Name)	RG316D Cable
Connectors Interface	IEC 60169-15
Characteristic Impedance	50 ohm
Tipical Frequency Range	DC-3GHz
VSWR	≤1.25@DC-3GHz
Insertion Loss	≤0.6dB@3GHz
Durability	≥500 cycles
Material and Plating (Connectors)
Parts Name	Material	Plating
Body	Brass	Au
Insulator	PTFE	—
Center conductor	Brass	Au
Coupling Nut	Brass	Au
Ferrule	Annealed copper	Ni
Gasket	Silicone Rubber	—
Shrinkable tube	PE	—
Operating Temperature	-40℃-+85 ℃
Weatherproof Rate	IP67
RoHs Compliant	Yes
