产品名称： SMA RP Male to QMA Female Connector Adaptor
产品名称： Model Number: SMA/QMA-JRK

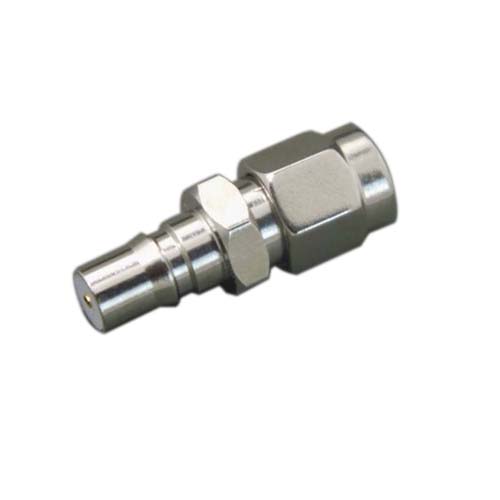

SMA RP Male to QMA Female Connector Adaptor

Model No.	SMA/QMA-JRK
Connector Interface	IEC 60169-15/QMA
Characteristic Impedance	50ohm
Typical Frequency Range	DC- 6GHz
VSWR	≤1.10@DC-3GHz; ≤1.25@3-6GHz
Dielectric Resistance	≥5000MΩ
Dielectric Withstanding Voltage	≥1000V RMS,50Hz,At sea level
Working Voltage	≤480V(QMA side)/ ≤335V(SMA side)
Contact Resistance	Center Contact ≤2.5mΩ	Outer Contact ≤3.0mΩ
Mechanical
Durability	≥100(QMA side)/≥500(SMA side)
Material and Plating
Parts Name	Material	Plating
Body	Brass	Tri-alloy
Insulator	PTFE	—
Center conductor	Phosphor copper	Au
Coupling Nut	Brass	Tri-alloy
Gasket	Silicone Rubber	—
Operating Temperature	＿45 ℃-+ 125 ℃
RoHS Compliant	Yes
