Product
  • 产品名称： 50ohm BNC Male Connector For PCB mount
  • 产品名称： Model Number: BNC-JE

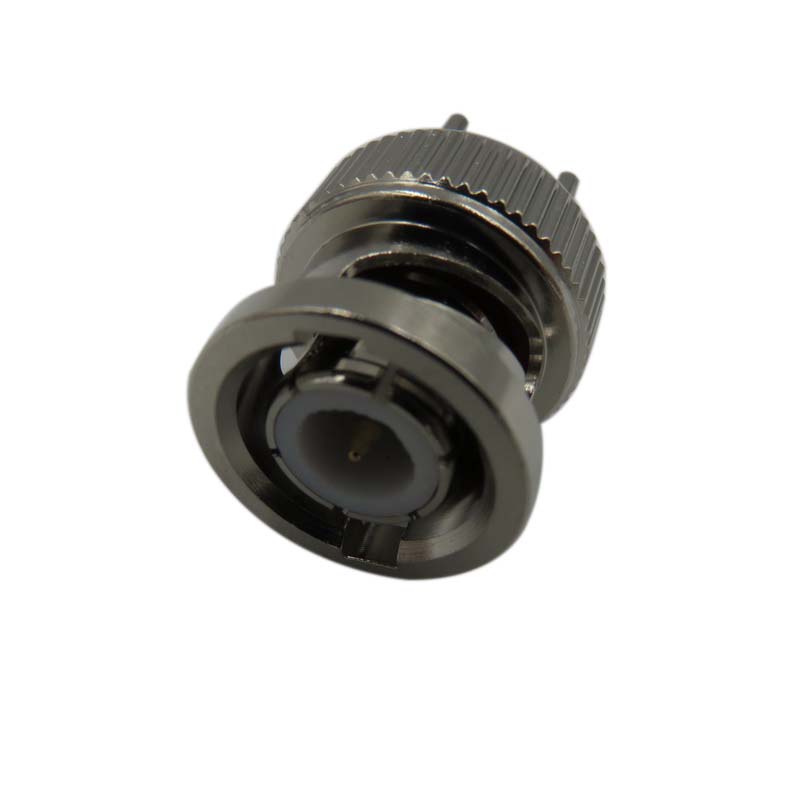

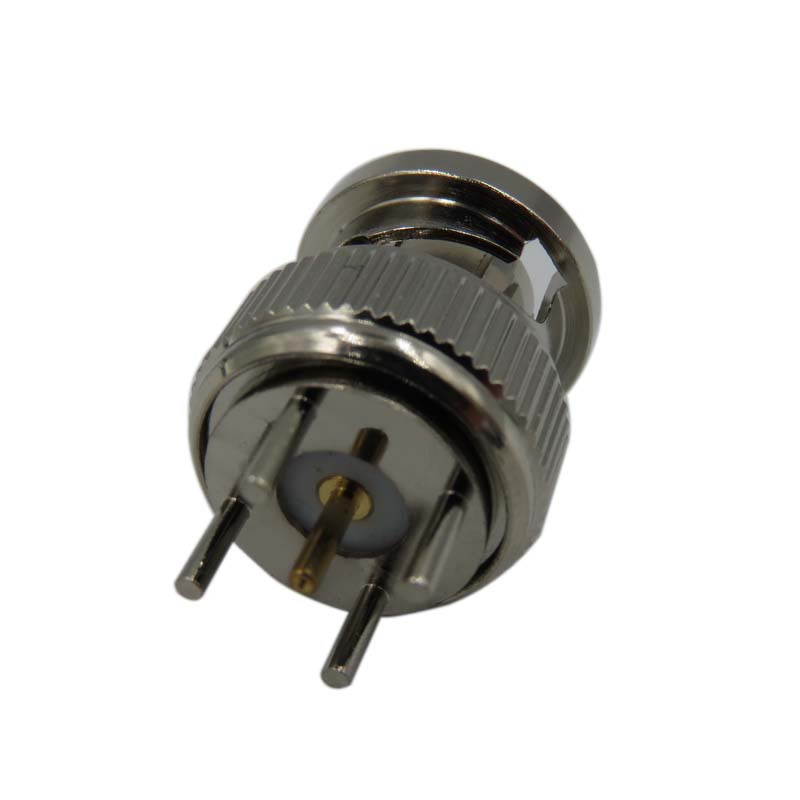

                                 RF Coaxial 50ohm BNC Male Connector For PCB mount

Model No. BNC-JE
Interface IEC 60169-8
Electrical
Characteristic Impedance  50ohm
Frequency Range                                          DC-4GHz
VSWR         ≤1.22
Dielectric Withstanding Voltage ≥1500V RMS,50Hz,at sea level
Working Vlotage  ≤500V RMS,50Hz,at sea level
Dielectric Resistance   ≥5000MΩ
Contact Resistance   Center Contact ≤1.5mΩ   Outer Contact ≤1.0 mΩ
Mating —
Mechanical
Durability   Mating cycles  ≥500
Material and Plating
Parts Name Material  Plating
Body Brass  Ni
Coupling Nut Brass  Ni
Insulator  PTFE —
Center conductor  Phosphor Bronze   Au
Environmental
Operating Temperature -40 ℃～-85  ℃
RoHs Compliant  Yes
