产品名称： 75 ohm L36 Male To L27 Female Adaptor Connector
产品名称： Model Number: L36/L27-75JK

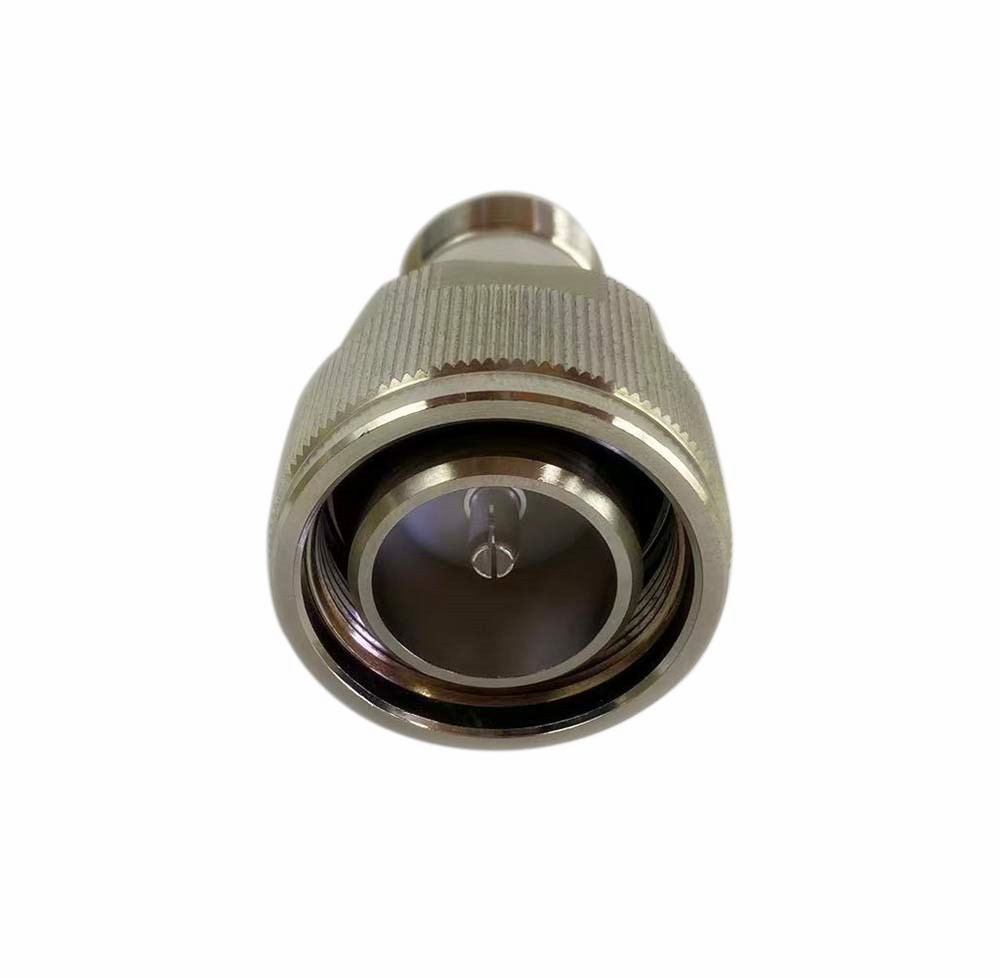

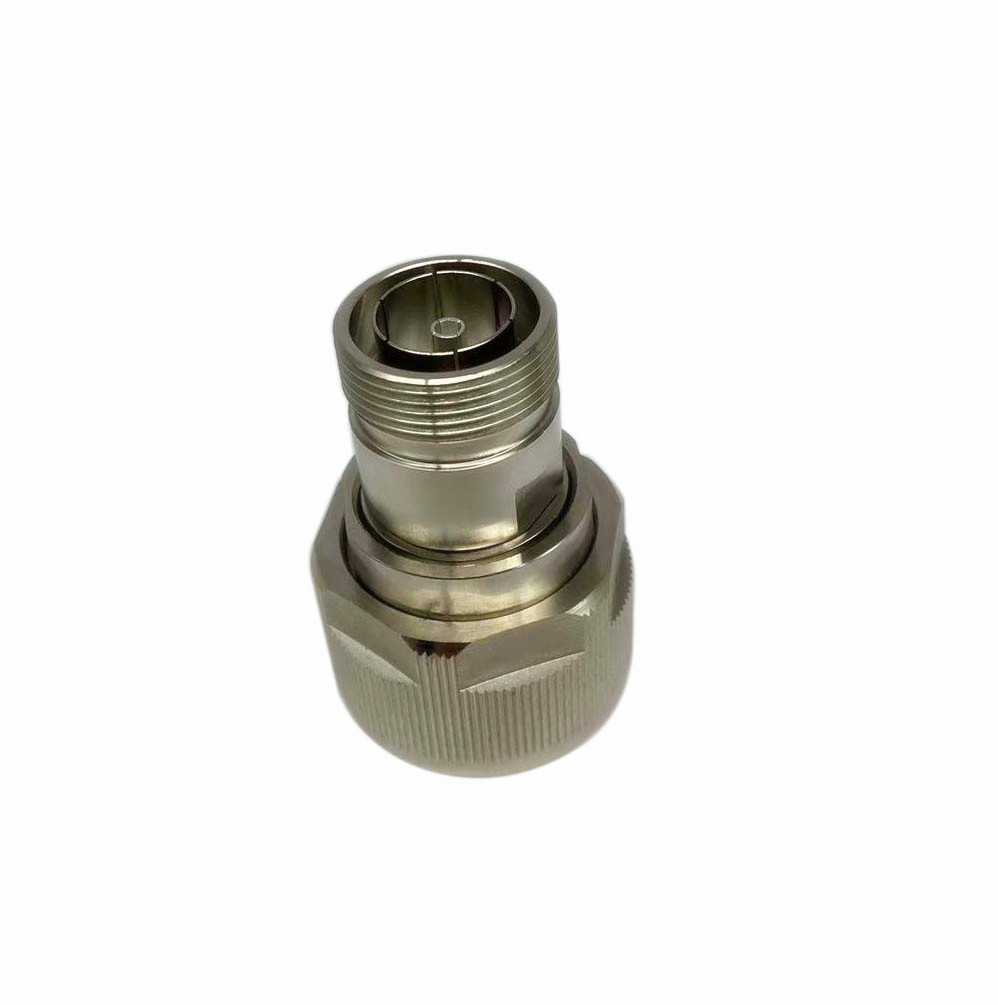

75 ohm L36 Male To L27 Female Adaptor Connector

Model No.	L36/L27-75JK
Connector Interface	L36/L27
Characteristic Impedance	75ohm
Typical Frequency Range	DC-7.5GHz
VSWR	≤1.2@DC-3GHz
Dielectric Withstanding Voltage	≥4000V RMS,50Hz,at sea level
Dielectric Resistance	≥10000MΩ
Contact Resistance	Center Contact ≤0.4mΩ; Outer Contact ≤1.5mΩ
Durability	≥500 cycles
Parts Name	Material	Plating
Body	Brass	Ni
Insulator	PTFE	—
Center conductor	Phosphor Bronze	Ag
Coupling Nut	Brass	Ni
Gasket	Silicone Rubber	—
Operating Temperature	-45℃～+85℃
Weatherproof Rate	IP68
RoHS Compliant	Yes
