Location：Home>>Product >> RF Connector Adaptors >> Other connector adaptors

产品名称： TNC Female Bulkhead To MCX Female Connector Adapter
产品名称： Model Number: TNC/MCX-KKY

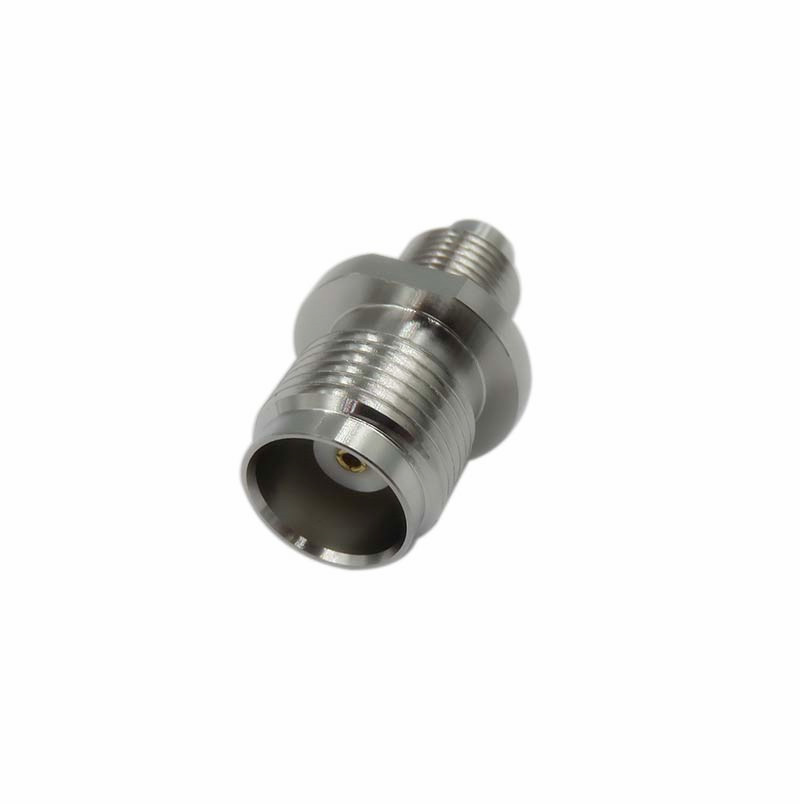

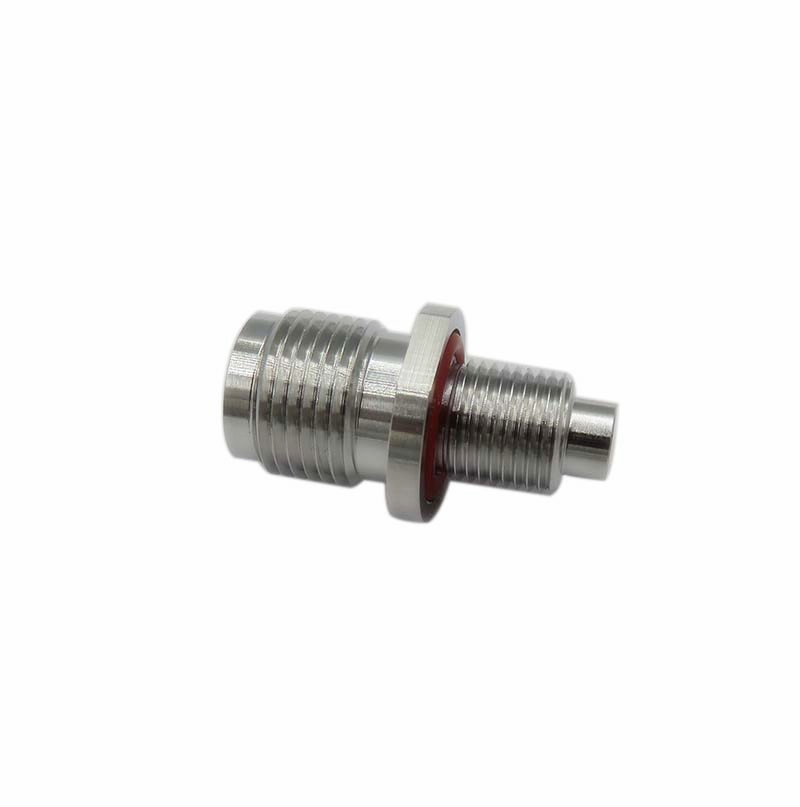

TNC Female Bulkhead To MCX Female Connector Adapter

Model No.	TNC/MCX-KKY
Interface	IEC 60169-17/ IEC 61169-36
Electrical
Characteristic Impedance	50ohm
Typical Frequency Range	DC- 6GHz
VSWR	≤1.20@DC-6GHz
Working Voltage	≤500V RMS,50Hz,at sea level
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating
Body	Brass	Ni
Insulator	PTFE	—
Center conductor	Phosphor bronze	Au
Coupling nut	Brass	Ni
Gasket	Silicone rubber	_
Environmental
Operating Temperature	-45℃- + 85 ℃
RoHS Compliant	Yes
