Location：Home>>Product >> RF Connector Adaptors >> Other connector adaptors

产品名称： BNC Female To TNC Female Connector Adaptor
产品名称： Model Number:BNC/TNC-KK

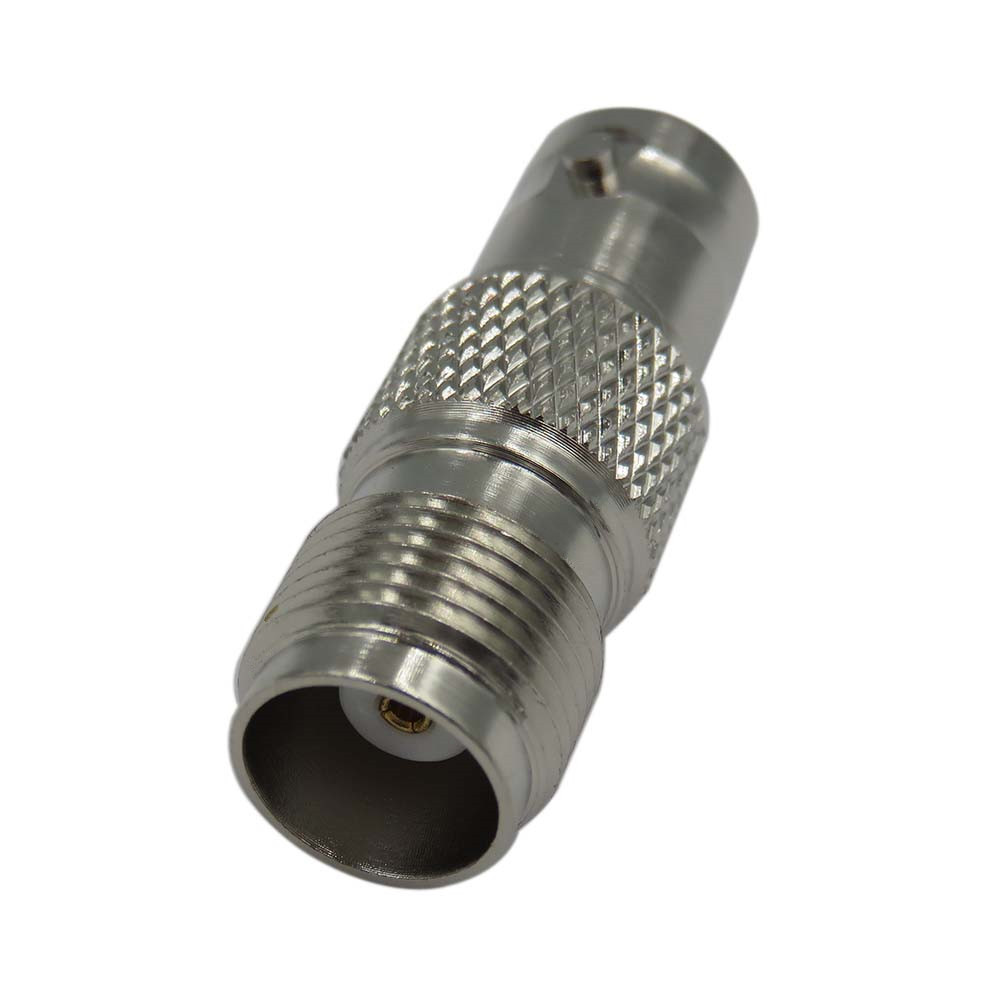

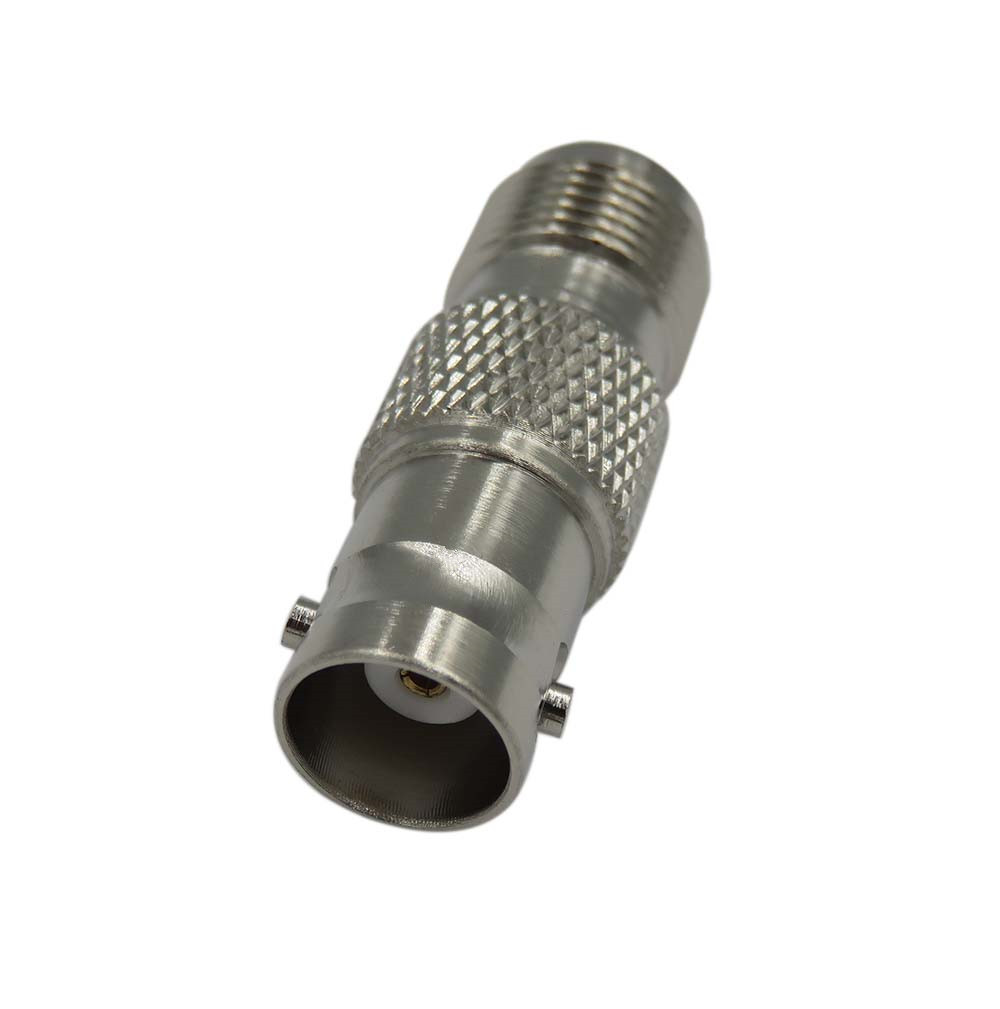

BNC Female To TNC Female Connector Adaptor

Model No.	BNC/TNC-KK
Interface	IEC 60169-17/ IEC 60169-8
Electrical
Characteristic Impedance	50ohm
Typical Frequency Range	DC- 3GHz
VSWR	≤1.15@DC-3GHz
Insertion Loss	≤0.10dB
Working Voltage	≤500V RMS,50Hz,at sea level
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating
Body	Brass	Ni
Insulator	PTFE	—
Center conductor	Phosphor bronze	Au
Gasket	Silicone rubber	_
Environmental
Operating Temperature	-45℃- + 85 ℃
RoHS Compliant	Yes
