  • 产品名称: F Compression Type Connector For RG6 Cable B
  • 产品名称: Model Number : F-C-J6B

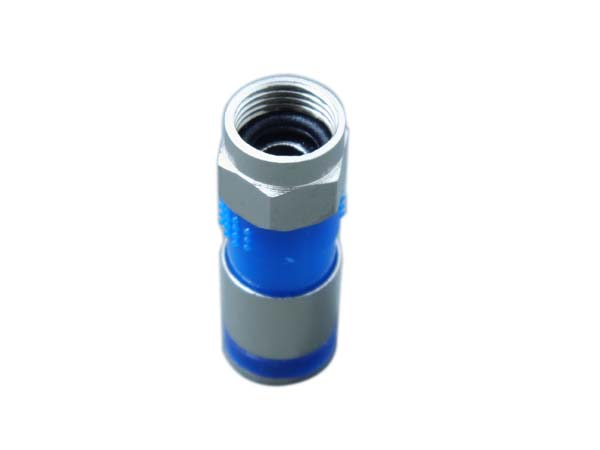

                           F Compression Type Connector For RG6 Cable

Model No.  F-C-J6B
Interface  IEC 60169-24
Electrical
Characteristic Impedance   75 ohm
Frequency Range                                            DC-1GHz
VSWR          ≤1.2
Dielectric Withstanding Voltage  500V RMS,50Hz,at sea level
Working Vlotage   170V RMS,50Hz,at sea level
Dielectric Resistance    ≥1000MΩ
Contact Resistance    Center Contact 10mΩ   Outer Contact 5 mΩ
Mechanical
Durability   Mating cycles  500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Ni
Coupling nut  Brass   Ni
Inner liner    Brass   Ni
Outer liner  POM   —
Gasket      Silicone rubber   —
Environmental
Operating Temperature   -40℃~+60
RoHs Compliant   Yes
