  • 产品名称： High Frequency BMA Male Bulkhead Connector For RG405(.086”) Cable
  • 产品名称： Model Number:BMA-JYB2-H

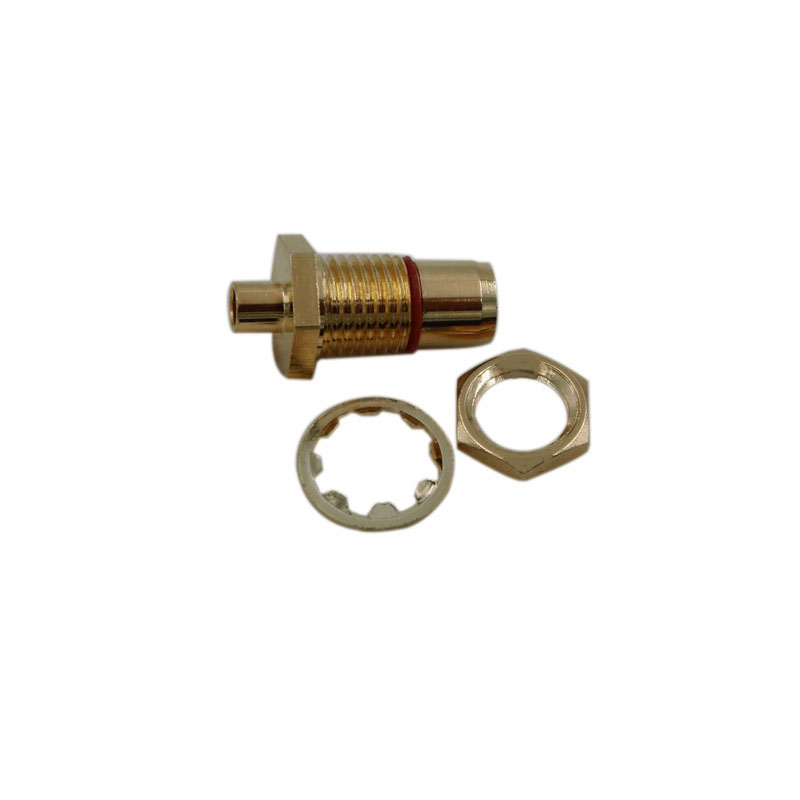

                          High Frequency BMA Male Bulkhead Connector For RG405(.086”) Cable

                              (Contact attachment:Inner:captivated/push-on;Outer:soldering)

Model No. BMA-JYB2-H
Interface IEC 1169-33/MIL-STD-348
Electrical
Characteristic Impedance  50ohm
Frequency Range                                          DC-18GHz
VSWR          ≤1.35@DC-12GHz; ≤1.45@12-18GHz
Dielectric Withstanding Voltage 1500V RMS,50Hz,at sea level
RF testing voltage    1000V RMS,5Hz
Dielectric Resistance   ≥5000MΩ
RF testing voltage     1000V RMS,5Hz
Power handing  ≤300W@3GHz
Contact Resistance    Center contact ≤2mΩ  Outer contact ≤2mΩ
Mechanical
Engagement force    ≤13.5N
Disengagement force   ≥ 2N
Durability   Mating cycles  ≥500
Material and Plating
Parts Name Material  Plating
Body  Phosphor bronze Au
Insulator  PTFE —
Center conductor  Beryllium bronze    Au
Lock nut  Brass Au
Washer    Brass Au
Gasket     Silicone rubber     —
Environmental
Operating Temperature -55 ℃～+125  ℃
RoHS Compliant      Yes
Notes: It can be suited to SM086,EZ086 or other equivalent .086” cables.
