  • 产品名称: 500mm 1/2" Superflexible Cable Jumper(Assembly) With 4.3/10 Male Connector And 4.3/10 Male Right Angle Connector
  • 产品名称: Model Number : 4.3/10-J1/2SH-4.3/10-JW1/2SH-500

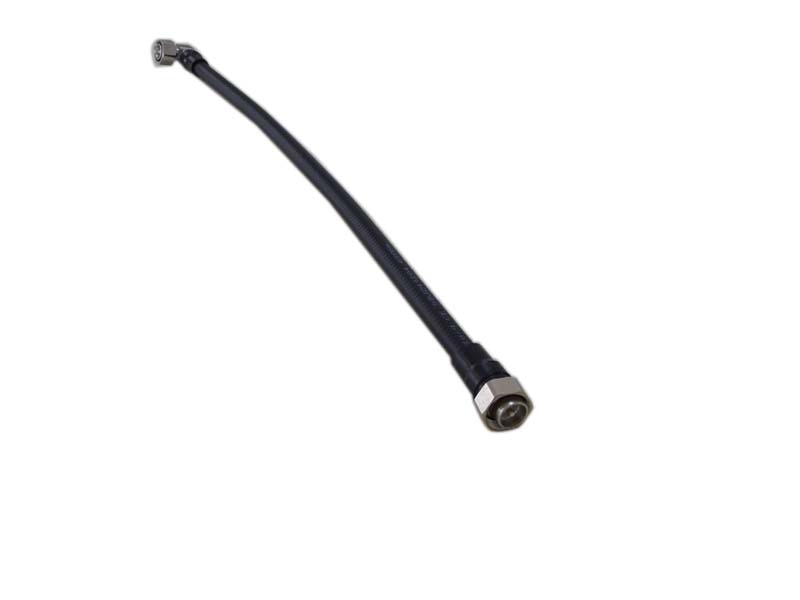

                    500mm 1/2” Superflexible Cable Jumper(Assembly) With 4.3/10  Male Connector

                                             And 4.3/10 Male Right Angle Connector

Model No.  4.3/10-J1/2SH-4.3/10-JW1/2SH-500
Connector Type  4.3/10 male solder connector for 1/2" superflexible cable
 4.3/10 male right angle solder connector for 1/2" superflexible cable
Cable Type(Name)  1/2” superflexible cable
Cable Length   500mm (Customized Length Available)
Connectors Interface  IEC 61169-54
Characteristic Impedance    50 ohm
Tipical Frequency Range  DC-3.7GHz
VSWR   ≤1.10@DC-2.7Hz; ≤1.13@2.7-3.7Hz;
Insertion Loss   0.164*L+0.2(2.2GHz)dB
Intermodulation 3rd   ≤ -160dBc@2×43dBm
Dielectric Withstanding Voltage   2500V RMS,50Hz,at sea level
Working Voltage    500V RMS,50Hz,at sea level
Dielectric Resistance   ≥5000MΩ
Screen Efficiency    ≥110dB
Power Rating   ≥500W@2GHz
Mechanical
Torque of Nut  20Nm
Torsion Torque    5Nm
Pull-off Force    400N
Durability    ≥500 cycles
Material and Plating (Connectors)
Parts Name  Material   Plating
Body  Brass  Tri-alloy
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Ag
Coupling nut  Brass  Tri-alloy
Gasket      Silicone Rubber   —
Protection tube   LDPE
Operating Temperature  -45 ℃-+85
Weatherproof Rate       IP68
RoHs Compliant   Yes
