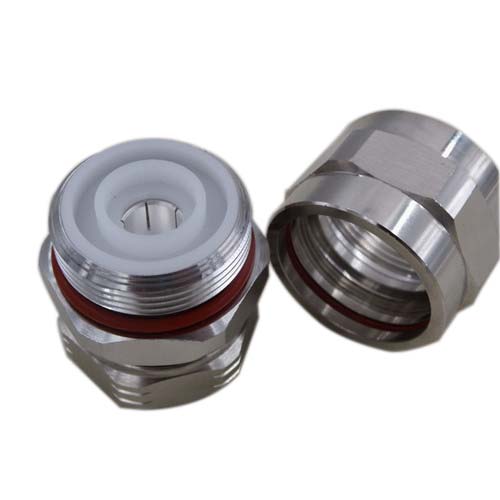

  7/16 DIN Male Clamp Connector For 7/8" AVA5-50FX Cable

  ( Inner attachment: Captivated ;Outer attachment :Clamp)

Model No.  DIN-J7/8ALB
Interface  IEC 60169-4
Electrical
Characteristic Impedance   50ohm
Typical Frequency Range                                           DC-5GHz
VSWR          1.12@DC-3600MHz
Insertion Loss  0.08dB@2200MHz
Intermodulation 3rd  ≤ -157dBc@2×20W
Dielectric Withstanding Voltage  4000V RMS,50Hz,at sea level
Working Voltage  2700V RMS,50Hz,at sea level
RF Power  3KW(max)
Dielectric Resistance      10000MΩ
Contact Resistance    Center Contact 0.4mΩ Outer Contact 1.5 mΩ
Mechanical
Durability   Mating cycles 500
Material and Plating
Parts Name  Material  Plating
Body  Brass   Tri-alloy
Insulator   PTFE
Center conductor   Beryllium bronze Ag
Coupling Nut   Brass Tri-alloy
Back nut     Brass Tri-alloy
Gasket  Silicone Rubber
Environmental
Operating Temperature  -40℃~+85
Weatherproof Rate       IP68
RoHS (2002/95/EC)  Compliant Yes
Suitable Cable Family  It can be suited to AVA5-50 and FLX-780 cables.
