  • 产品名称： 7/16 DIN Female to N Female Connector Adaptor
  • 产品名称： Model Number : 7/16/N-KK

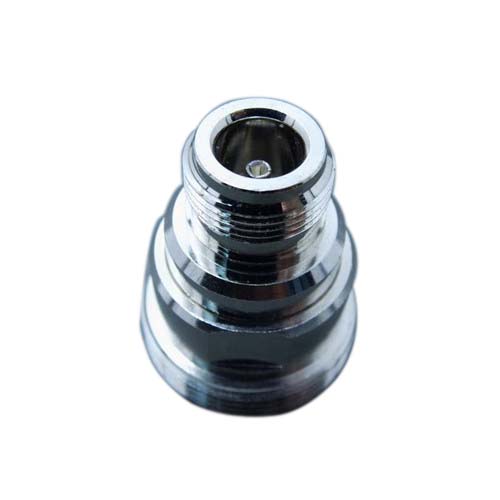

                               7/16 DIN Female to N Female Connector Adaptor

Model No.  7/16/N-KK
Connector Interface   IEC 60169-4/ IEC 60169-16
Characteristic Impedance   50ohm
Typical Frequency Range   DC-6.0GHz
VSWR     ≤1.10@DC-3GHz; ≤1.25@DC-6GHz
Insertion Loss  ≤0.1dB
Intermodulation 3rd (PIM3)       ≤ -155dBc@2×20W
Dielectric Withstanding Voltage   ≥2500V RMS,50Hz,at sea level
Working Voltage      ≤1000V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center Contact ≤2mΩ; Outer Contact ≤0.5mΩ
Durability    ≥500 cycles
Parts Name  Material   Plating
Body  Brass   Tri-alloy
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Ag
Operating Temperature  -45℃～+85℃
Weatherproof Rate       IP68
RoHS Compliant    Yes
