  • 产品名称： 7/8" EIA Flange Connector To 7/16 Female Connector Adaptor
  • 产品名称： Model Number: 7/8EIA/7/16-JK

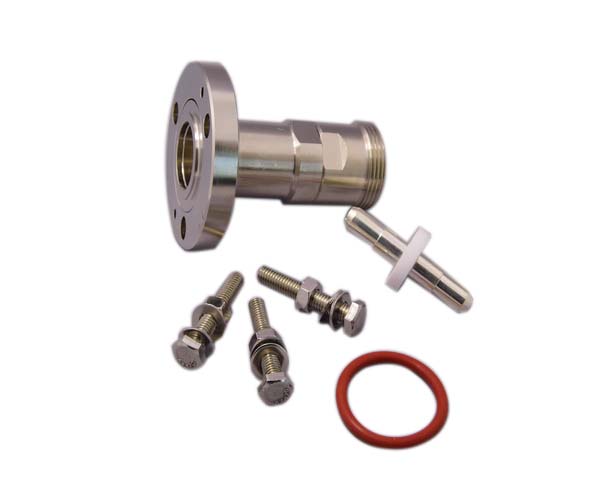

                     7/8" EIA Flange Connector To 7/16 Female Connector Adaptor

Model No.  7/8EIA/7/16-JK
Interface  7/8” EIA Flange/IEC60169-4
Electrical
Characteristic Impedance   50ohm
Frequency Range                                            DC-5GHz
VSWR          ≤1.07@DC-1000MHz
Dielectric Withstanding Voltage  ≥6000V RMS,50Hz,at sea level
Working Voltage(Max.)    ≤2100V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
Average Power   2.3KW @900MHz
Peak Power Maximum  90KW
Contact Resistance    Center Contact ≤1.5mΩ(EIA side)≤0.4mΩ(7/16 side)
 Outer Contact ≤1.5mΩ(EIA side)≤1.0mΩ(7/16 side)
Mechanical
Durability    Mating cycles  ≥100/500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Ni
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Ag
Flange nut     Brass   Ni
Gasket (O-ring)   Silicone Rubber   —
Hardware kits  Stainless Steel   —
Environmental
Operating Temperature  —45℃－+85 ℃
Weatherproof Rate       IP67
RoHs Compliant   Yes
Notes: It includes one coupling elemen(bullet). Hardware kits include:3 pieces of each bolt, nut, lock washer and flat washer.
