• 产品名称: 3-1/8" EIA Flange Connector To 7/16 Male Connector Adaptor
  • 产品名称: Model Number: 25/8EIA/7/16-JJ

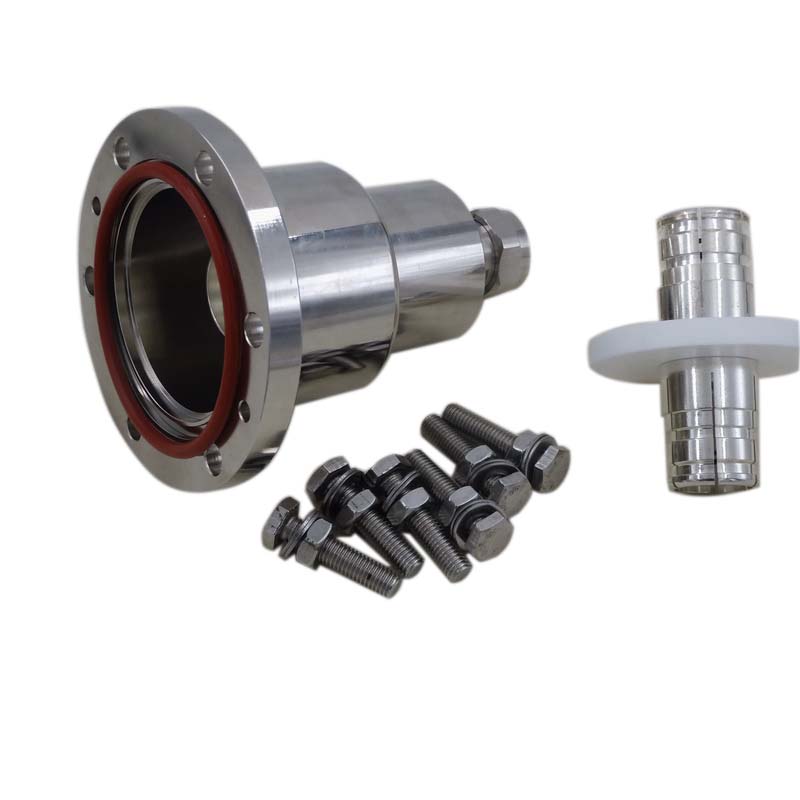

                      3-1/8" EIA Flange Connector To 7/16 Male Connector Adaptor

Model No.  25/8EIA/7/16-JJ
Interface  3-1/8EIA Flange/IEC 60169-4
Characteristic Impedance   50ohm
Frequency Range                                            DC-3GHz
VSWR           1.07@DC-1GHz;1.15@1-2.5GHz
Dielectric Withstanding Voltage  ≥6000V RMS,50Hz,at sea level
Working Voltage(Max.)    ≤2700V RMS,50Hz,at sea level
Dielectric Resistance    5000MΩ
Average Power      3.4KW@900MHz
Peak Power Maximum  90KW
Contact Resistance    Center Contact 1.5mΩ(EIA side)0.4mΩ(7/16 side)
 Outer Contact 1.5mΩ(EIA side)1.0mΩ(7/16 side)
Durability   Mating cycles  100/500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Ni
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Ag
Flange nut     Brass   Ni
Coupling nut   Brass   Ni
Gasket (O-ring)   Silicone Rubber
Hardware kits  Stainless Steel   —
Operating Temperature  —45℃-+85 ℃
Weatherproof Rate       IP67
RoHs Compliant   Yes
Notes: It includes one coupling element(bullet) for 3-1/8”EIA interface.Hardware kits include:6 pieces of each bolt, nut, lock washer and flat washer for 3-1/8”EIA interface.
