  • 产品名称: TNC Male Clamp Connector For LMR400 Cable
  • 产品名称: Model Number : TNC-J400

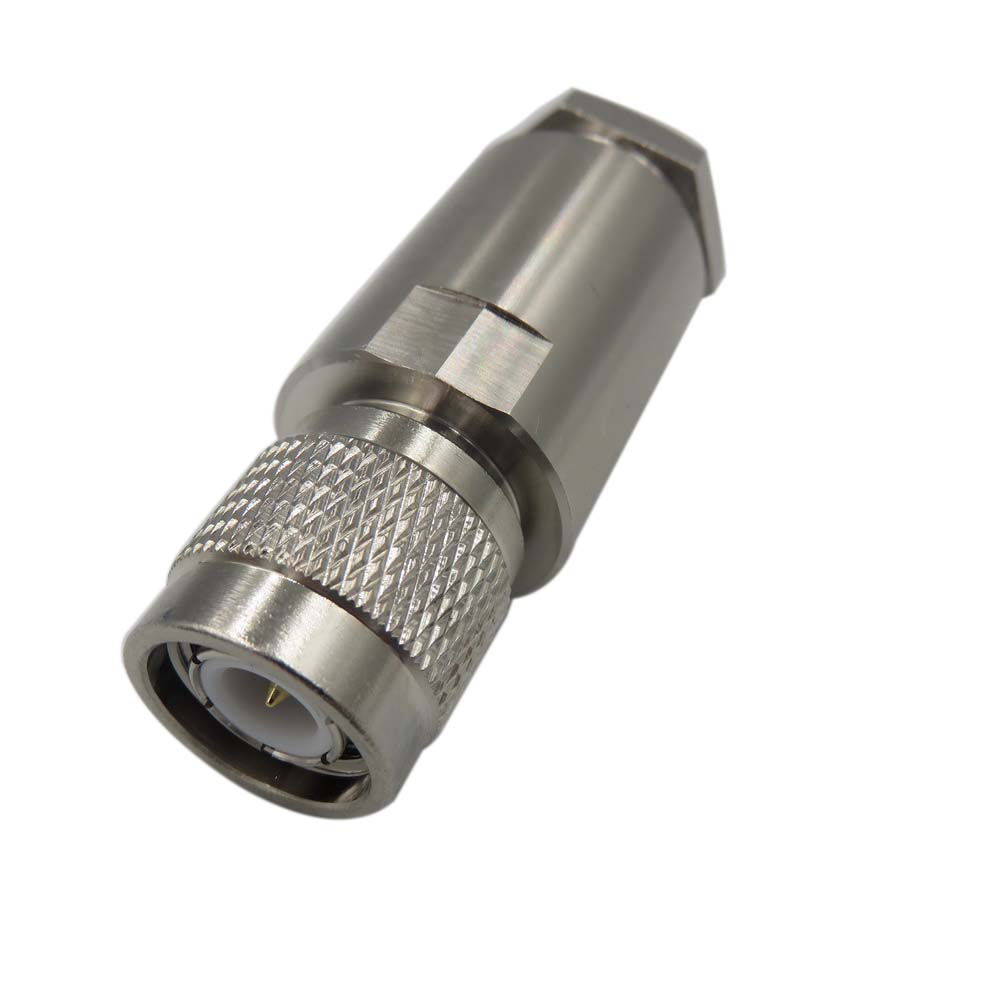

      TNC Male Clamp Connector For LMR400 Cable

   (Contact attachment:Inner:captivated;Outer:clamp)

Model No.  TNC-J400
Interface  IEC 60169-17;CECC 22200
Electrical
Characteristic Impedance   50ohm
Frequency Range                                             DC-11GHz
VSWR           1.25@DC-3GHz; 1.35@3-6GHzz
Dielectric Withstanding Voltage  ≥1500V RMS,50Hz,at sea level
Working Vlotage   ≤500V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center Contact 10mΩ   Outer Contact 2.5 mΩ
Mating  —
Mechanical
Durability   Mating cycles  500

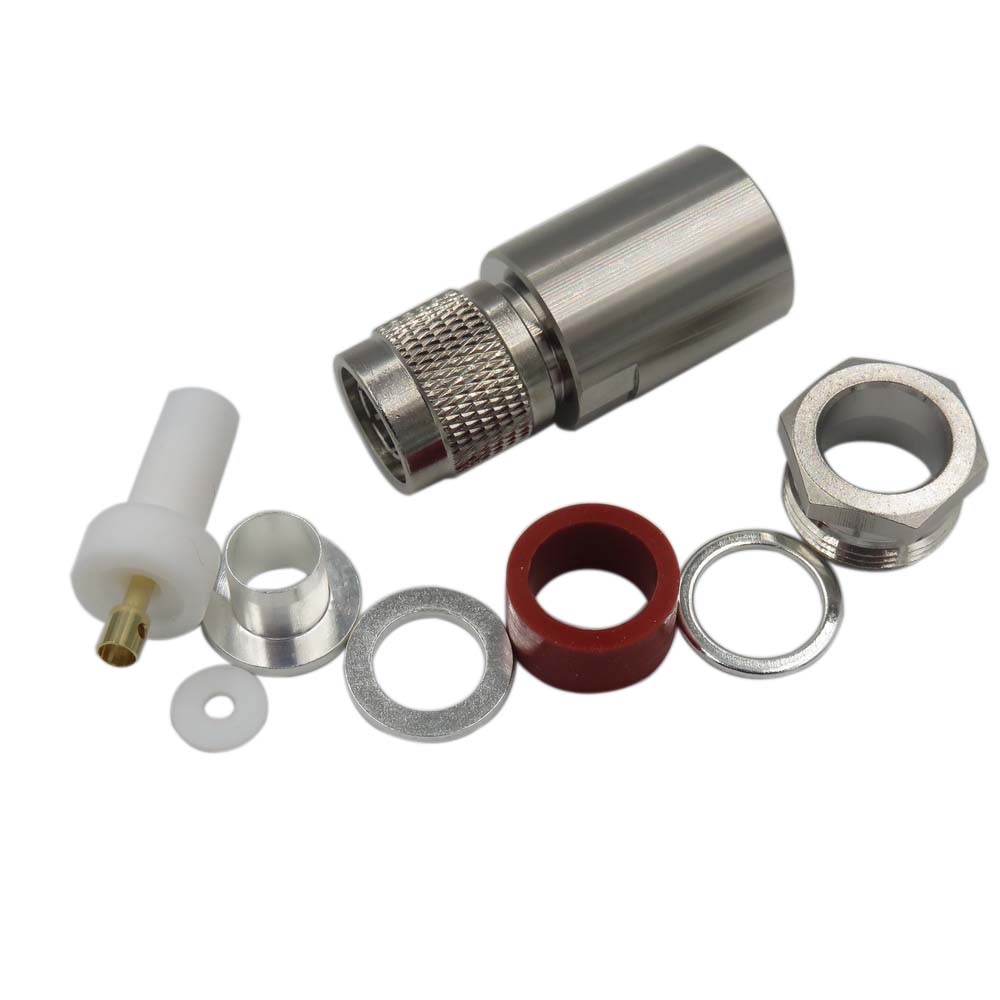

Material and Plating
Parts Name  Material  Plating
Body  Brass  Ni
Insulator   PTFE
Inner Conductor   Phosphor Bronze   Au
Coupling Nut   Brass  Ni
Back Nut  Brass  Ni
Washer  Brass  Ni
Cable clamp  Brass  Ag
Gasket   Silicone Rubber
Environmental
Operating Temperature  -40 ℃~+85
RoHS Compliant       Yes
Note:  It can be also suited to RU400,CNT400,CE400 and RG8 cables.
