Location：Home>>Product >> RF Connector Adaptors >> N type connector to other connector adaptors

产品名称： N Male to QMA Female Connector Adaptor
产品名称： Model Number: N/QMA-JK

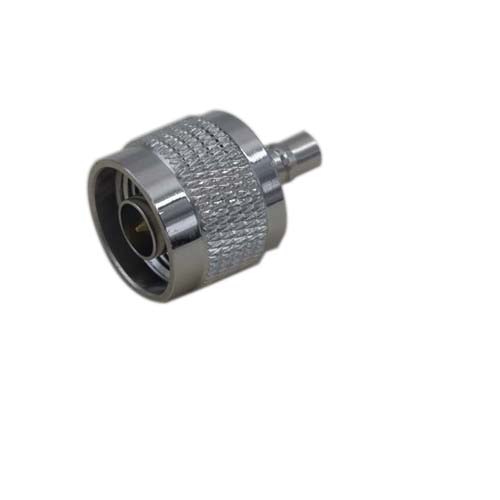

N Male to QMA Female Connector Adaptor

Model No.	N/QMA-JK
Connector Interface	IEC 60169-16/QMA
Characteristic Impedance	50ohm
Typical Frequency Range	DC-6GHz
VSWR	≤1.10@DC-3GHz
Dielectric Withstanding Voltage	1000V(QMA) 2500V(N) RMS,50Hz,At sea level
Working Voltage	≤480V(QMA)/ ≤1000V(N)
Contact Resistance	Center Contact ≤2.5mΩ(QMA)≤1.0mΩ(N)
	Outer Contact ≤3.0mΩ(QMA)≤0.25mΩ(N)
Dielectric Resistance	≥5000MΩ
Durability	≥100(QMA)/≥500(N)
Parts Name	Material	Plating
Body	Brass	Tri-alloy
Insulator	PTFE	—
Inner Conductor	Phosphor Bronze	Au
Coupling Nut	Brass	Tri-alloy
Gasket	Silicone Rubber	—
Operating Temperature	-45℃～+125℃
RoHS Compliant	Yes
