  • 产品名称： N Male to SMA Male Connector Adaptor
  • 产品名称： Model Number: N/SMA-JJ

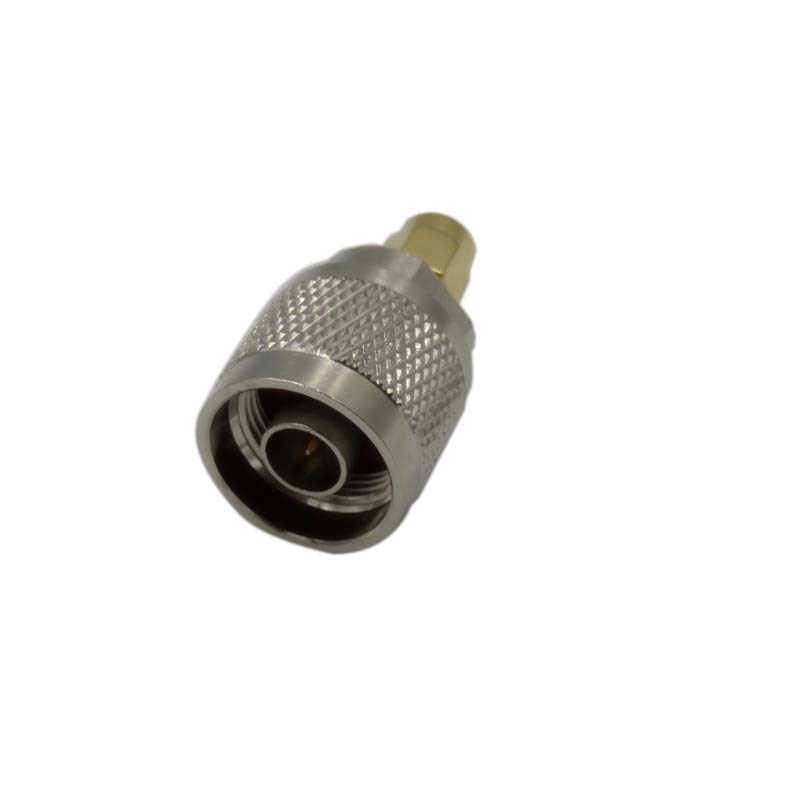

                         N Male to SMA Male Connector Adaptor

Model No.  N/SMA-JJ
Connector Interface  IEC 60169-16; IEC 60169-15
Characteristic Impedance   50ohm
Insertion Loss ≤0.1dB
Typical Frequency Range  DC-6GHz
VSWR  ≤1.15@DC-3GHz; ≤1.25@3-6GHz
Testing Voltage    1000V RMS,50Hz,at sea level
Working Voltage    480V RMS,50Hz,at sea level
Dielectric Resistance        ≥5000MΩ
Contact Resistance      Center Contact ≤1.0 mΩ N side ≤3.0mΩ SMA side
 Outer Contact ≤0.25mΩ N side ≤2.0 mΩ SMA side
Durability    ≥500 cycles
Parts Name  Material   Plating
Body  Brass   Ni
Insulator   PTFE  —
Inner Conductor   Phosphor Bronze    Au
Coupling Nut   Brass   Ni
Gasket   Silicone Rubber   —
Operating Temperature ＿40 ℃-85  ℃
Weatherproof Rate       IP67
RoHS Compliant   Yes
