  • 产品名称: N Male Clamp Connector For 5D-FB Cable
  • 产品名称: Model Number: N-J5D

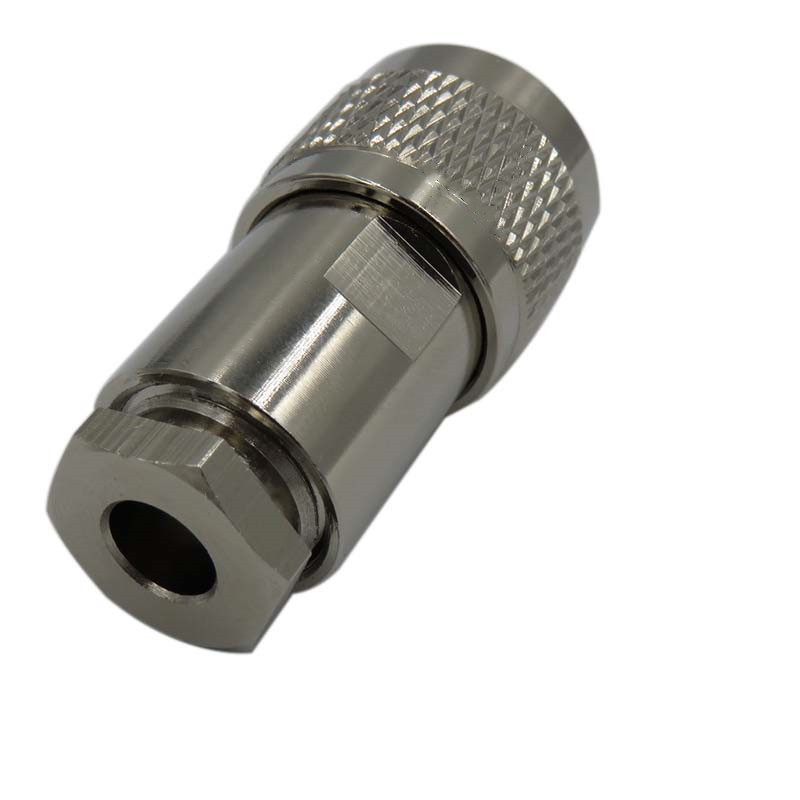

                                     N Male Clamp Connector For 5D-FB Cable

                                (Contact attachment:Inner:solder ;Outer:clamp)

Model No. N-J5D
Interface IEC 60169-16
Electrical
Characteristic Impedance  50ohm
Frequency Range                                          DC-11GHz
VSWR         ≤1.25 @DC-3GHz
Dielectric Withstanding Voltage 2500V RMS,50Hz,at sea level
Working Vlotage  1000V RMS,50Hz,at sea level
Dielectric Resistance   5000MΩ
Contact Resistance   Center Contact 1mΩ Outer Contact 0.25 mΩ
Mating
Mechanical
Durability  Mating cycles  500

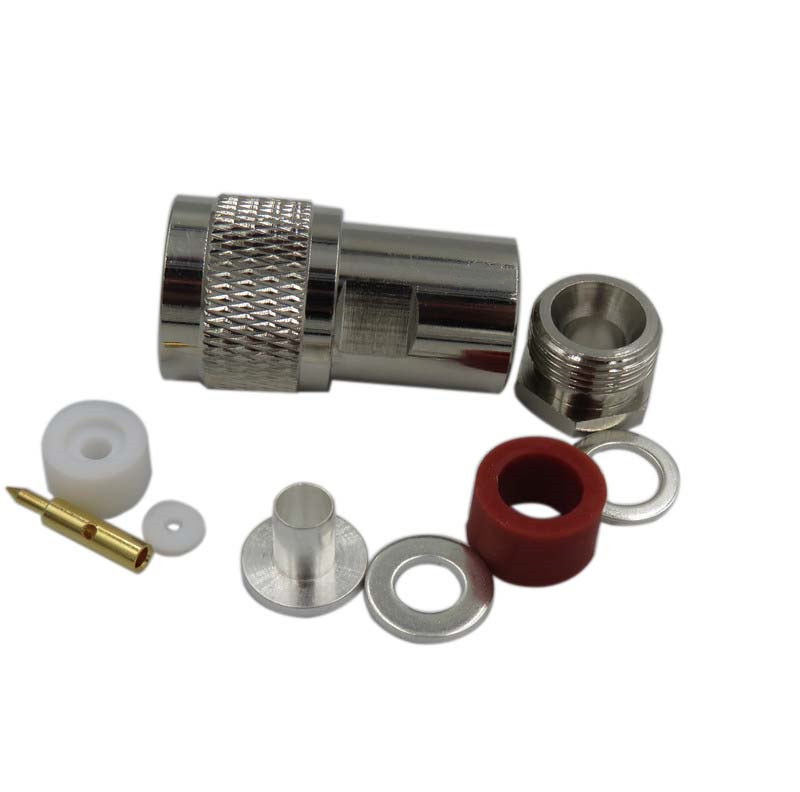

Material and Plating
Parts Name Material  Plating
Body Brass  Ni
Insulator  PTFE
Center conductor  Phosphor Bronze   Au
Coupling nut   Brass   Ni
Back nut  Brass  Ni
Cable clamp Brass  Ag
Thick washer Brass Ag
Thin washer Brass Ag
Gasket    Silicone Rubber
Environmental
Operating Temperature -450- + 85
Weatherproof Rate       IP67
RoHS (2002/95/EC)   Yes
