  • 产品名称： N Type Female Bulkhead Connector For Rg405 (. 086") Cable
  • 产品名称： Model Number: N-KYB2

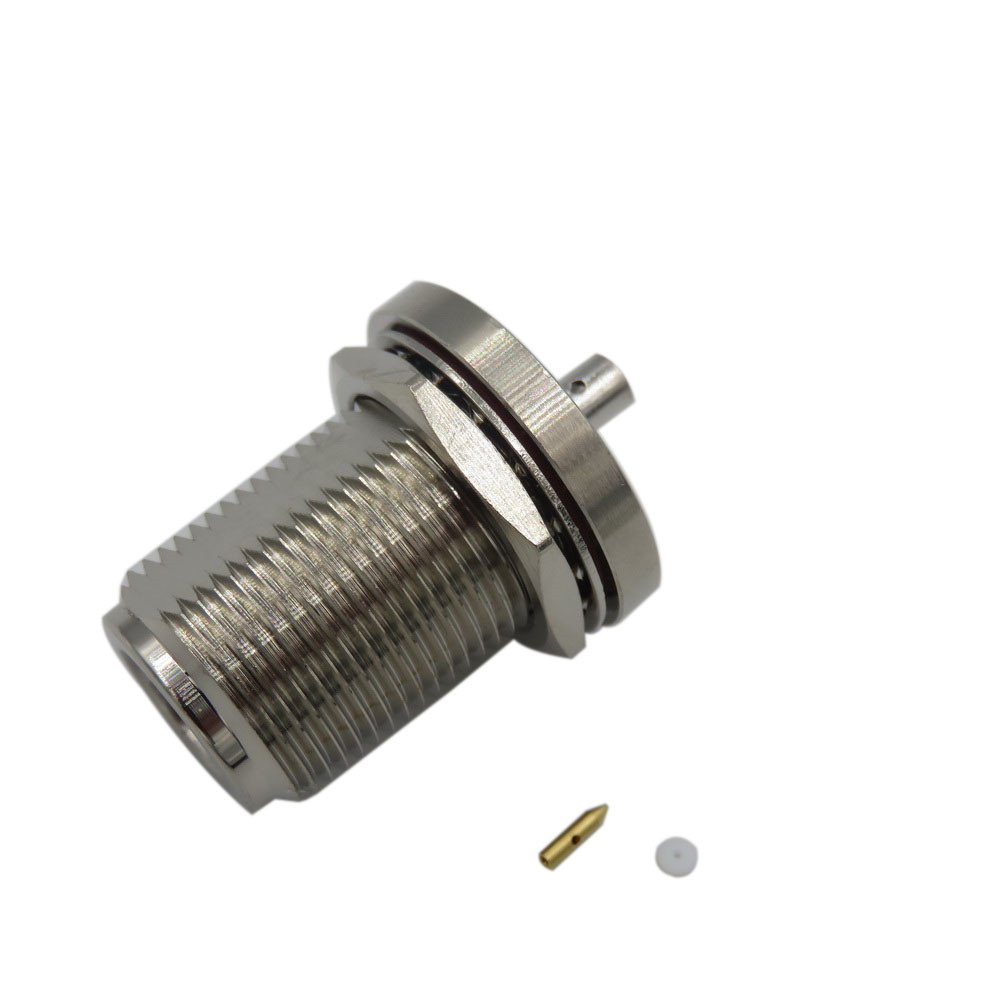

        N Type Female Bulkhead Connector For Rg405 (. 086") Cable

            (Contact attachment:Inner:soldering ;Outer:soldering)

Model No.  N-KYB2
Interface  IEC 60169-16
Electrical
Characteristic Impedance   50ohm
Frequency Range                                           DC-11GHz
VSWR          ≤1.15@DC-3GHz ;≤1.25@3-6GHz
Dielectric Withstanding Voltage  ≥2500V RMS,50Hz,at sea level
Working Vlotage   1000V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center Contact ≤1mΩ   Outer Contact ≤0.25 mΩ
Mating  —
Mechanical
Durability   Mating cycles  ≥500

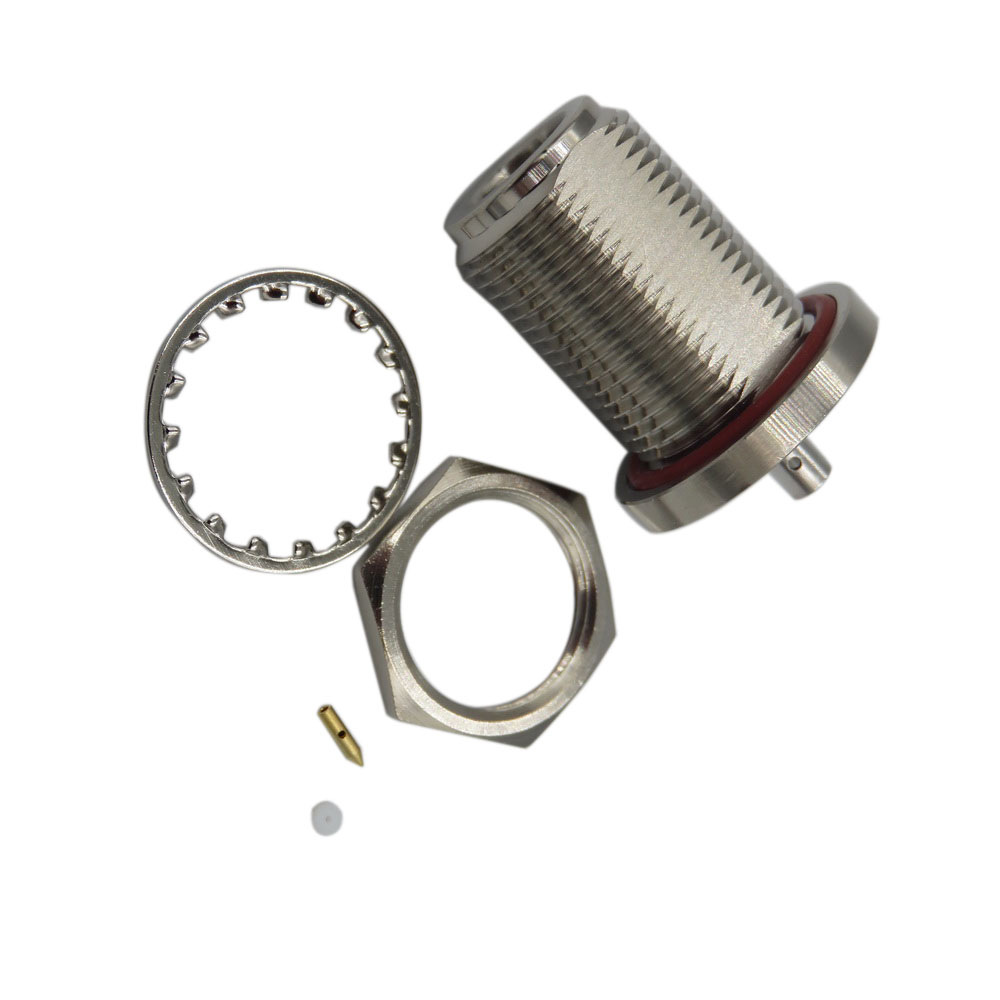

Material and Plating
Parts Name  Material   Plating
Body  Brass   Ni
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Au
Fastening nut  Brass   Ni
Washer  Brass   Ni
Gasket    Silicone rubber    —
Environmental
Operating Temperature  -45 ℃-+85  ℃
Weatherproof Rate       IP67
RoHS Compliant     Yes
