  • 产品名称: SMA Male Right Angle Crimp Connector For LMR100 Cable
  • 产品名称: Model Number: SMA-C-JW100

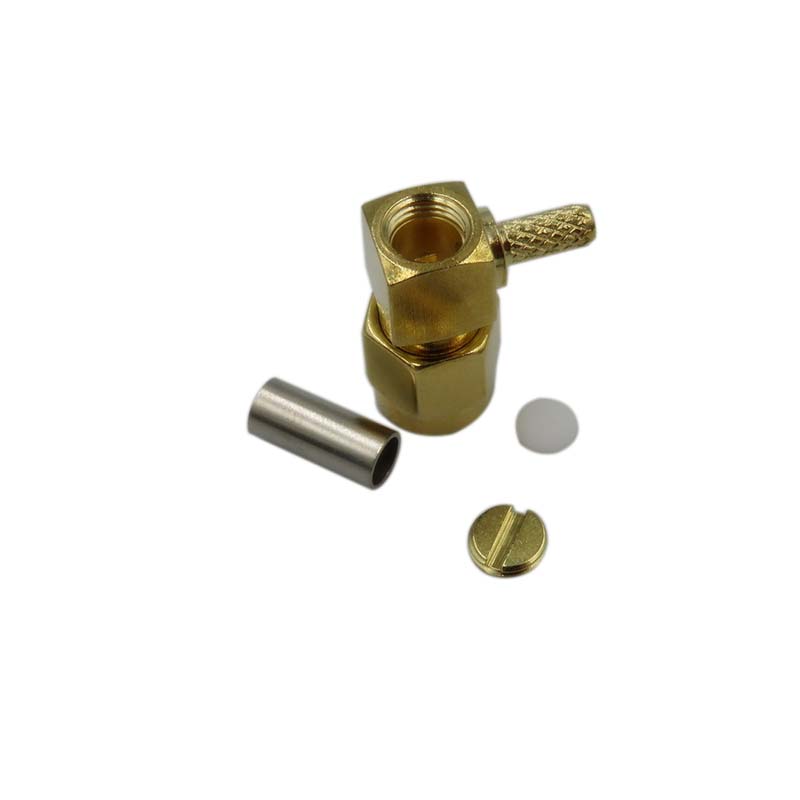

                             SMA Male Right Angle Crimp Connector For LMR100 Cable

                               (Contact attachment:Inner:soldering ;Outer:crimp)

Model No. SMA-C-JW100
Interface  IEC 60169-15
Electrical
Characteristic Impedance  50ohm
Frequency Range                                          DC-12.4GHz
VSWR          1.15@DC-3GHz; 1.25@3-6GHz
Dielectric Withstanding Voltage 1000V RMS,50Hz,at sea level
Working Vlotage  335V RMS,50Hz,at sea level
Dielectric Resistance   5000MΩ
Contact Resistance   Center Contact 3mΩ   Outer Contact 2.5 mΩ
Mechanical
Durability  Mating cycles  500
Material and Plating
Parts Name Material  Plating
Body Brass  Au
Insulator  PTFE
Spacer  PTFE
Center conductor  Phosphor copper  Au
Coupling Nut  Brass  Au
Sealing cap Brass  Au
Gasket   Silicone Rubber
Ferrule Annealed Copper Ni
Environmental
Operating Temperature -40 ℃~-85
RoHS Compliant   Yes
