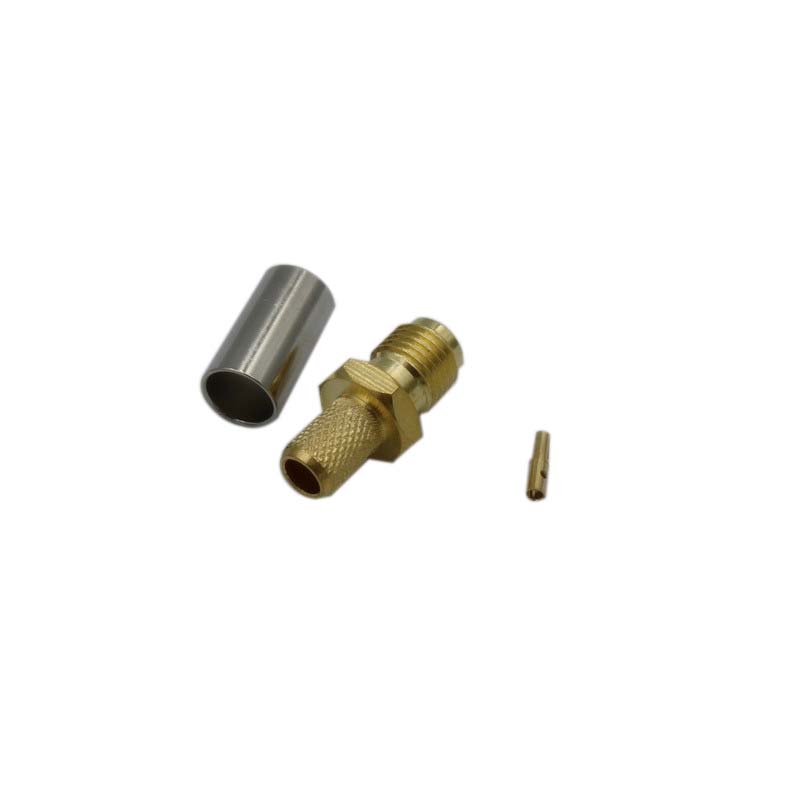

    SMA Female Crimp Connector For RG58 Cable

   (Contact attachment:Inner:soldering ;Outer:crimp)

Model No. SMA-C-K3
Interface  IEC 60169-15
Electrical
Characteristic Impedance    50ohm
Frequency Range                                            DC-12.4GHz
VSWR           ≤1.25@DC-3GHz
Dielectric Withstanding Voltage   ≥1000V RMS,50Hz,at sea level
Working Vlotage    335V RMS,50Hz,at sea level
Dielectric Resistance     ≥5000MΩ
Contact Resistance     Center Contact ≤3mΩ   Outer Contact ≤2.5 mΩ
Mechanical
Durability    Mating cycles  ≥500
Material and Plating
Parts Name   Material  Plating
Body   Brass  Au
Insulator    PTFE —
Center conductor    Phosphor copper Au
Ferrule     Annealed Copper Ni
Environmental
Operating Temperature   -40 ℃～+85  ℃
RoHS Compliant       Yes
