  • 产品名称： 500mm RG142 Cable Assembly With N Male Crimp And RP SMA Male Crimp Connectors
  • 产品名称： Model Number: N-C-J142/SMA-C-J142R-500

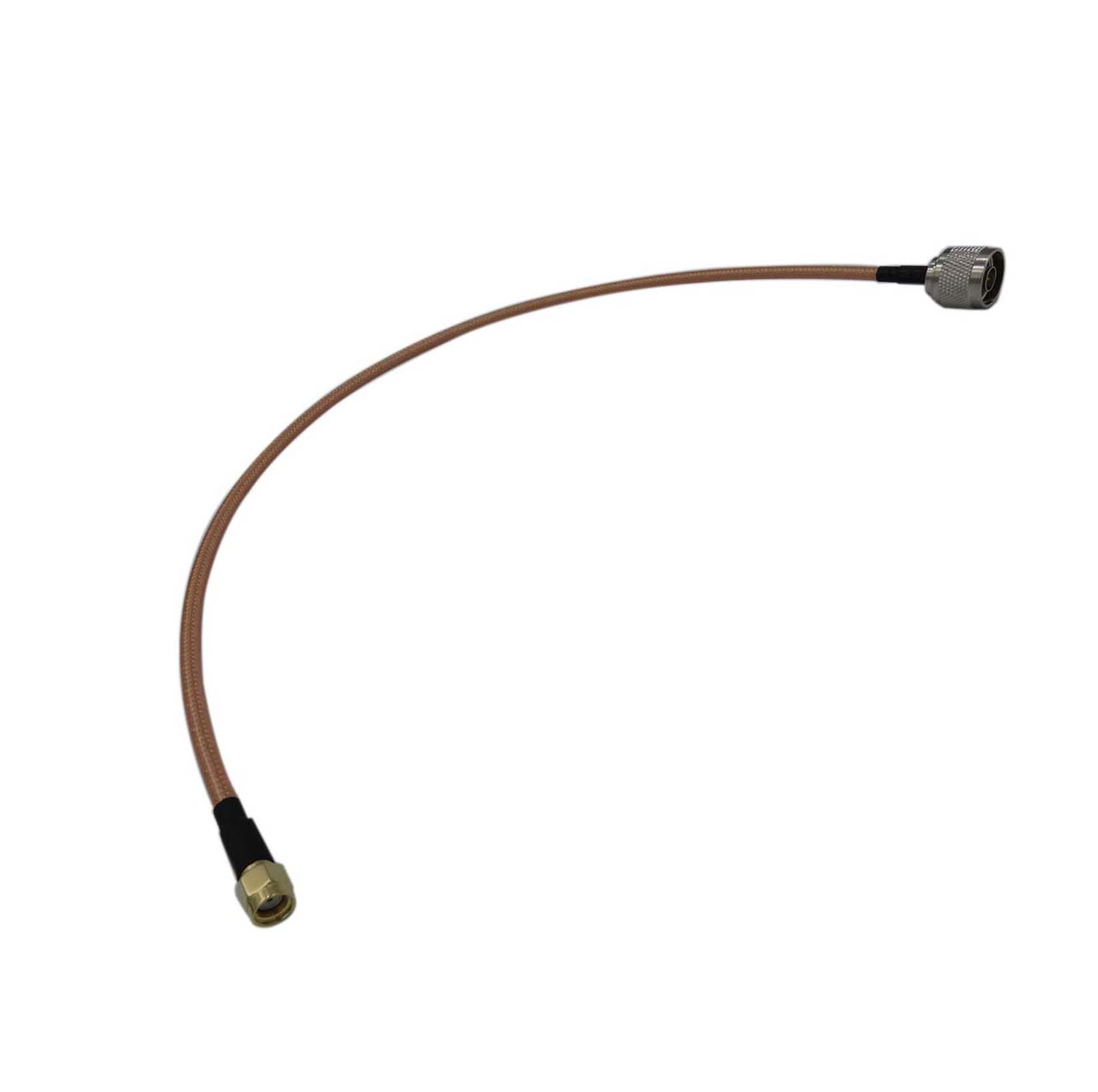

            500mm RG142 Cable Assembly With N Male Crimp And RP SMA Male Crimp Connectors

Model No. N-C-J142/SMA-C-J142R-500
Connectors Interface IEC 60169-15/IEC 60169-16
Characteristic Impedance   50 ohm
Tipical Frequency Range   DC-6GHz
VSWR  ≤1.15@DC-3GHz;≤1.25@3-6GHz;
Insertion Loss  ≤0.6dB@3GHz
Dielectric Withstanding Voltage   ≥1000V RMS,50Hz,at sea level
Working Voltage   ≤480V RMS,50Hz,at sea level
Dielectric Resistance   ≥5000MΩ
Durability   ≥500 cycles
Material and Plating (Connectors)
Parts Name Material  Plating
Body Brass  Ni/Au
Insulator  PTFE —
Center conductor  Phosphor Bronze   Au
Coupling nut      Brass Ni/Au
Gasket   Silicone Rubber  —
Ferrule Brass  Ni
Shrinkable tube   PET   —
Operating Temperature -45 ℃-+125 ℃
Weatherproof Rate      IP67
RoHs Compliant  Yes
