  • 产品名称： SMA Male to MMCX Female Connector Adaptor
  • 产品名称： Model Number: SMA/MMCX-JK

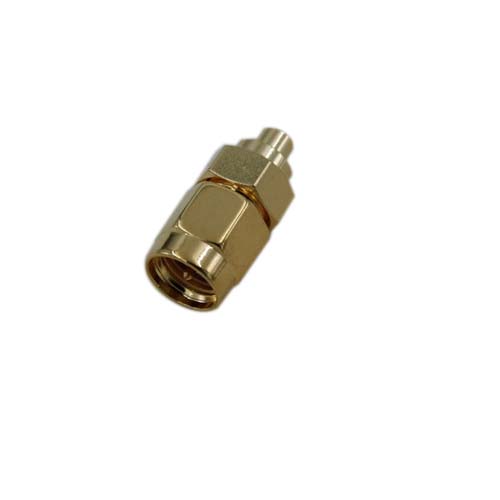

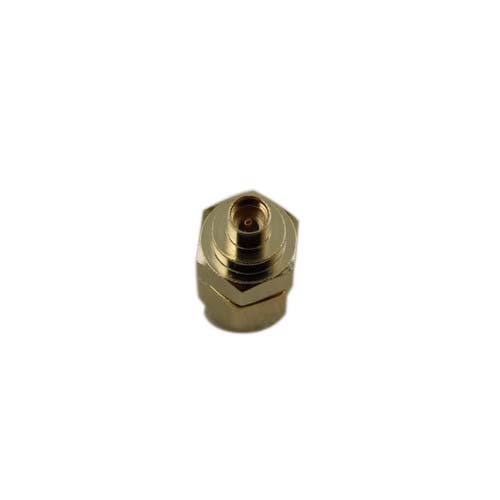

                          SMA Male to MMCX Female Connector Adaptor

Model No.  SMA/MMCX-JK
Connector Interface  CECC 22340/ IEC 60169-15
Characteristic Impedance   50ohm
Typical Frequency Range    DC-6GHz
VSWR    ≤1.15@DC-3000MHz
Insertion Loss           ≤0.10dB@3GHz
Dielectric Resistance       ≥5000MΩ
Dielectric Withstanding Voltage   ≥750V RMS,50Hz,at sea level
Working Voltage    ≤ 335V RMS,50Hz,at sea level
Mechanical
Durability      Mating cycles ≥500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Au
Coupling Nut   Brass   Au
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Au
Resilient contact   Phosphor bronze  Au
Gasket   Silicone Rubber   —
Operating Temperature  ＿40℃-+ 85  ℃
RoHS Compliant       Yes
