产品名称： SSMA Male Right Angle Crimp Connector For RG316 Cable
产品名称： Model Number: SSMA-C-JW1.5

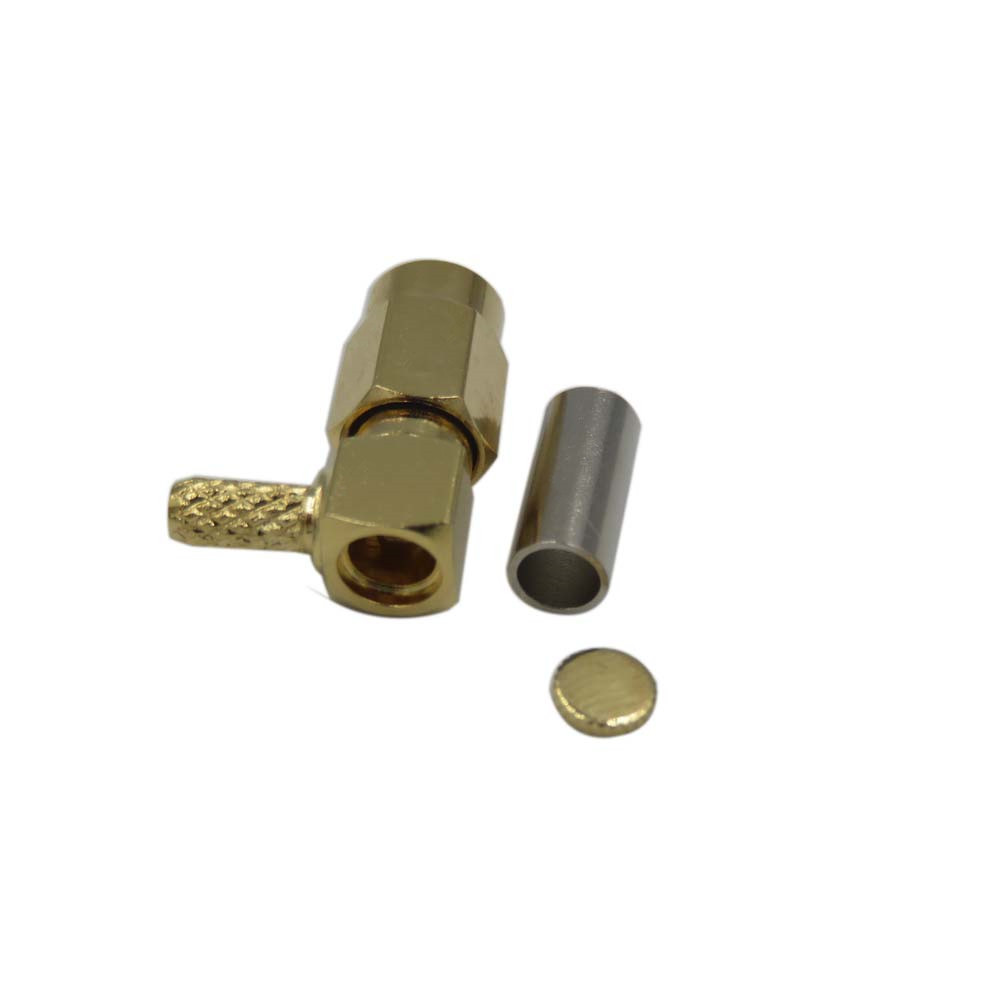

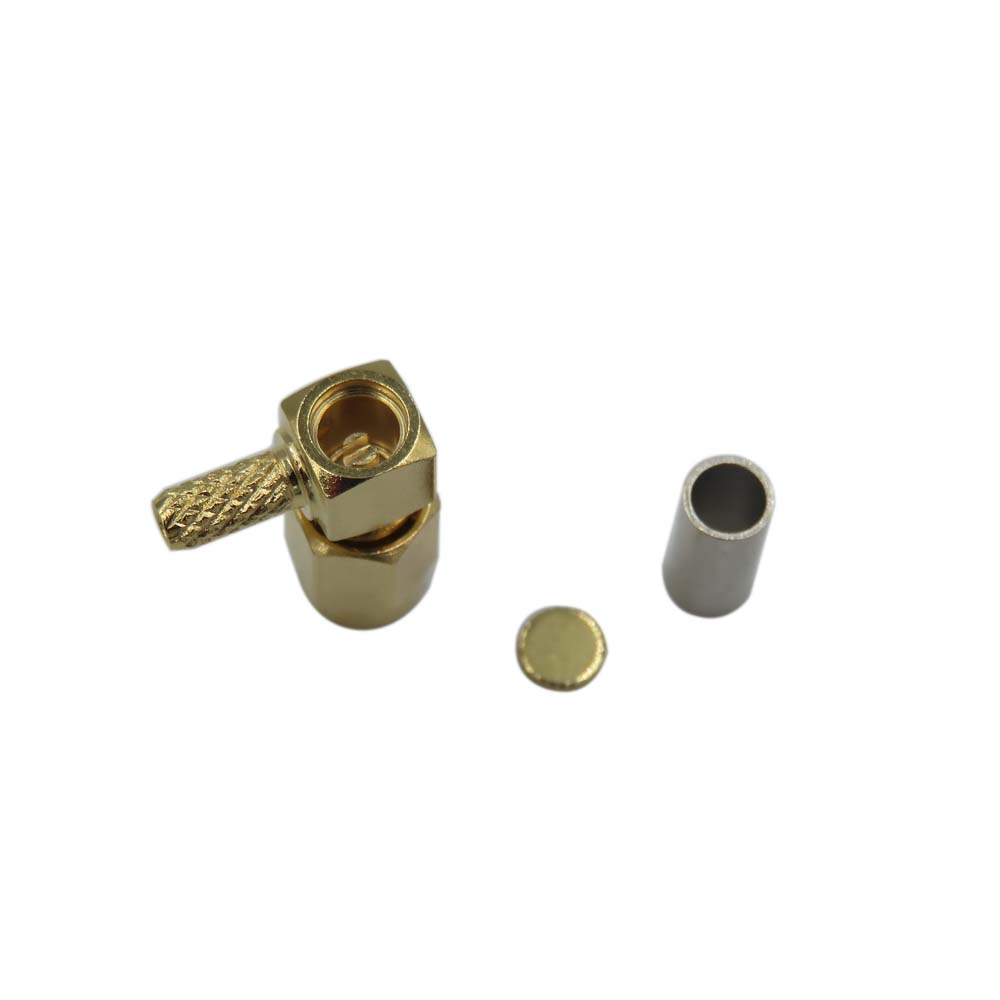

SSMA Male Right Angle Crimp Connector For RG316 Cable

Model No.	SSMA-C-JW1.5
Interface	IEC 60169-15
Electrical
Characteristic Impedance	50ohm
Frequency Range	DC-12.4GHz
VSWR	≤1.25@DC-6GHz
Working Vlotage	250V RMS,50Hz,at sea level
Dielectric Withstanding Voltage	≥750V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤4mΩ	Outer Contact ≤2.5 mΩ
Mating	—
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating
Body	Brass	Au
Insulator	PTFE	—
Center conductor	Phosphor Bronze	Au
Coupling nut	Brass	Au
Sealing cap	Brass	Au
Ferrule	Annealed copper	Ni
Gasket	Silicone rubber	—
Environmental
Operating Temperature	-65 ℃～165 ℃
RoHS Compliant	Yes
