产品名称： 75ohm BNC Female 18.5mm SQ Flange Connector With Receptacle
产品名称： Model Number: BNC-75KFD

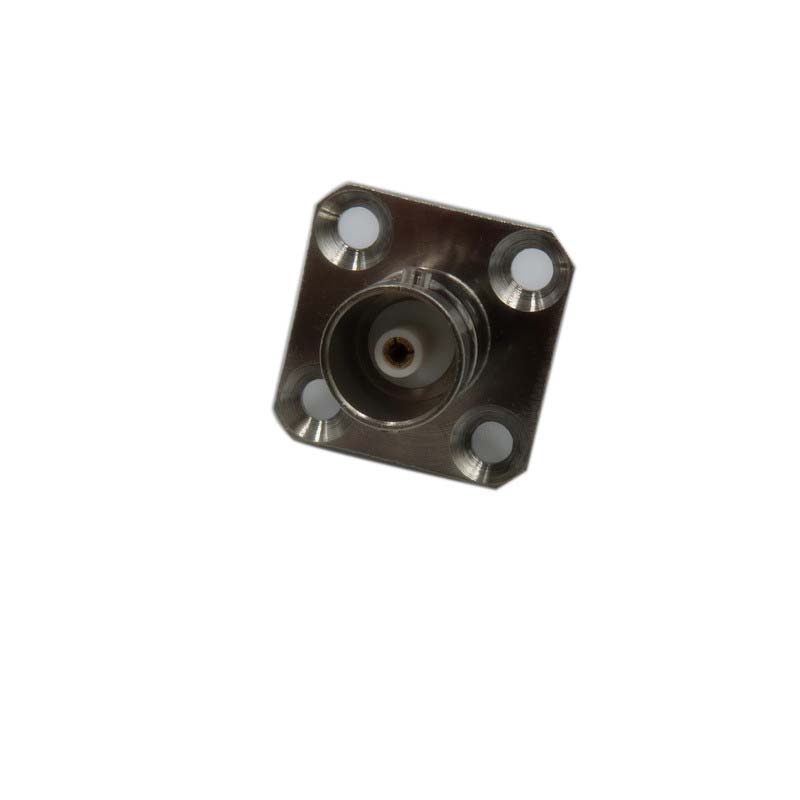

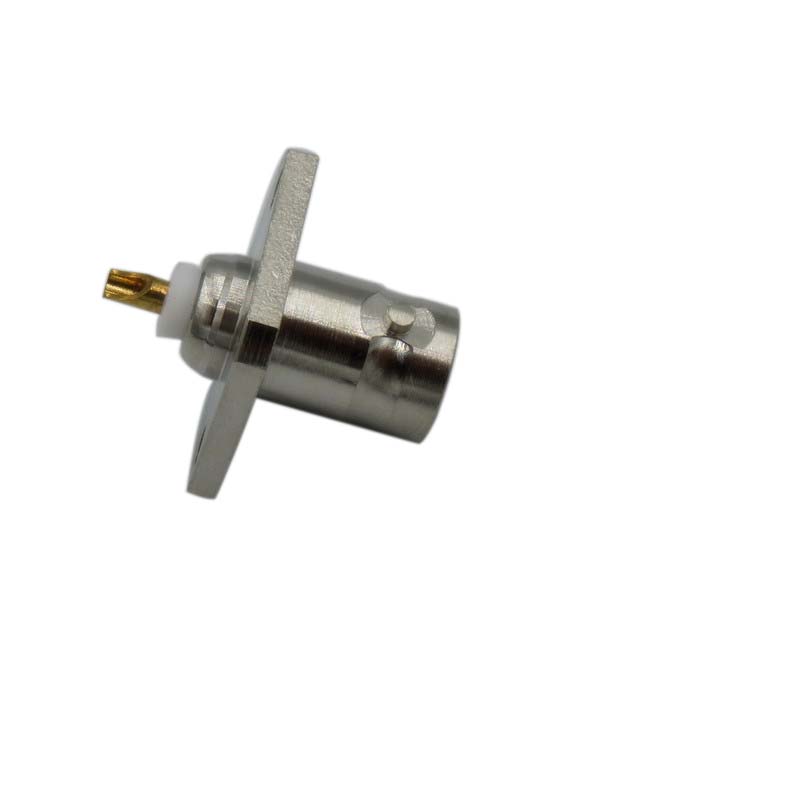

75ohm BNC Female 18.5mm SQ Flange Connector with Receptacle

Model No.	BNC-75KFD
Interface	IEC 60169-8
Electrical
Characteristic Impedance	75ohm
Frequency Range	DC-4GHz
VSWR	≤1.1@DC-3GHz
Working Vlotage	500V RMS,50Hz,at sea level
Dielectric Withstanding Voltage	≥1500V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤1.5mΩ	Outer Contact ≤1.0 mΩ
Mating	—
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating
Body	Brass	Ni
Insulator	PTFE	—
Center conductor	Phosphor Bronze	Au
Environmental
Operating Temperature	-40 ℃～-85 ℃
RoHs Compliant	Yes
