  • 产品名称： BNC Female to MMCX Male Connector Adaptor
  • 产品名称： Model Number : BNC/MMCX-KJ

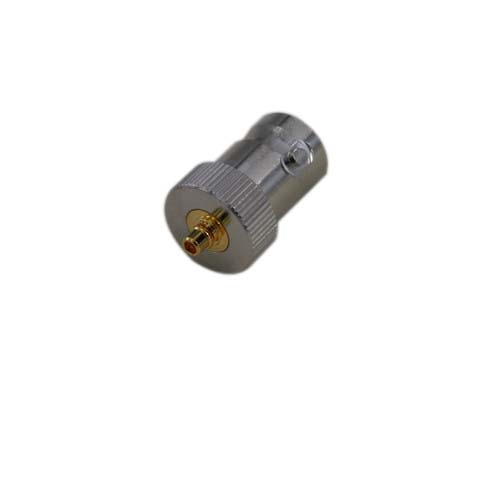

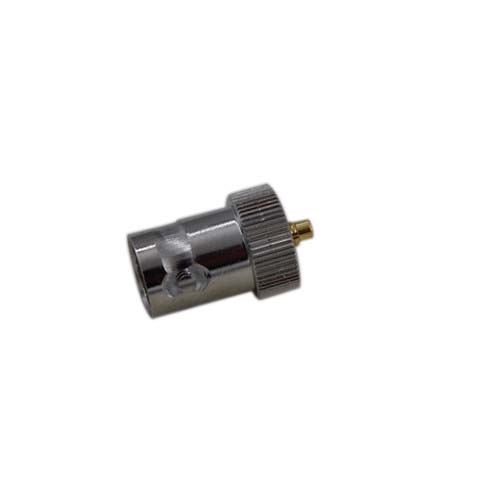

                              BNC Female to MMCX Male Connector Adaptor

Model No.  BNC/MMCX-KJ
Interface  IEC 60169-8/ CECC 22340
Electrical
Characteristic Impedance   50 ohm
Typical Frequency Range                                           DC- 4GHz
VSWR          ≤1.30@DC-4GHz
Insertion Loss    ≤0.35dB
Dielectric Resistance    ≥5000MΩ
Test Voltage   500 V R.M.S,At sea level
Working Voltage   500 V R.M.S,At sea level
Mechanical
Durability   Mating cycles  ≥500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Ni/ Au
Insulator   PTFE  —
Center conductor   Phosphor bronze   Au
Environmental
Operating Temperature  -55 ℃- + 165  ℃
RoHS Compliant    Yes
