产品名称： BNC Male to TNC Male Connector Adaptor
产品名称： Model Number: BNC/TNC-JJ

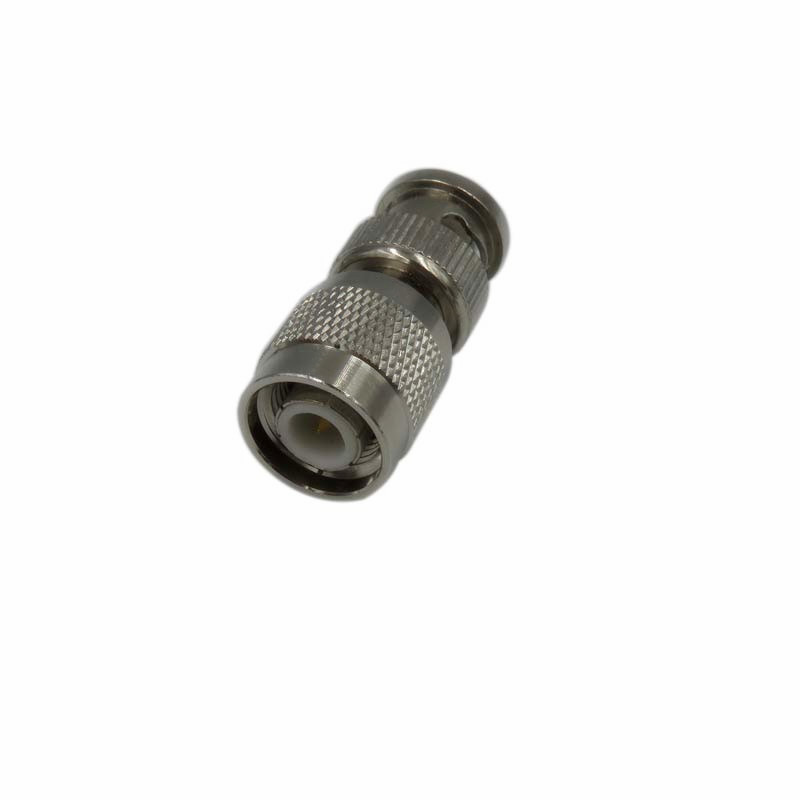

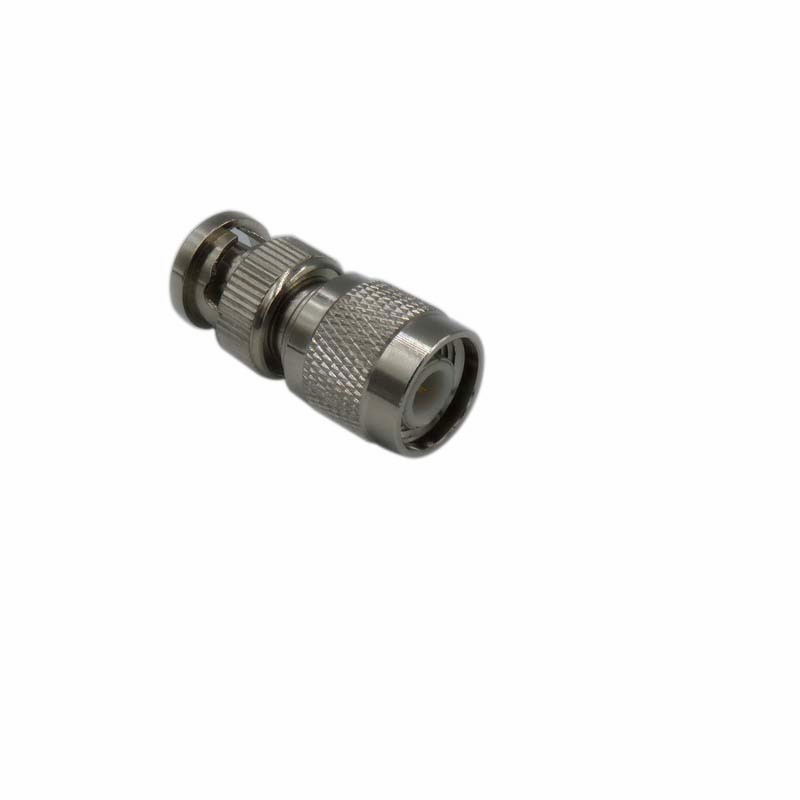

BNC Male to TNC Male Connector Adaptor

Model No.	BNC/TNC-JJ
Interface	IEC 60169-17/ IEC 60169-8
Electrical
Characteristic Impedance	50ohm
Typical Frequency Range	DC- 3GHz
VSWR	≤1.15@DC-3GHz
Insertion Loss	≤0.10dB
Working Voltage	≤500V RMS,50Hz,at sea level
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating
Body	Brass	Ni
Insulator	PTFE	—
Center conductor	Phosphor bronze	Au
Coupling nut	Brass	Ni
Gasket	Silicone rubber	_
Environmental
Operating Temperature	-45℃- + 85 ℃
RoHS Compliant	Yes
