  • 产品名称： 1.6/5.6 Male Crimp Connector For Flex 3 Cable
  • 产品名称： Model Number: L9-C-JFLEX3

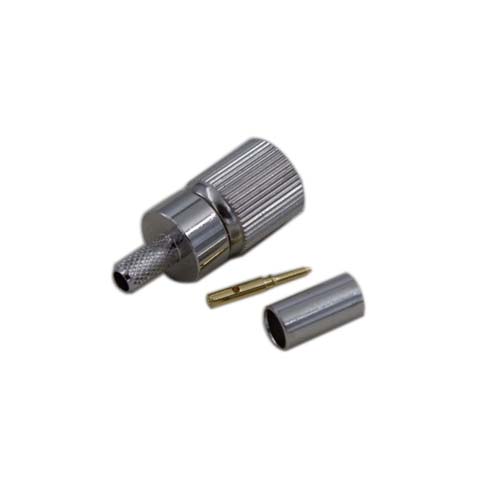

                                  1.6/5.6 Male Crimp Connector For Flex 3 Cable

                                   (Contact attachment:Inner:soldering ;Outer:crimp)

Model No.  L9-C-JFLEX3
Interface  IEC 61169-13;CECC 22240;DIN47259
Electrical
Characteristic Impedance   75ohm
Typical Frequency Range                                           DC-1GHz
VSWR          ≤1.25@DC-1GHz
Dielectric Withstanding Voltage  ≥1000 V R.M.S,At sea level
Dielectric Resistance    ≥10000MΩ
Contact Resistance    Center Contact ≤4mΩ   Outer Contact ≤2mΩ
Working voltage    330V
Mechanical
Durability   Mating cycles ≥500
Center Conductor Retention Force  ≥0.5N
Coupling Nut Retention Force  ≥300N
Material and Plating
Parts Name  Material   Plating
Body  Brass   Ni
Insulator   PTFE  —
Coupling nut  Brass  Ni
Center conductor   Phosphor Bronze    Au
Resilient contact  Phosphor bronze   Au
Ferrule   Annealed copper  Ni
Environmental
Operating Temperature  -40℃～+85℃
RoHS Compliant    Yes
