  • 产品名称: MMCX Female Connector For P.C.B Mount
  • 产品名称: Model Number : MMCX-2KE

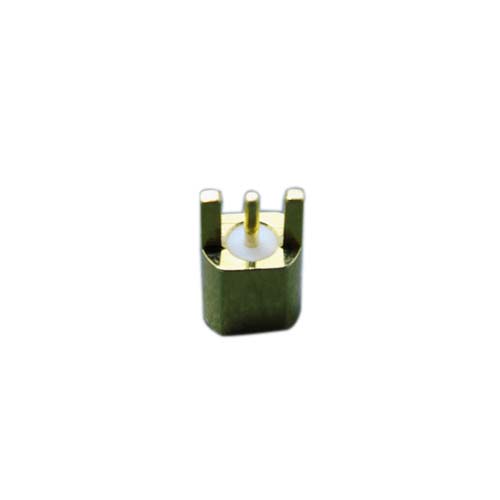

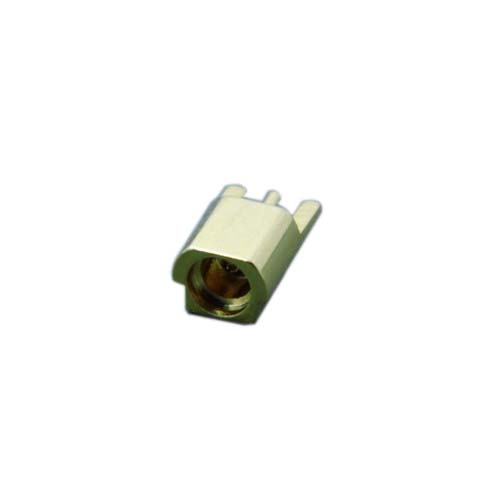

                                       MMCX Female Connector For P.C.B Mount

Model No. MMCX-2KE
Interface CECC 22340
Electrical
Characteristic Impedance  50ohm
Frequency Range                                          DC-6GHz
VSWR         1.15@DC-3GHz
Dielectric Withstanding Voltage 500V RMS,50Hz,at sea level
Working Vlotage  170V RMS,50Hz,at sea level
Dielectric Resistance   1000MΩ
Contact Resistance    Center Contact 5mΩ Outer Contact 2.5 mΩ
Mechanical
Centre Conductor Retention Force  0.28N
Engagement Force  15N
Disengagement Force  6N
Durability  Mating cycles  500
Material and Plating
Parts Name Material  Plating
Body Brass  Au
Insulator  PTFE
Center Conductor  Phosphor Bronze  Au
Environmental
Operating Temperature   -55℃~ +155
RoHS Compliant  Yes
