  • 产品名称: BNC Female Crimp Connector For RG316 Cable
  • 产品名称: Model Number : BNC-C-K1.5

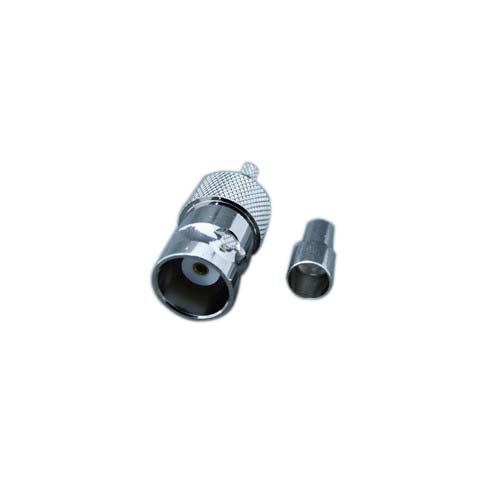

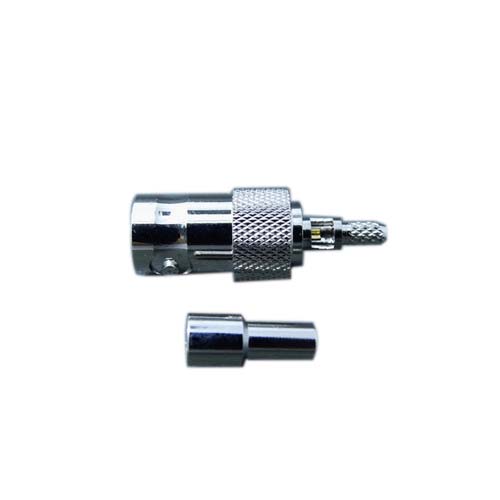

         BNC Female Crimp Connector For RG316 Cable

         (Contact attachment:Inner:soldering ;Outer:crimp)

Model No.  BNC-C-K1.5
Interface  IEC 60169-8
Electrical
Characteristic Impedance   50 ohm
Frequency Range                                           DC-4GHz
VSWR            1.30@DC-1000MHz
Dielectric Withstanding Voltage  ≥1500V RMS,50Hz,at sea level
Working Vlotage   500V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center Contact 1.5mΩ   Outer Contact 1.0 mΩ
Mating  —
Mechanical
Durability   Mating cycles  500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Ni
Insulator   PTFE  —
Inner Conductor   Phosphor Bronze    Au
Ferrule  Annealed Copper  Ni
Spring  Stainless steel
Gasket    Silicone rubber
Environmental
Operating Temperature  -40 ℃~-85
RoHs Compliant   Yes
