  • 产品名称: N Type Female Right Angle Clamp Connector For 1/2" Superflexible Cable
  • 产品名称: Model Number: N-KW1/2S

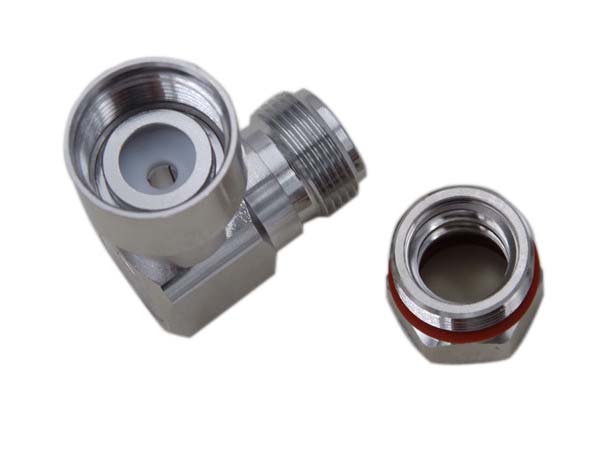

    N Female Right Angle Clamp Connector For 1/2" Superflexible Cable

         (Contact attachment:Inner:captivated ;Outer:clamp)

Model No.  N-KW1/2S
Interface  IEC 60169-16
Electrical
Characteristic Impedance   50ohm
Frequency Range                                           DC-11GHz
VSWR          ≤1.10 @DC-2.7GHz;≤1.12 @2.7-3.7GHz;
Intermodulation 3rd (PIM3)    ≤-155dBc@2×20W
Dielectric Withstanding Voltage  2500V RMS,50Hz,at sea level
Working Vlotage   1500V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center Contact 1mΩ  Outer Contact 0.25 mΩ
Mating  —
Mechanical
Durability   Mating cycles  500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Tri-alloy
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Ag
Back nut   Brass   Ni
Gasket     Silicone Rubber   —
Press ring  Brass   Ag
Environmental
Operating Temperature  -40 - + 85
Weatherproof Rate       IP68
RoHS (2002/95/EC)   Yes
Note  Suited Cable: Andrew FSJ4-50B,RFS SCF12-50,Leoni 1/2”S,Hansen RF5012S,Eupen EC4HF-50
