  • 产品名称： N Type Male Clamp Connector For 7/8" AVA5-50FX Cable
  • 产品名称： Model Number: N-J7/8AL

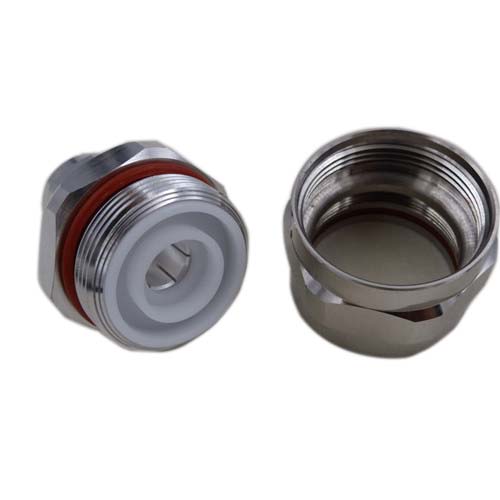

              N Male Clamp Connector For 7/8" AVA5-50FX Cable

              (Contact attachment:Inner:captivated ;Outer:clamp)

Model No.  N-J7/8AL
Interface  IEC 60169-16
Electrical
Characteristic Impedance   50ohm
Frequency Range                                            DC-5GHz
VSWR          ≤1.10@DC-2.7GHz ;≤1.12@2.7-3.6GHz
Insertion Loss      ≤0.06dB@2200MHz
Intermodulation 3rd (PIM3)    ≤ -157dBc@2×20W
Dielectric Withstanding Voltage  ≥2500V RMS,50Hz,at sea level
Working Vlotage   1500V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
RF Power     10KW(max)
Contact Resistance    Center Contact ≤1mΩ  Outer Contact ≤0.25 mΩ
Mating  —
Mechanical
Coupling Nut proof Torque   4.5N/m
Durability   Mating cycles  ≥500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Tri-alloy
Insulator   PTFE  —
Center conductor   Beryllium bronze  Ag
Coupling nut    Brass    Tri-alloy
Back nut   Brass   Tri-alloy
Gasket     Silicone Rubber   —
Environmental
Operating Temperature  -45 ℃- + 85  ℃
Weatherproof Rate       IP68
RoHS (2002/95/EC)   Yes
Note  It can also be suited to AVA5-50 and FLX-780 cables.
