  • 产品名称： RF Coaxial SMA Female To SMA Female Bulkhead Connector Adapter
  • 产品名称： Model Number: SMA-KKY

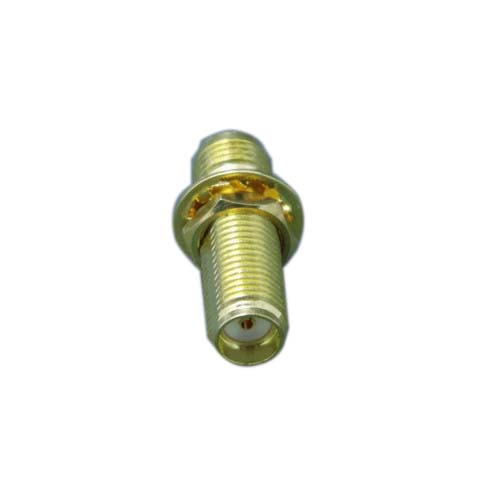

        SMA Female To SMA Female Bulkhead Connector Adapter

Model No. SMA-KKY
Interface IEC 60169-15
Electrical
Characteristic Impedance  50ohm
Typical Frequency Range                                          DC-12.4GHz
VSWR         ≤1.10@DC-3GHz; ≤1.20@3-6GHz;
Dielectric Withstanding Voltage ≥1000V RMS,50Hz,at sea level
Working Vlotage  335V RMS,50Hz,at sea level
Dielectric Resistance   ≥5000MΩ
Contact Resistance   Center Contact ≤3mΩ Outer Contact ≤2.5 mΩ
Mating —
Mechanical
Durability   Mating cycles  ≥500
Material and Plating
Parts Name Material  Plating
Body Brass  Au
Insulator  PTFE(Teflon) —
Center conductor  Beryllium copper Au
Fastening nut  Brass  Au
Washer  Phosphor copper     Au
Environmental
Operating Temperature Range               -45 ℃～-125  ℃
RoHS Compliant                         Yes
