  • 产品名称： SMA RP Female to SMA Female Right Angle Connector Adaptor
  • 产品名称： Model Number: SMA-KKW/KJW

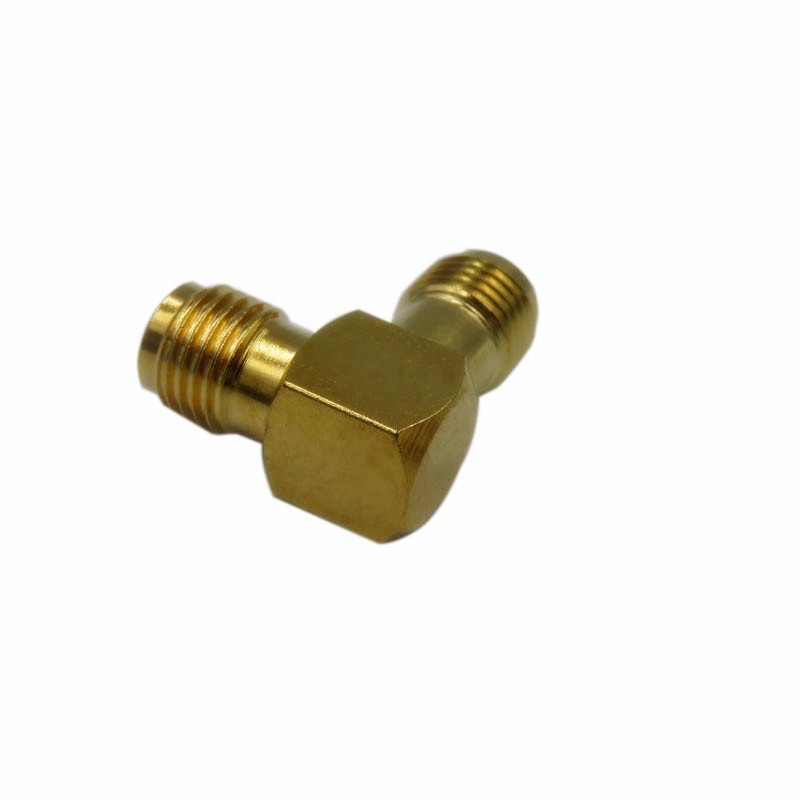

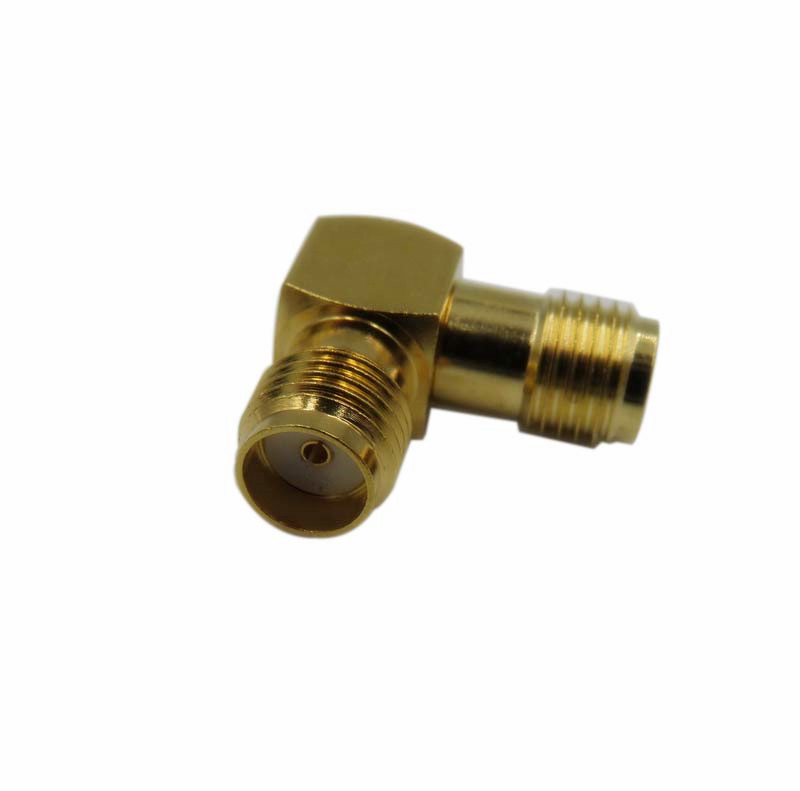

                        RF Coaxial SMA RP Female to SMA Female Right Angle Connector Adaptor

Model No. SMA-KKW/KJW
Interface CECC22110, IEC 60169-15,MIL-C-39012
Electrical
Characteristic Impedance  50ohm
Frequency Range                                          DC-12.4GHz
VSWR         ≤1.10@DC-3GHz; ≤1.20@3-6GHz;
Working Vlotage  335V RMS,50Hz,at sea level
Dielectric Withstanding Voltage ≥1000V RMS,50Hz,at sea level
Dielectric Resistance   ≥5000MΩ
Contact Resistance    Center Contact ≤3mΩ   Outer Contact ≤2.5 mΩ
Durability   Mating cycles  ≥500
Material and Plating
Parts Name Material  Plating
Body Brass  Au
Insulator  PTFE —
Center conductor Phosphor copper   Au
Operating Temperature -45 ℃～-85  ℃
RoHS Compliant   Yes
