  • 产品名称： 4.3/10 Male To 4.3/10 Male Connector Adaptor
  • 产品名称： Model Number:4.3/10-JJ

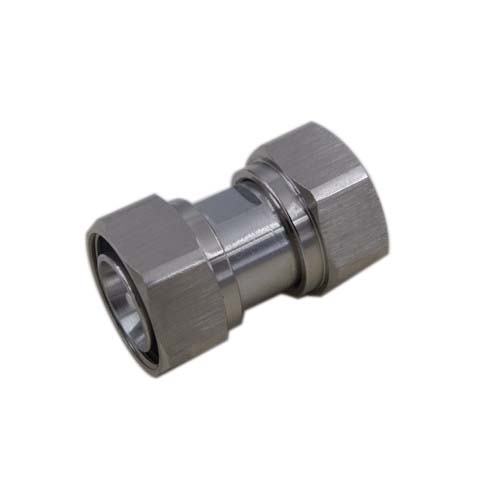

                            4.3/10 Male To 4.3/10 Male Connector Adaptor

Model No.   4.3/10-JJ
Interface    IEC 61169-54
Electrical
Characteristic Impedance   50ohm
Typical Frequency Range                                           DC-12GHz
VSWR         ≤1.15@DC-6GHz
Intermodulation 3rd order      ≤ -160dBc@2×20W
Insertion Loss  ≤0.05dB√f(GHz)dB
Dielectric Withstanding Voltage  ≥2500V r.ms.at sea level
Working Voltage       500 V r.m.s
Power handing  500 W @2GHz/90℃
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center contact ≤1mΩ  Outer contact ≤1mΩ
Mechanical
Durability   Mating cycles ≥500
Material and Plating
Parts Name  Material  Plating
Body  Brass  Tri-alloy
Insulator   PTFE —
Center conductor   Phosphor Bronze   Ag
Couping nut  Brass Ni
Gasket  Silicone rubber —
Environmental
Operating Temperature  -40℃～+85℃
Weatherproof Rate       IP68
RoHS (2002/95/EC)  Compliant Yes
