  • 产品名称： 4.3/10 Male Connector For RG401(.250") Cable
  • 产品名称： Model Number: 4.3/10-JB5

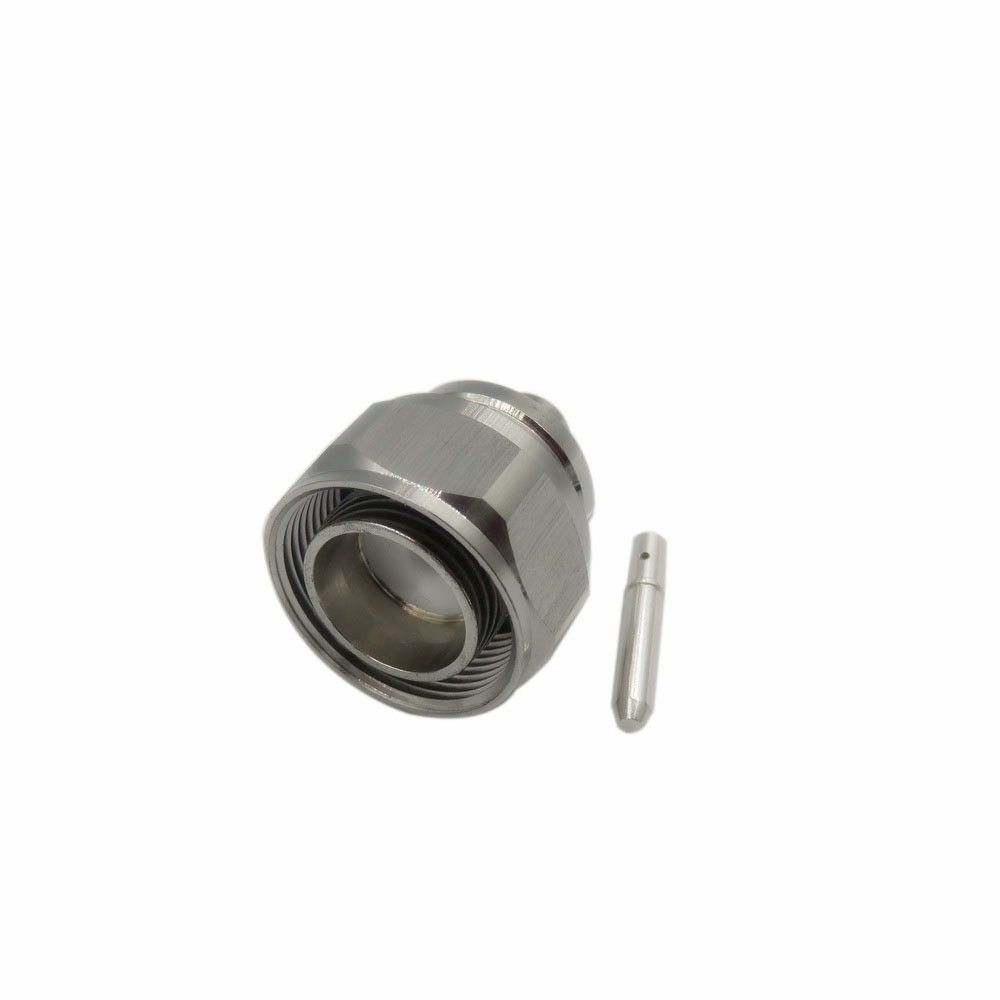

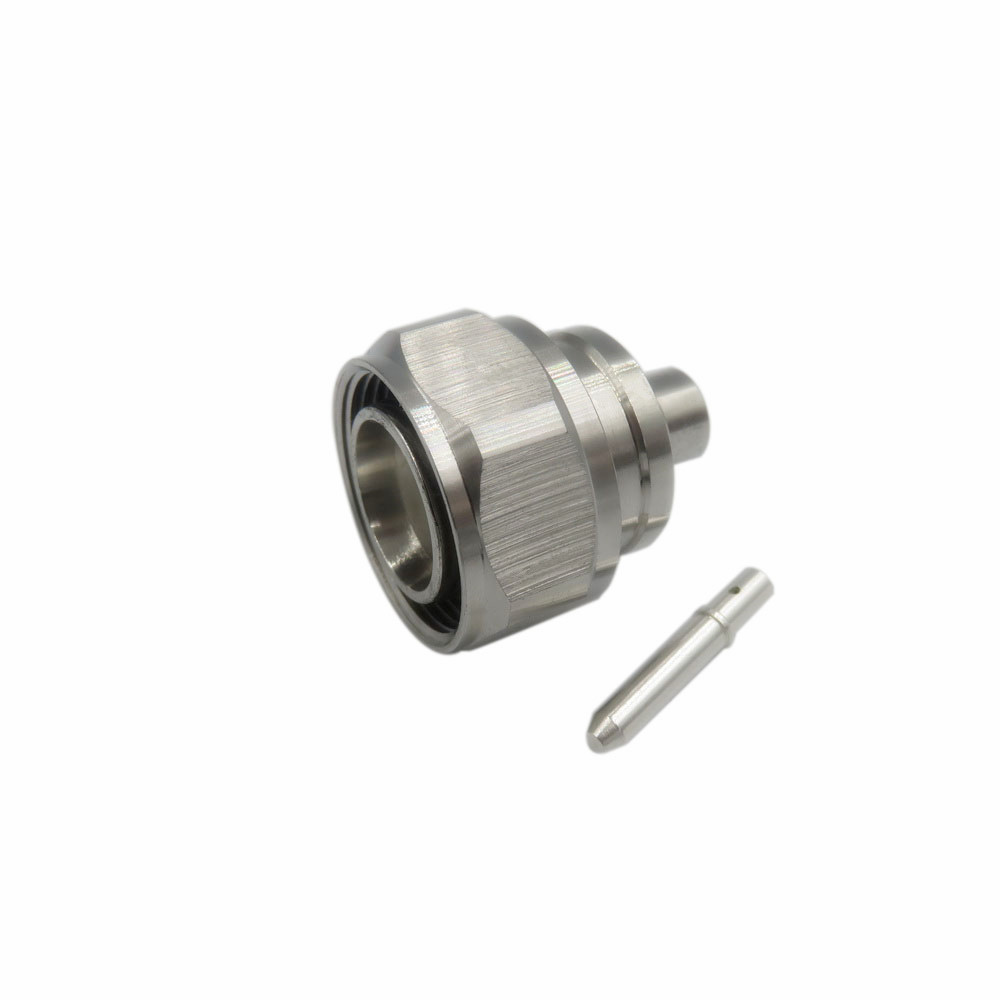

                          4.3/10 Male (Soldering) Connector For RG401(.250") Cable

                           (Contact attachment:Inner:soldering;Outer:soldering)

Model No.  4.3/10-JB5
Interface  IEC61169-54
Electrical
Characteristic Impedance   50ohm
Typical Frequency Range                                           DC-12GHz
VSWR          ≤1.20@DC-6GHz
Intermodulation 3rd order    ≤ -160dbc(@2X20W)900-1800MHZ
Insertion Loss   ≤0.05dB√f(GHz)dB
Dielectric Withstanding Voltage  ≥2500V r.ms.at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center contact ≤1mΩ  Outer contact ≤1mΩ
Working voltage    500 V r.m.s
Power handing    500 W @2GHz/90℃
Mechanical
Durability   Mating cycles ≥500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Tri-alloy
Insulator   PTFE  —
Coupling nut  Brass  Tri-alloy
Center conductor   Phosphor Bronze    Ag
Gasket  Silicone rubber  —
Environmental
Operating Temperature  -40℃～+85℃
Weatherproof Rate       IP68
RoHS (2002/95/EC)  Compliant Yes
