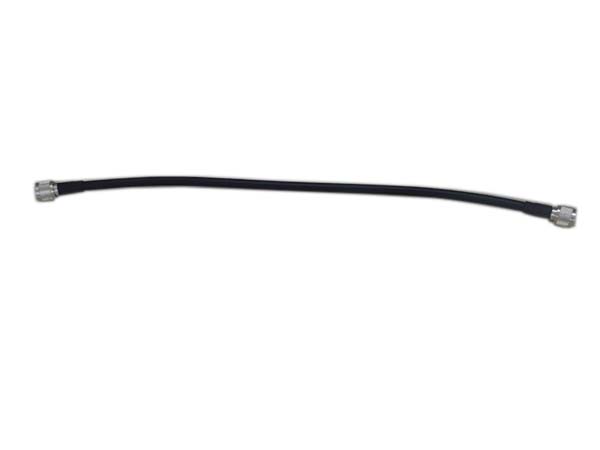

                 500mm LMR400 Cable Assembly With N Male Crimp Connectors On Both Sides

Model No.  N-C-J400/N-C-J400-500
Connector Type  N male crimp connector for LMR400 cable
 N male crimp connector for LMR400  cable
Cable Type(Name)  LMR400 cable
Cable Length   500mm (Customized Length Available)
Connectors Interface   IEC 60169-16
Characteristic Impedance    50 ohm
Tipical Frequency Range   DC-6GHz
VSWR   ≤1.15@DC-3GHz;≤1.25@3-6GHz;
Insertion Loss   ≤0.35dB@2.5GHz
Dielectric Withstanding Voltage   ≥2500V RMS,50Hz,at sea level
Working Voltage    ≤1000V RMS,50Hz,at sea level
Dielectric Resistance   ≥5000MΩ
Durability    ≥500 cycles
Material and Plating (Connectors)
Parts Name  Material   Plating
Body  Brass    Ni
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Au
Coupling nut  Brass   Ni
Gasket      Silicone Rubber   —
Ferrule  Annealed copper   Ni
Shrinkable tube   PET    —
Operating Temperature  -40 ℃-+85
Weatherproof Rate       IP67
RoHs Compliant   Yes
