Product
  • 产品名称： 1500mm LMR400 Cable Assembly With N Male Crimp And N Male Crimp Connectors
  • 产品名称： Model Number: N-C-J400/N-C-J400-1500

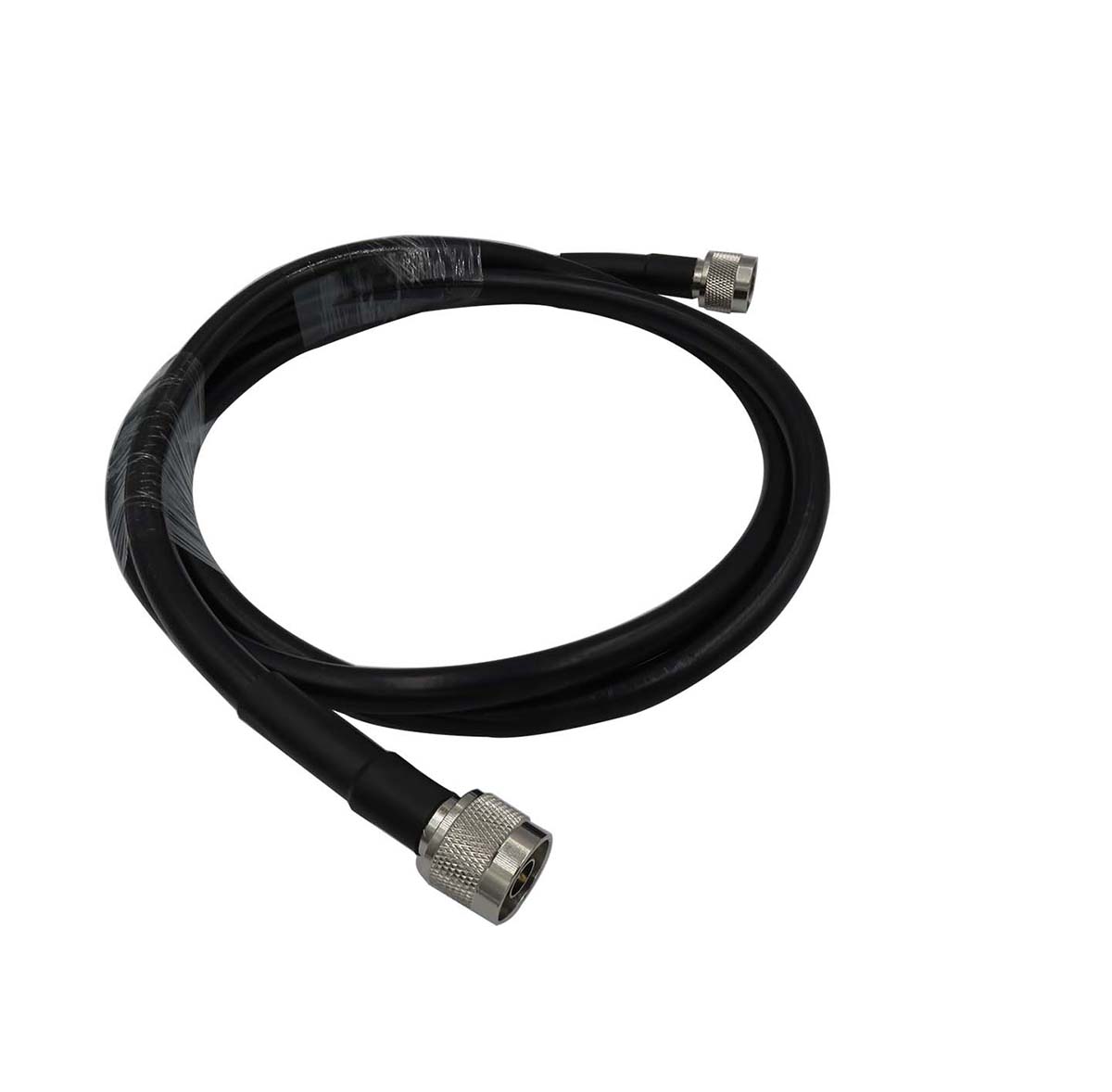

              1500mm LMR400 Cable Assembly with  N Male Crimp And N Male Crimp Connectors

Model No. N-C-J400/N-C-J400-1500
Connector Type N male crimp connector for LMR400 cable
N male crimp connector for LMR400  cable
Cable Type(Name) LMR400 cable
Cable Length  1500mm (Customized Length Available)
Connectors Interface IEC 60169-16
Characteristic Impedance   50 ohm
Tipical Frequency Range DC-6GHz
VSWR  ≤1.15@DC-3GHz;≤1.25@3-6GHz;
Dielectric Withstanding Voltage   ≥2500V RMS,50Hz,at sea level
Working Voltage   ≤1000V RMS,50Hz,at sea level
Dielectric Resistance   ≥5000MΩ
Durability   ≥500 cycles
Material and Plating (Connectors)
Parts Name Material  Plating
Body Brass  Ni
Insulator  PTFE —
Center conductor  Phosphor Bronze   Au
Coupling nut Brass  Ni
Gasket     Silicone Rubber  —
Ferrule Annealed copper  Ni
Shrinkable tube   PET   —
Operating Temperature -40 ℃-+85  ℃
Weatherproof Rate      IP67
RoHs Compliant  Yes
