Location：Home>>Product >> RF Cable Assembly >> LMR series cable assembly

产品名称： 1800mm LMR240 Jumber Cable Assembly with Qma Male and N Female Bulkhead Connectors
产品名称： Model Number: LMR240-QMAM-NFB-180CM

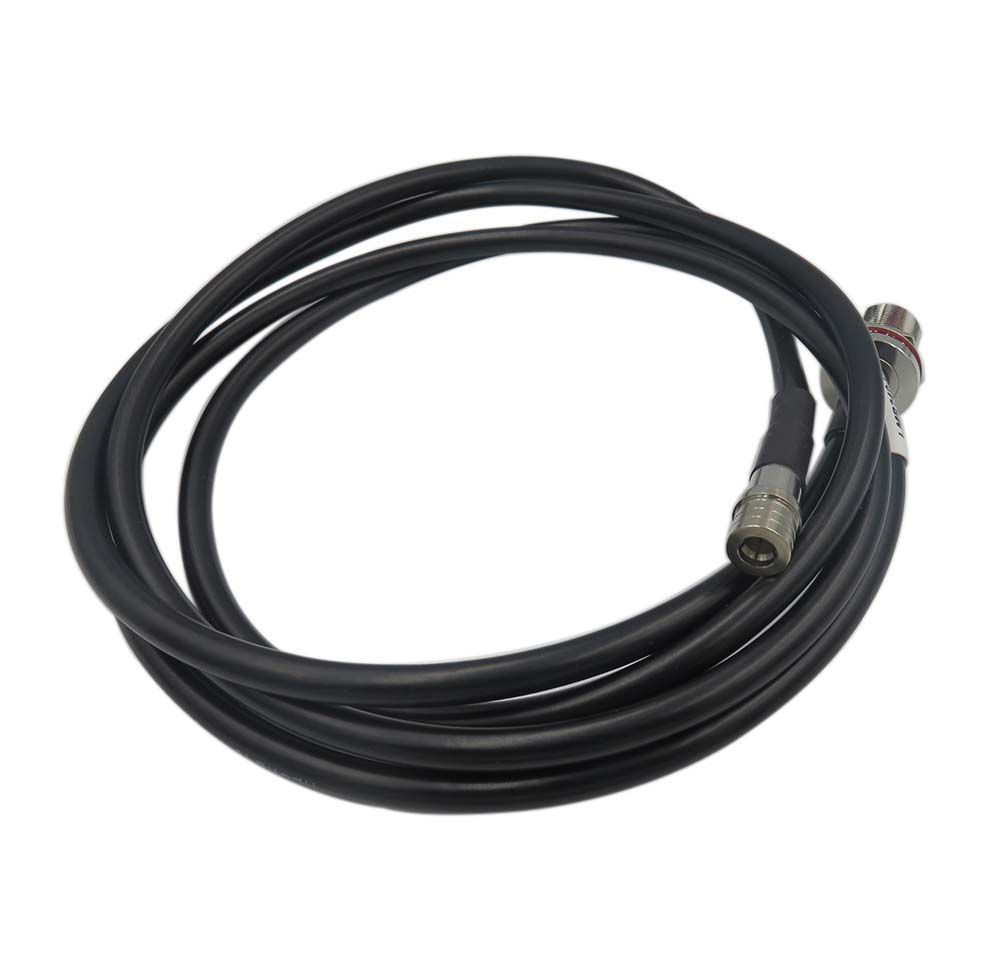

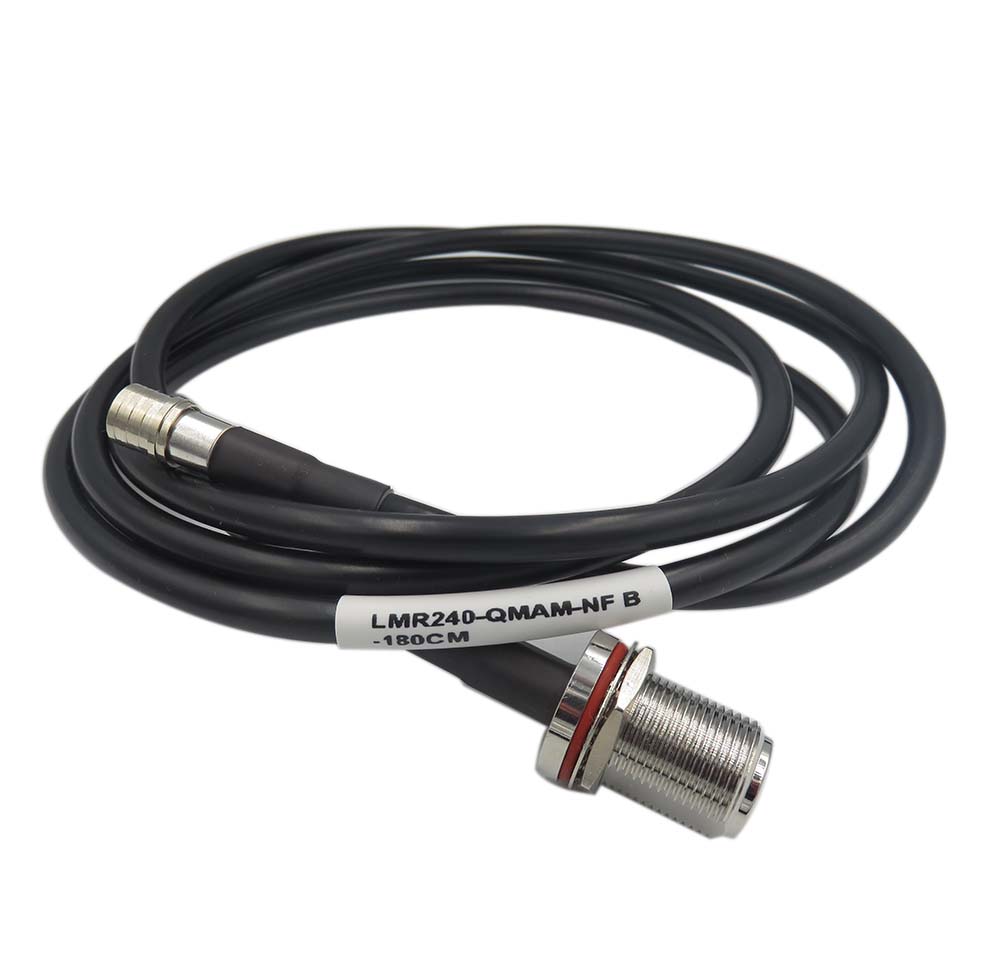

1800mm LMR240 Jumber Cable Assembly with Qma Male and N Female Bulkhead Connectors

Model No.	LMR240-QMAM-NFB-180CM
Connector Type	QMA male crimp connector for LMR240 cable
	N female bulkhead crimp connector for LMR240 cable
Cable Type(Name)	LMR240 cable
Cable Length	1800mm (Customized Length Available)
Connectors Interface	IEC 60169-1/IEC60169-16
Characteristic Impedance	50 ohm
Tipical Frequency Range	DC-6GHz
VSWR	≤1.3@DC-6GHz
Insertion Loss	-1.0MAX
Dielectric Withstanding Voltage	≥1000V RMS,50Hz,at sea level
Working Voltage	≤480V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Durability	≥500 cycles
Material and Plating (Connectors)
Parts Name	Material	Plating
Body	Brass	Tri-alloy
Insulator	PTFE	—
Center conductor	Phosphor Bronze	Au
Coupling nut	Brass	Tri-alloy
Gasket	Silicone Rubber	—
Ferrule	Annealed copper	Ni
Test	96 Hours Salt Spray
Shrinkable tube	PET	—
Operating Temperature	-40 ℃-+85 ℃
Weatherproof Rate	IP67
RoHs Compliant	Yes
