  • 产品名称： 10000mm LMR240 Jumper Cable Assembly With N Male Crimp And SMA Male Crimp Connectors
  • 产品名称： Model Number: N-C-J240/SMA-C-J240-10000

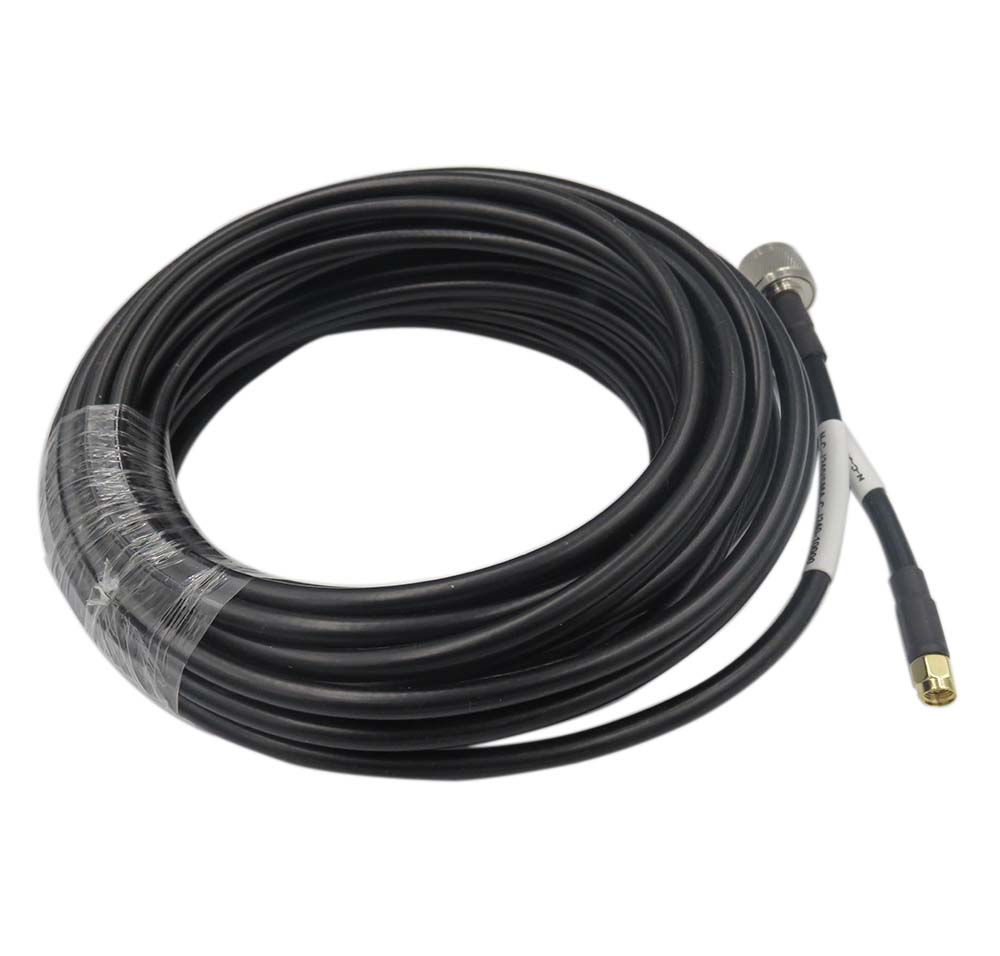

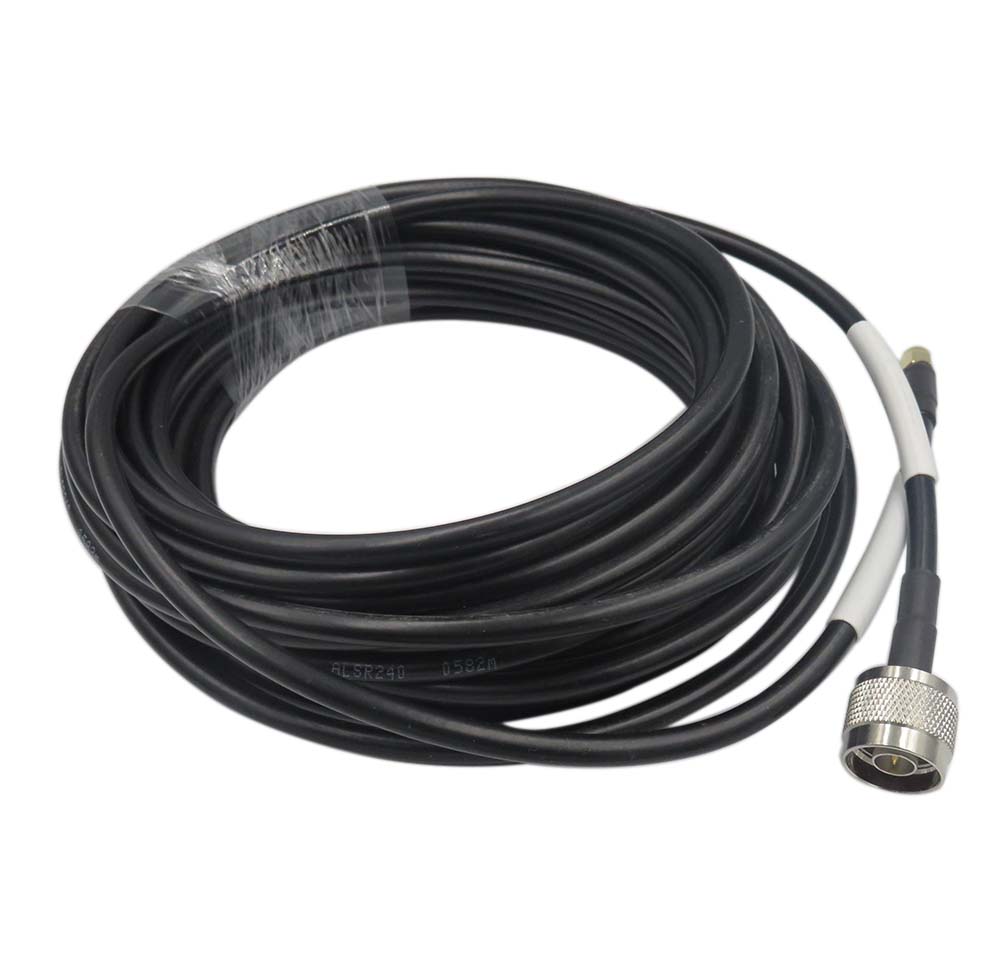

   10000mm LMR240 Jumper Cable Assembly With N Male Crimp And SMA Male Crimp Connectors

Model No.  N-C-J240/SMA-C-J240-10000
Connector Type  N male crimp connector for LMR240 cable
 SMA male crimp connector for LMR240 cable
Cable Type(Name)  LMR240 cable
Cable Length   10000mm (Customized Length Available)
Connectors Interface   IEC 60169-15/IEC 60169-16
Characteristic Impedance    50 ohm
Tipical Frequency Range   DC-6GHz
VSWR  ≤1.15@DC-3GHz;≤1.25@3-6GHz;
Insertion Loss  ≤4.74dB@2.5GHz
Dielectric Withstanding Voltage   ≥1500V RMS,50Hz,at sea level
Working Voltage    ≤480V RMS,50Hz,at sea level
Dielectric Resistance   ≥5000MΩ
Durability    ≥500 cycles
Material and Plating (Connectors)
Parts Name  Material   Plating
Body  Brass   Ni/Au
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Au
Coupling nut  Brass   Ni/Au
Gasket      Silicone Rubber   —
Ferrule  Annealed copper   Ni
Shrinkable tube   PET    —
Operating Temperature  -40 ℃-+85  ℃
Weatherproof Rate       IP67
RoHs Compliant   Yes
