  • 产品名称： N Type Female 25mm Square Flange Connector For RG402 (.141”) Cable
  • 产品名称： Model Number: N-KFB3

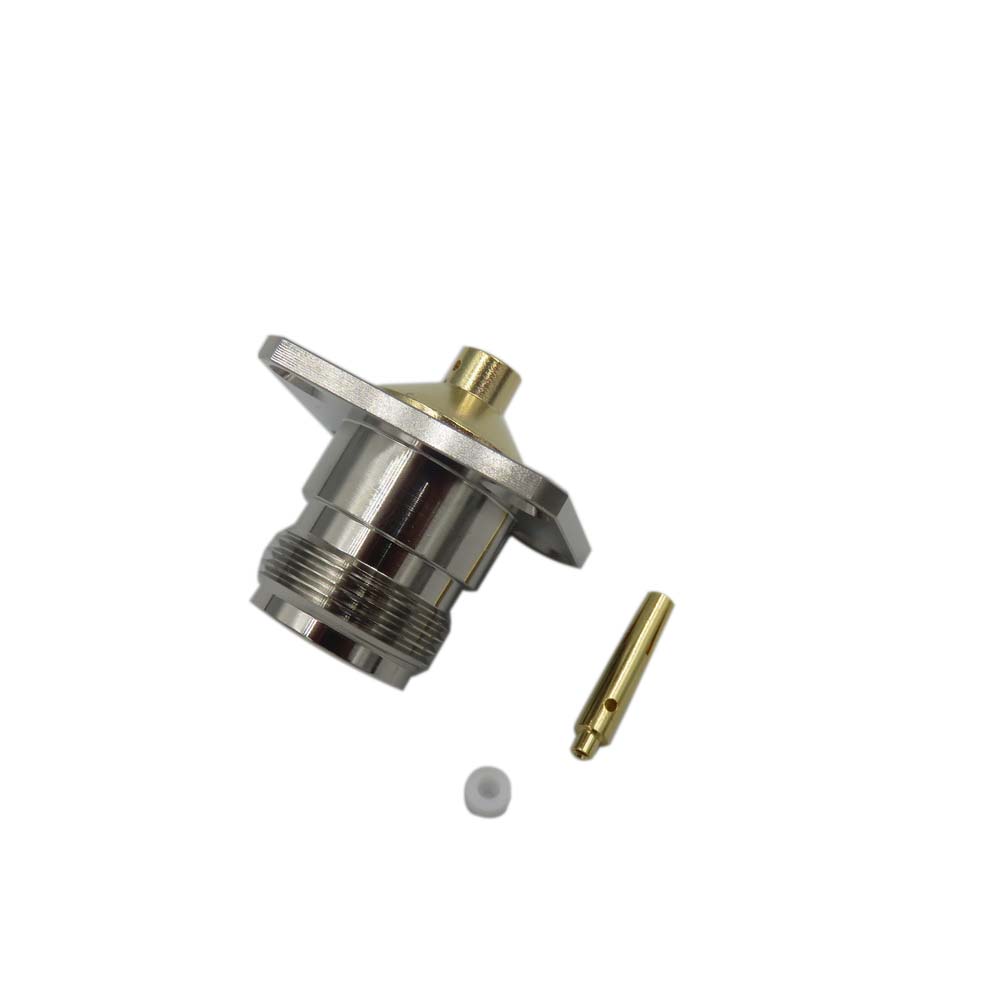

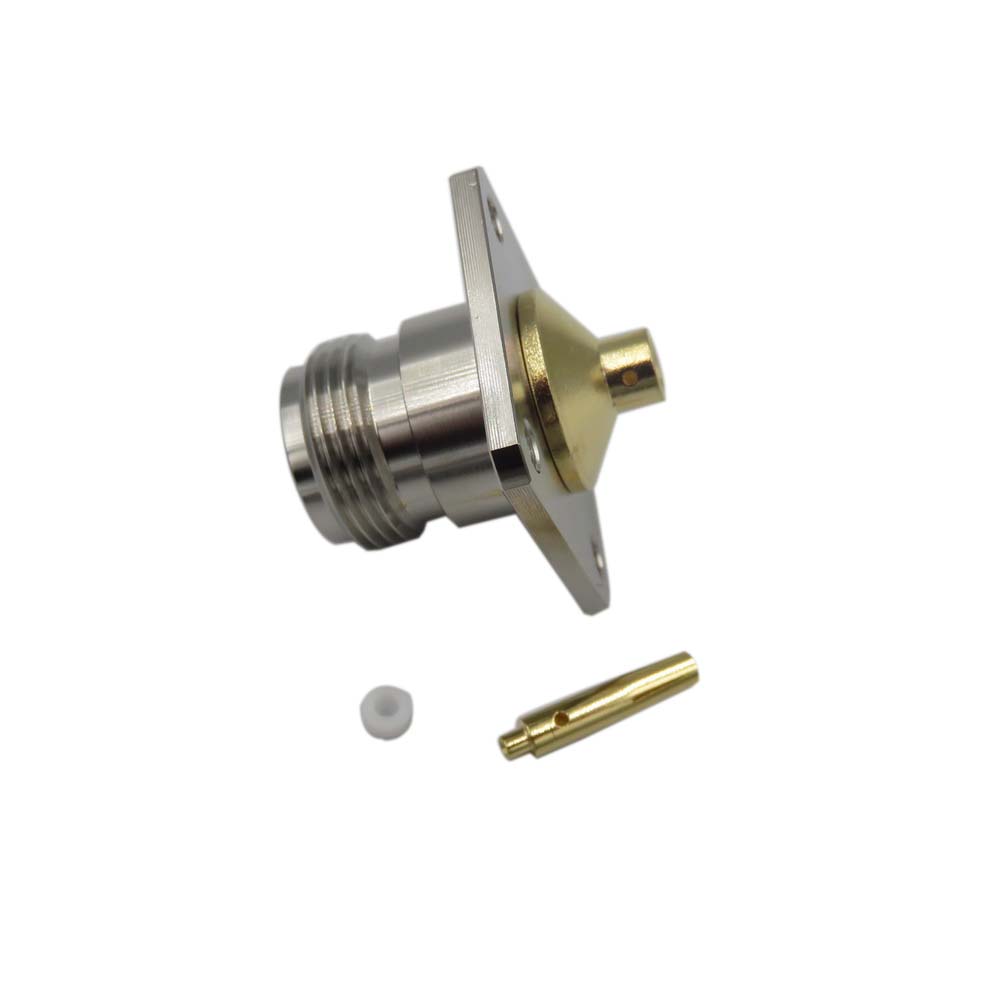

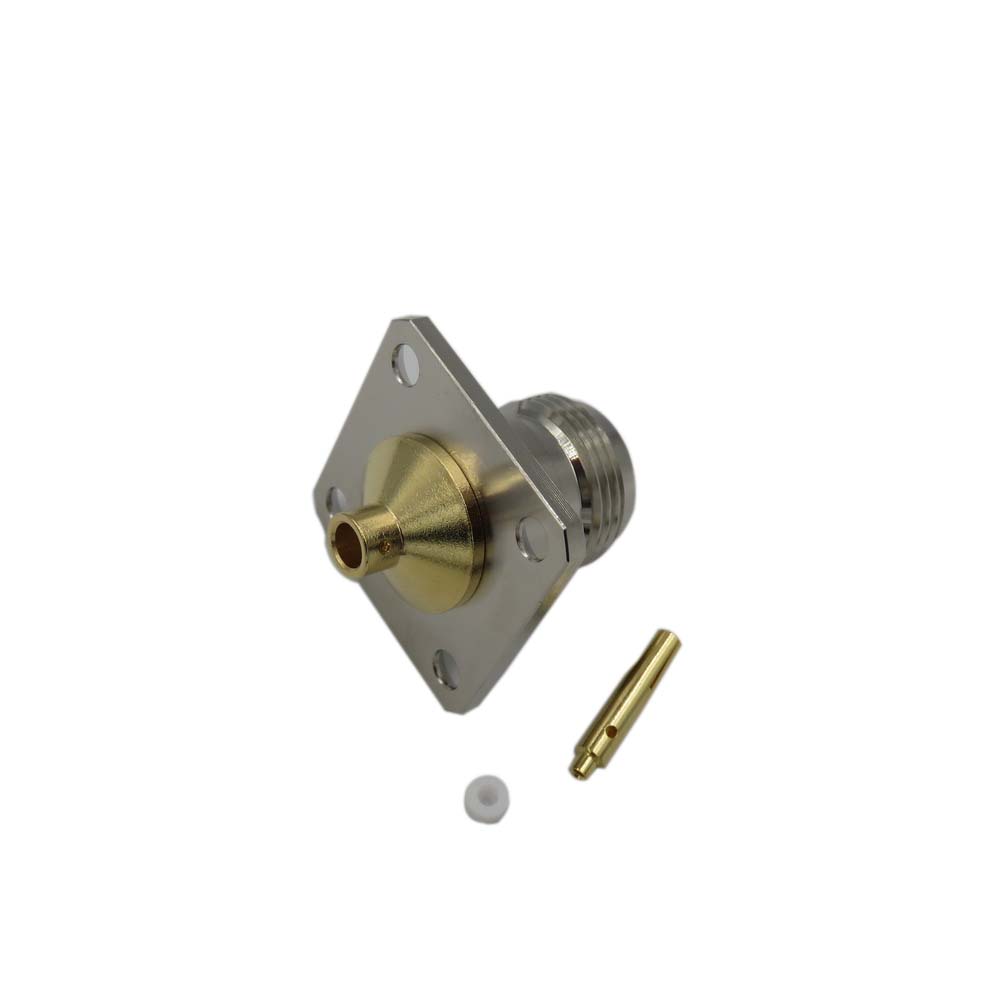

   N Type Female 25mm Square Flange Connector For RG402 (.141”) Cable

       (Contact attachment:Inner:soldering ;Outer:soldering)

Model No.  N-KFB3
Interface  IEC 60169-16
Electrical
Characteristic Impedance  50ohm
Frequency Range                                          DC-11GHz
VSWR         ≤1.10@DC-3GHz,≤1.20@3-6GHz
Dielectric Withstanding Voltage  ≥2500V RMS,50Hz,at sea level
Working Vlotage   1000V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center Contact ≤1mΩ   Outer Contact ≤0.25 mΩ
Mating  —
Mechanical
Durability   Mating cycles  ≥500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Ni
Insulator   PTFE  —
Inner Conductor   Phosphor Bronze    Au
Back nut     Brass   Au
Environmental
Operating Temperature  -40 ℃-+ 85  ℃
Weatherproof Rate       IP67
RoHS Compliant     Yes
