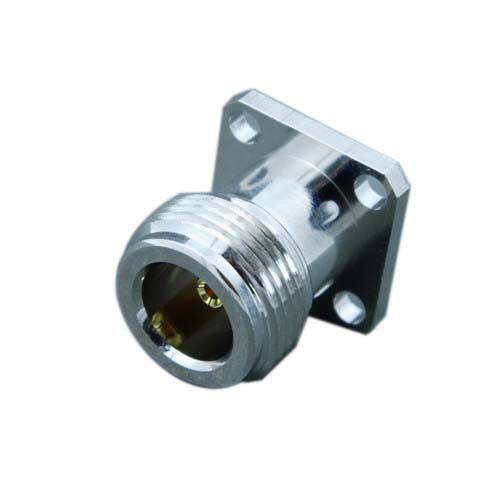

       N Type Female 17.5mm SQ Flange Connector With 0.13-2.95mm TAB Pin

Model No.  N-KF-0.13-2.95
Interface   IEC 60169-16
Electrical
Characteristic Impedance   50ohm
Frequency Range                                             DC-11GHz
VSWR          1.10 @DC-3GHz; 1.20 @3-6GHz
Dielectric Withstanding Voltage  ≥2500V RMS,50Hz,at sea level
Working Vlotage   1000V RMS,50Hz,at sea level
Dielectric Resistance    5000MΩ
Contact Resistance    Center Contact 1mΩ   Outer Contact 0.25 mΩ
Mating  —
Mechanical
Durability   Mating cycles  500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Ni
Insulator   PTFE  —
Inner Conductor   Beryllium bronze   Au
Environmental
Operating Temperature  -40 -+ 85
Weatherproof Rate       IP67
RoHS Compliant     Yes
