  • 产品名称： N Type Male Crimp Connector For LMR400 Cable C
  • 产品名称： Model Number: N-C-J400C

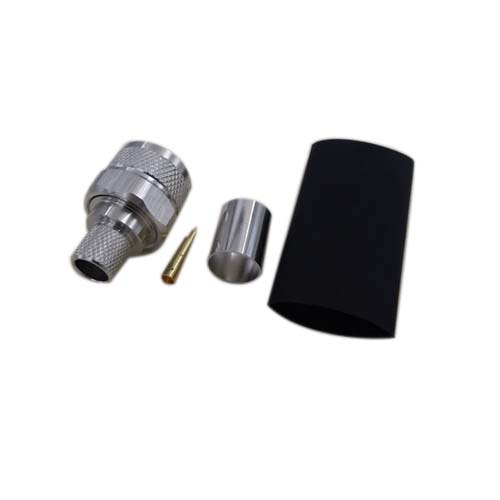

          N Male Crimp Connector For LMR400 Cable

        (Contact attachment:Inner:soldering ;Outer:crimp)

Model No.  N-C-J400C
Interface   IEC 60169-16
Electrical
Characteristic Impedance   50ohm
Frequency Range                                            DC-11GHz
VSWR          1.15 @DC-3GHz; ≤1.25@3-6GHz
Dielectric Withstanding Voltage  ≥2500V RMS,50Hz,at sea level
Working Vlotage   ≤1000V RMS,50Hz,at sea level
Contact Resistance    Center Contact ≤1mΩ   Outer Contact ≤0.25 mΩ
Mating —
Mechanical
Durability   Mating cycles  ≥500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Tri-alloy
Insulator   PTFE  —
Inner Conductor   Phosphor Bronze    Au
Coupling Nut   Brass  Tri-alloy
Gasket   Silicone Rubber   —
Ferrule  Annealed Copper  Tri-alloy
Environmental
Operating Temperature  _40 ℃- + 85  ℃
Weatherproof Rate       IP67
RoHS Compliant   Yes
